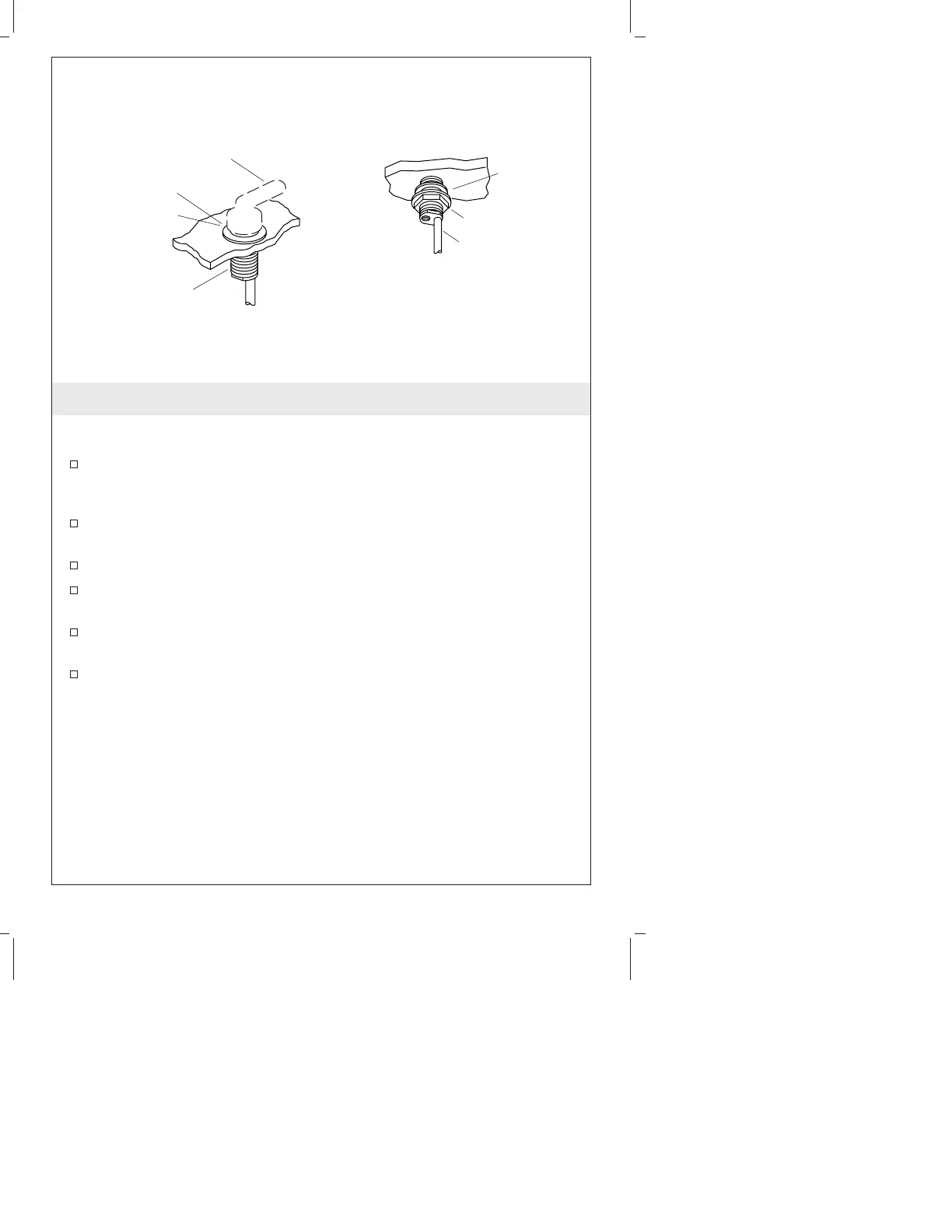

2. Handle Valve Installation
NOTE: The valve body marked ″Cold″ (with blue lettered tape
attached to the tube) should be installed to the right of the faucet.
Apply a bead of plumbers putty or other sealant to the underside
of the escutcheons according to the putty manufacturer’s
instructions.
From the top of the lavatory, insert the ″Cold″ and ″Hot″ valve
bodies into the mounting holes.
Install a washer and a nut onto the underside of each valve body.
Align the end bodies so the supply tubes fit evenly into the valve
body outlets.
While holding the valve bodies in place, securely tighten the
locknuts with a wrench. Do not overtighten.
Remove any excess putty or sealant.
Handle
Escutcheon
Apply Plumbers
Putty.
Valve
Body
Copper
Tube
Nut
Washer
1009772-2-B 4 Kohler Co.
