CARE AND MAINTENANCE
OPERATION INSTRUCTION
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc, which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
INSTALLATION
1434194-AN2-A 3
1434194-AN2-A 2

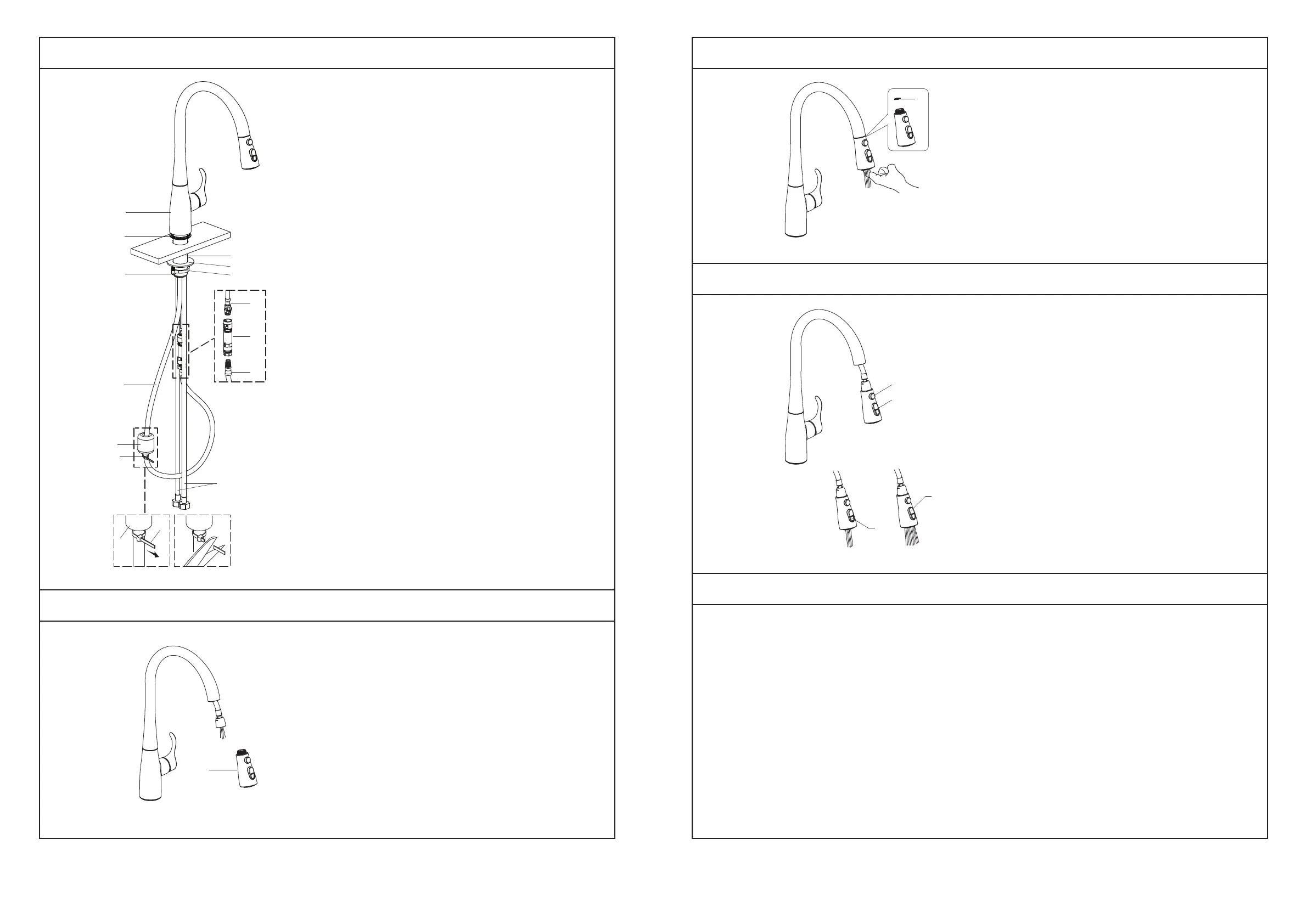

How to Install the Faucet
Slide the escutcheon(1) over the hoses and
shank(2) until it contacts the faucet(3) bottom.
From upside of the sink, insert the faucet assembly
into the mounting hole until the escutcheon bottom is
against the deck. Ensure the handle is on the right.
Partially thread two screws(4) into the threaded
ring(5). From underside of the sink, place the
washer(6) and threaded ring with two screws over
the shank(2). Position the faucet so that the spray
hose(7) is on the left, the spray hose and two supply
hoses(8) are symmetrical. Thread the threaded ring
onto the shank until the washer contacts the
underside of the sink. Tighten two screws(4) to
secure the faucet to sink.
Attach the hoses(8) to water supplies. The hose with
blue dot should be connected to cold water. The
hose with red dot should be connected to hot water.
Slide the weight(9) over the spray hose(7).
Tighten the connector(10) onto the spray hose,
and then install it to the outlet hose(11). Adjust the
weight to the appropriate position, check for smooth
operation, and secure it with a loose cable tie(12).
Turn on the faucet, rub the sprayhead nozzles to
dislodge debris.
To improve water flow, trun off the faucet. Discon-
nect the sprayhead. Remove and clean the
screen(14) inside the sprayhead.
Reinsert the screen and reconnect the sprayhead.
INSTALLATION CHECKOUT
Ensure that all coupling nuts are tight.
Ensure that the handle is in the off position.
Turn on the main water supply and drain, and check
for leaks. Repair as needed.
Remove the sprayhead(13). Run hot and cold water
about one minute to remove any debris. Shut off the
faucet. Reinstall the sprayhead.
13
1
4
7
9
12
12
9
8
3
5
2
6
11
10
7
14
Turn on the handle gently. Turn clockwise for cold
water, counter-clockwise for hot water.
If you want to use the sprayhead by hand, take the
sprayhead and pull out the hose.
Press different position A or B of the button(15),
you will get different water flow as shown. Press
and hold the button(16), it will stop water flow.
NOTE: Please pull it gently and do not draw out the
spray hose too long, or you may damage the hose
and connector.
A
B
16
15
