95-2 SERIES
11-29
1
STRUCTURE AND FUNCTION FUEL SYSTEM

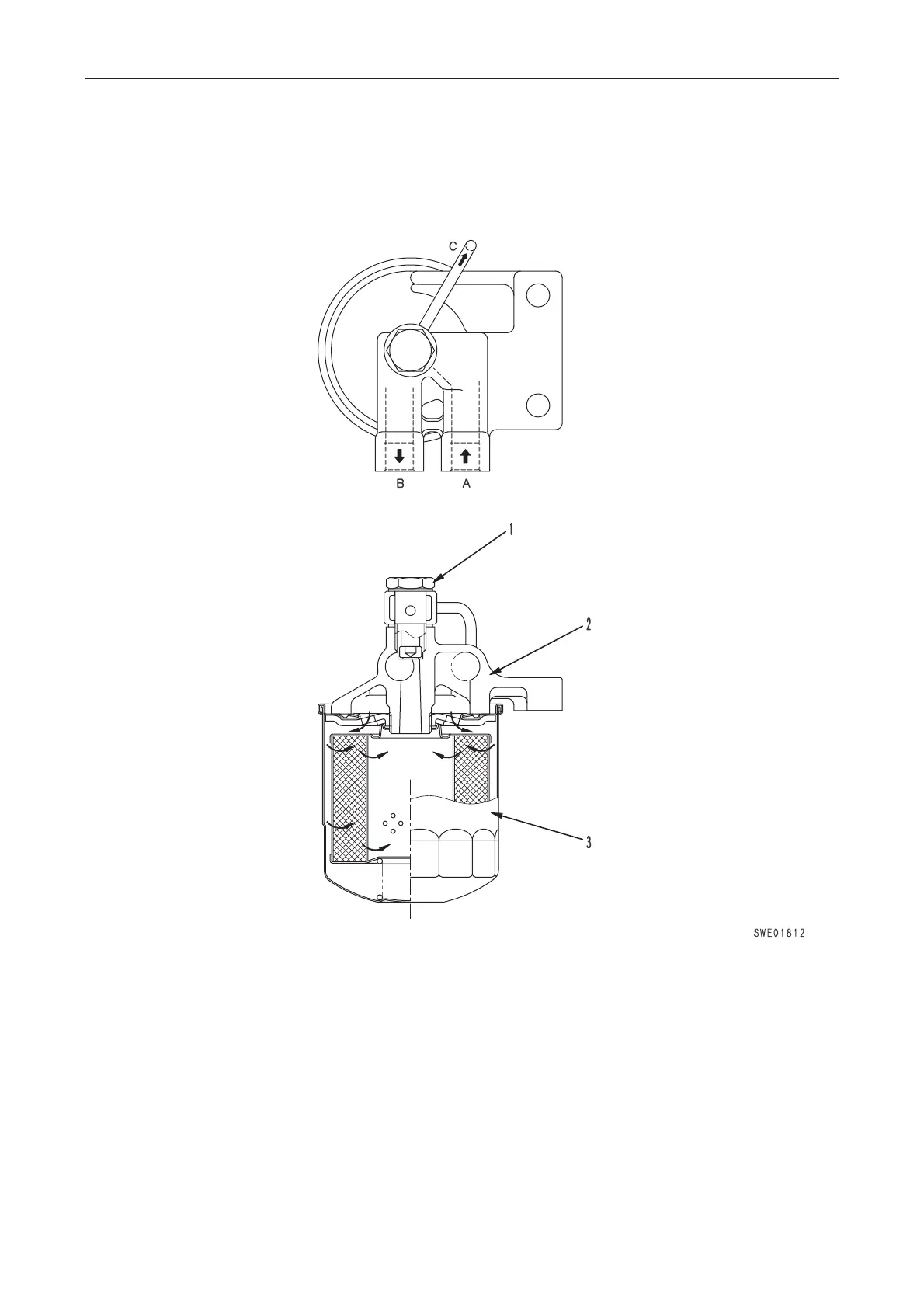

FUEL FILTER
1. Overflow
2. Filter bracket
3. Cartridge
A. Fuel inlet
B. Fuel outlet
Specification
Filtration area: 0.15 m
2
