Komatsu 4D95LE-2 - STARTING AND CHARGING SYSTEM ELECTRICAL CIRCUIT DIAGRAM

95-2 SERIES
11-36
1
STRUCTURE AND FUNCTION ELECTRICAL SYSTEM

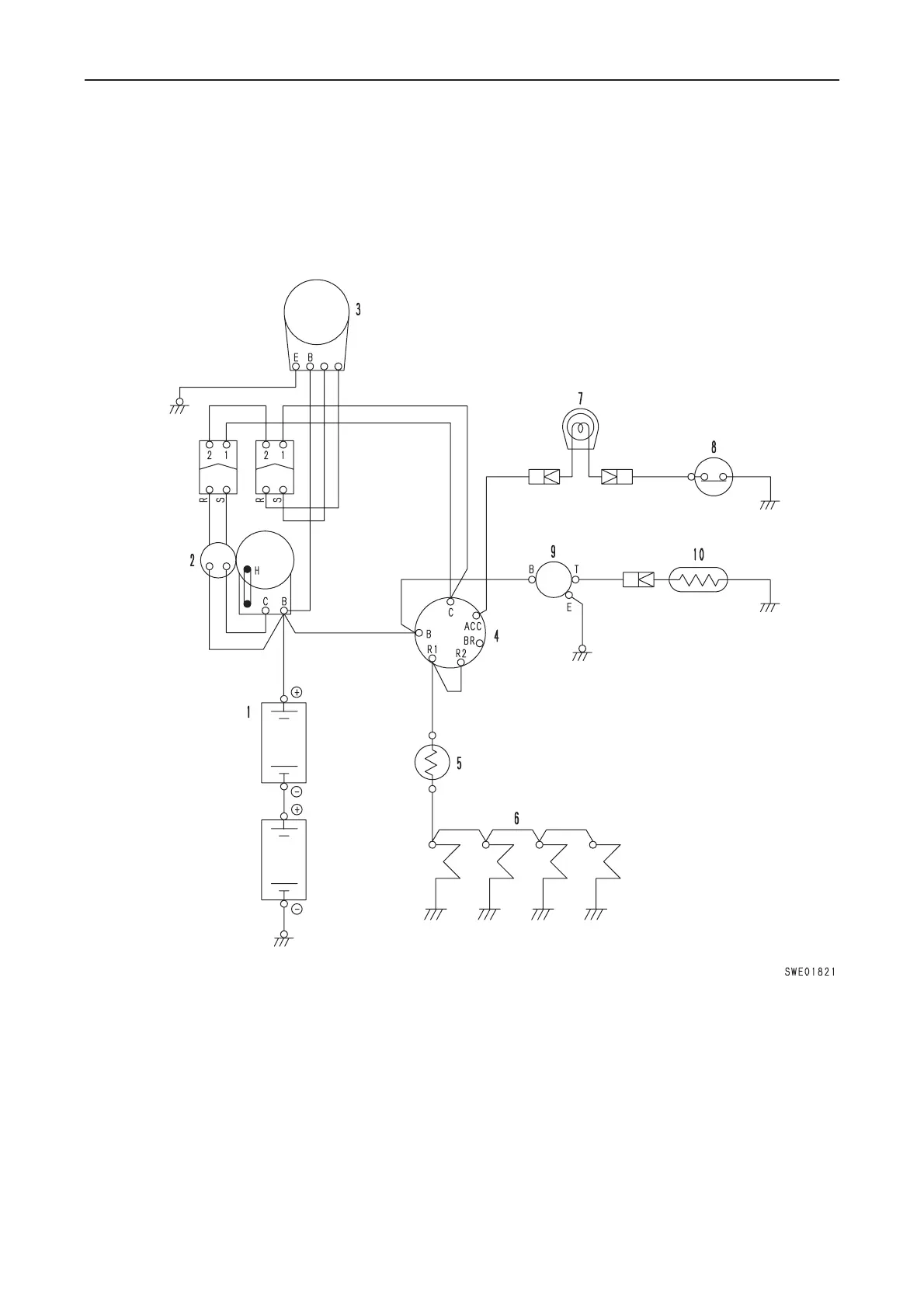

STARTING AND CHARGING SYSTEM ELECTRICAL CIRCUIT
DIAGRAM
4D95LE-2
1. Battery
2. Starting motor
3. Alternator
4. Starting switch
5. Glow signal
6. Glow plug
7. Oil pressure caution lamp
8. Oil pressure switch
9. Water temperature gauge (electrical type)
10. Thermo sensor
