95-2 SERIES
12-11

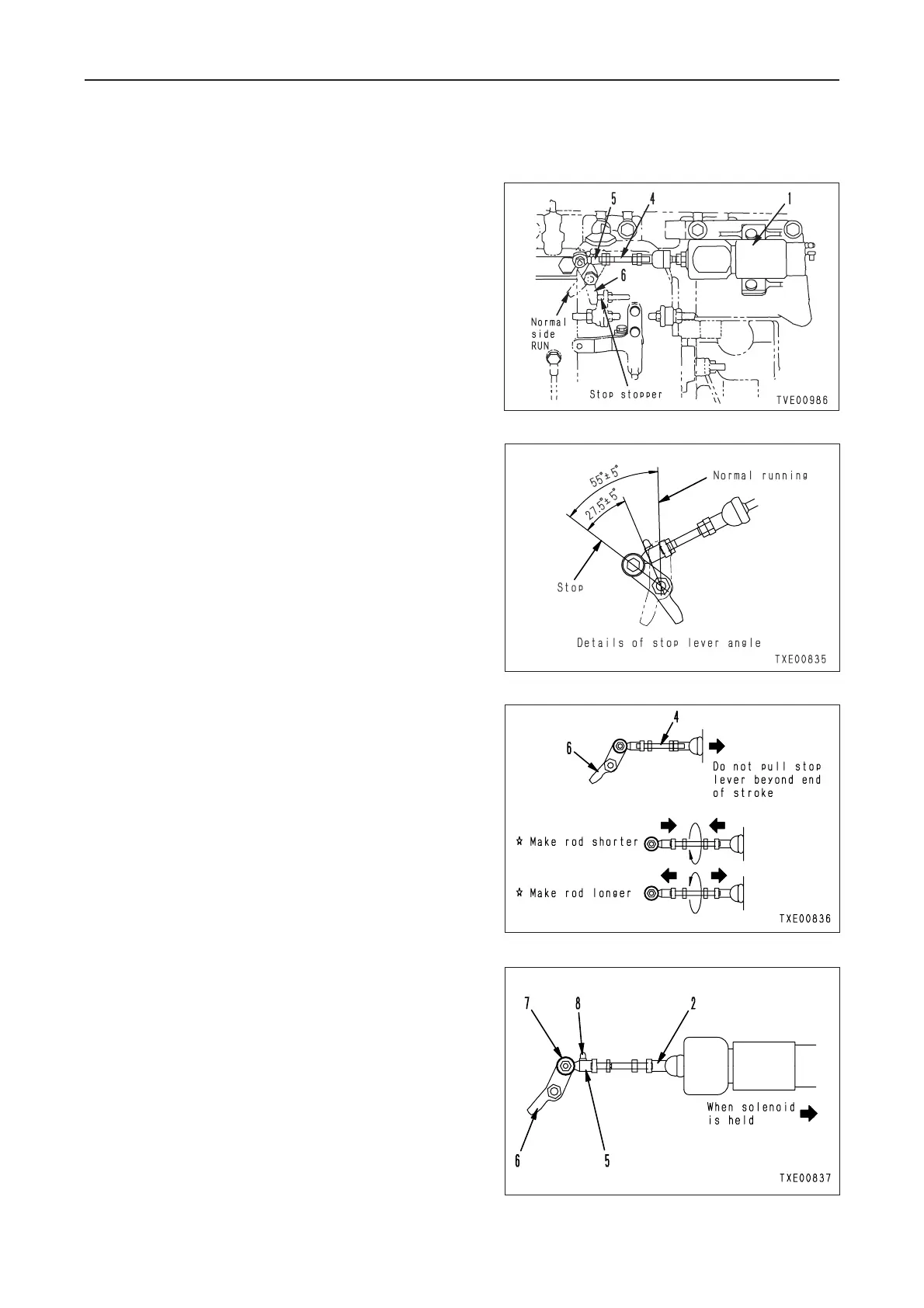

TESTING AND ADJUSTING ADJUSTING FUEL CUT SOLENOID
fl Stop lever (6) contacts the end of the lever
at the constant end. (Contacts inside the in-
jection pump)
fl Play: 0 mm
fl When adjusting the length of rod (4), do not
apply any excessive force to pull stop lever
(6) beyond the lever end.
fl The method for adjusting the rod length is
as shown in the diagram on the right.
5. Tighten nut (7) at the connection of stop lever
(6) and rod end (5), then install a split pin.
fl Install the rod end so that greasing port (8)
is at the top.
2 Rod end: Grease (G2-LI)
12-11
