3. Push lock type
q 95, 107, 114 engines
Example)
Fuel pressure sensor in common rail
(BOSCH-03)

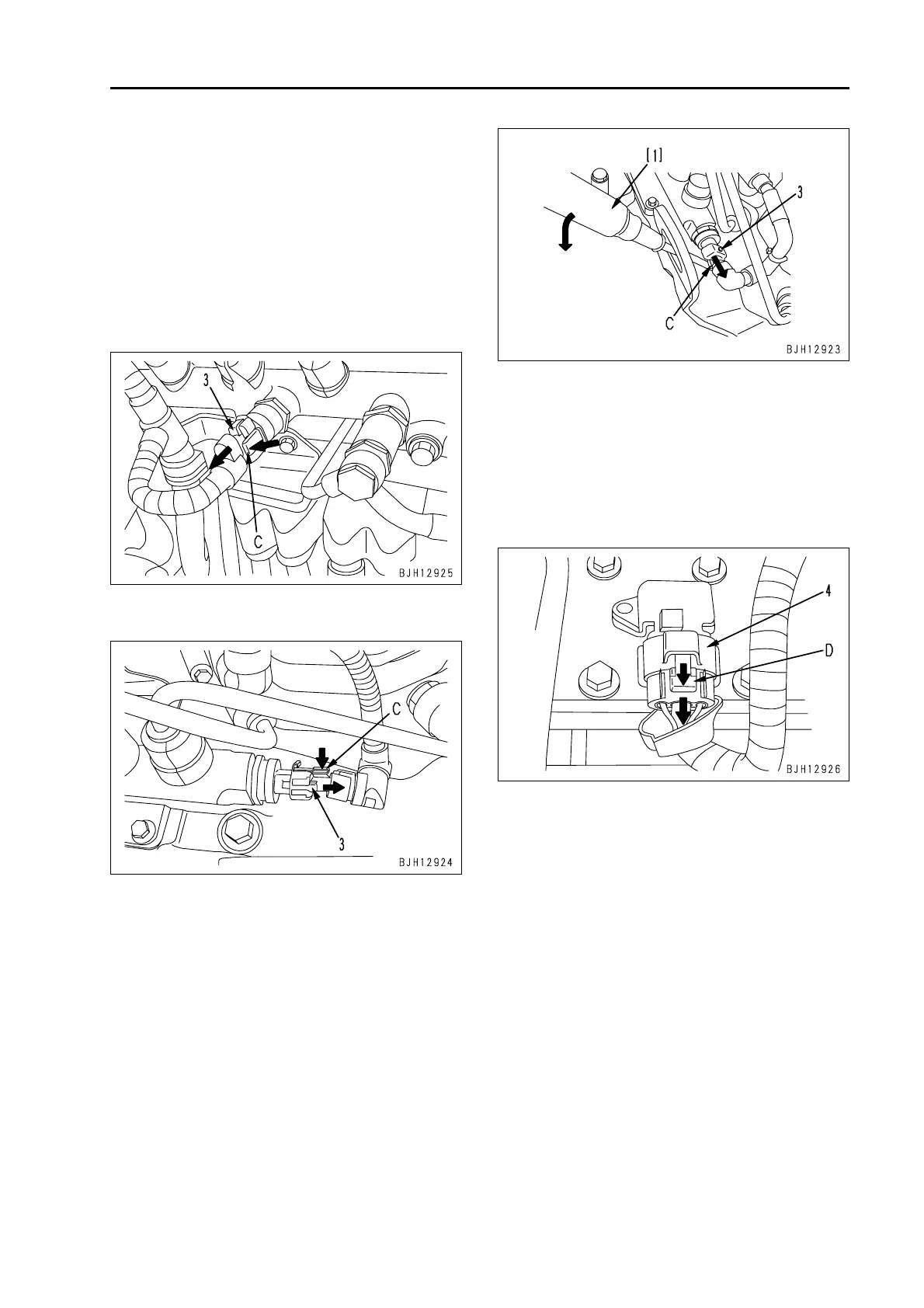

Disconnect connector (3) according to the fol-
lowing procedure.
1) While pressing lock (C), pull out connector
(3) in the direction of the arrow.
q 114 engine
q 107 engine
a If the lock is on the underside, use
flat-head screwdriver [1] since you
cannot insert your fingers.
2) While pressing up lock (C) of the connec-
tor with flat-head screwdriver [1], pull out
connector (3) in the direction of the arrow.
q 107, 114 engines
Example)
Intake air pressure/temperature sensor in
intake manifold
(SUMITOMO-04)
3) While pressing lock (D), pull out connector
(4) in the direction of the arrow.
To Next Page
