Komatsu D51PX-24 User Manual

When a hitch is equipped
When a ripper is equipped

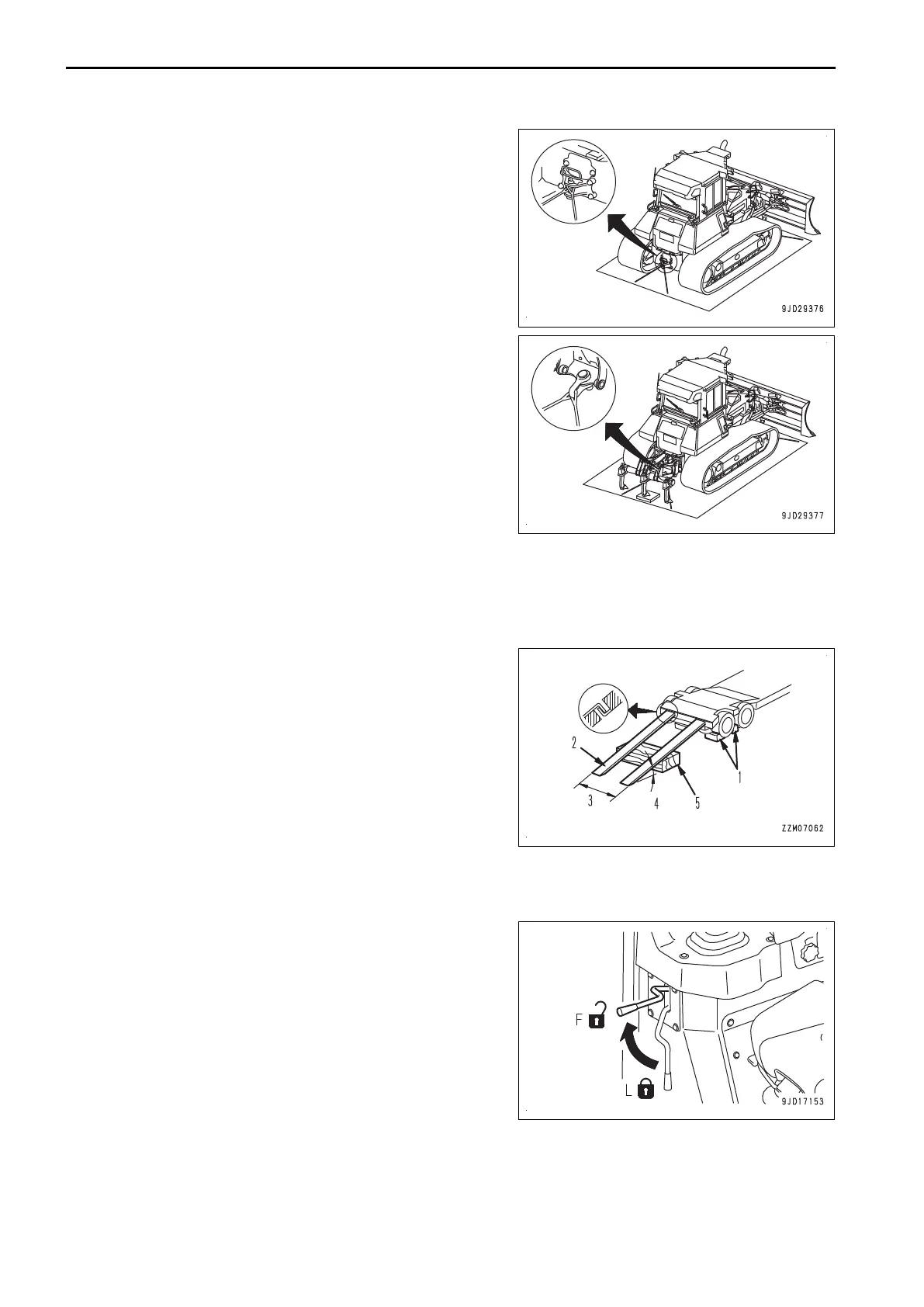

PROCEDURES FOR UNLOADING MACHINE
Perform unloading of the machine on a firm and level ground.
1.
Park a trailer on a firm and level ground.
Maintain a safe distance from the road shoulder
2.
Apply the brake of the trailer securely.
3.
Set chocks (1) to the tires to secure the trailer.
4.
Install ramps (2).
Set gap (3) between ramps (2) to match the distance be-
tween
the right and left tracks, and keep angle (4) to a
maximum of 15 °.
If ramps (2) bend appreciably under the weight of the ma-
chine, put wooden block (5) under the ramps to support
them.
5.
Remove the chains and wire ropes fastening the machine.
6.
Start the engine.
7.
When transporting the machine with the work equipment installed to it, raise the work equipment.
1)
Set the work equipment lock lever to FREE position
(F).
2)
Operate the blade control lever and raise the work
equipment.
TRANSPORTATION OPERATION
3-200

Komatsu D51PX-24 Specifications

General

Engine Model	Komatsu SAA6D107E-1
Net Power	121 HP (90.2 kW)
Operating Weight	19, 290 kg (42, 530 lb)
Blade Capacity	3.4 m³ (4.4 yd³)
Ground Clearance	400 mm
Track Gauge	1880 mm
