ATTACHMENTS, OPTIONS
HANDLING PAYLOAD METER II (CARD TYPE)
ESTIMATE DISPLAY
When the load changes in steps for each bucket loaded, the system estimates the total payload if one more
bucket is loaded, and flashes the appropriate lamp to prevent overloading.
The predicted load display and actual payload display are shown at the same time.
[Example: Case of HD325, expected number of bucket loads: 4]
1st bucket 8 tons
2nd bucket 8 tons (total: 16 tons)
3rd bucket 8 tons (total: 24 tons)
4th bucket 8 tons (total: 32 tons)

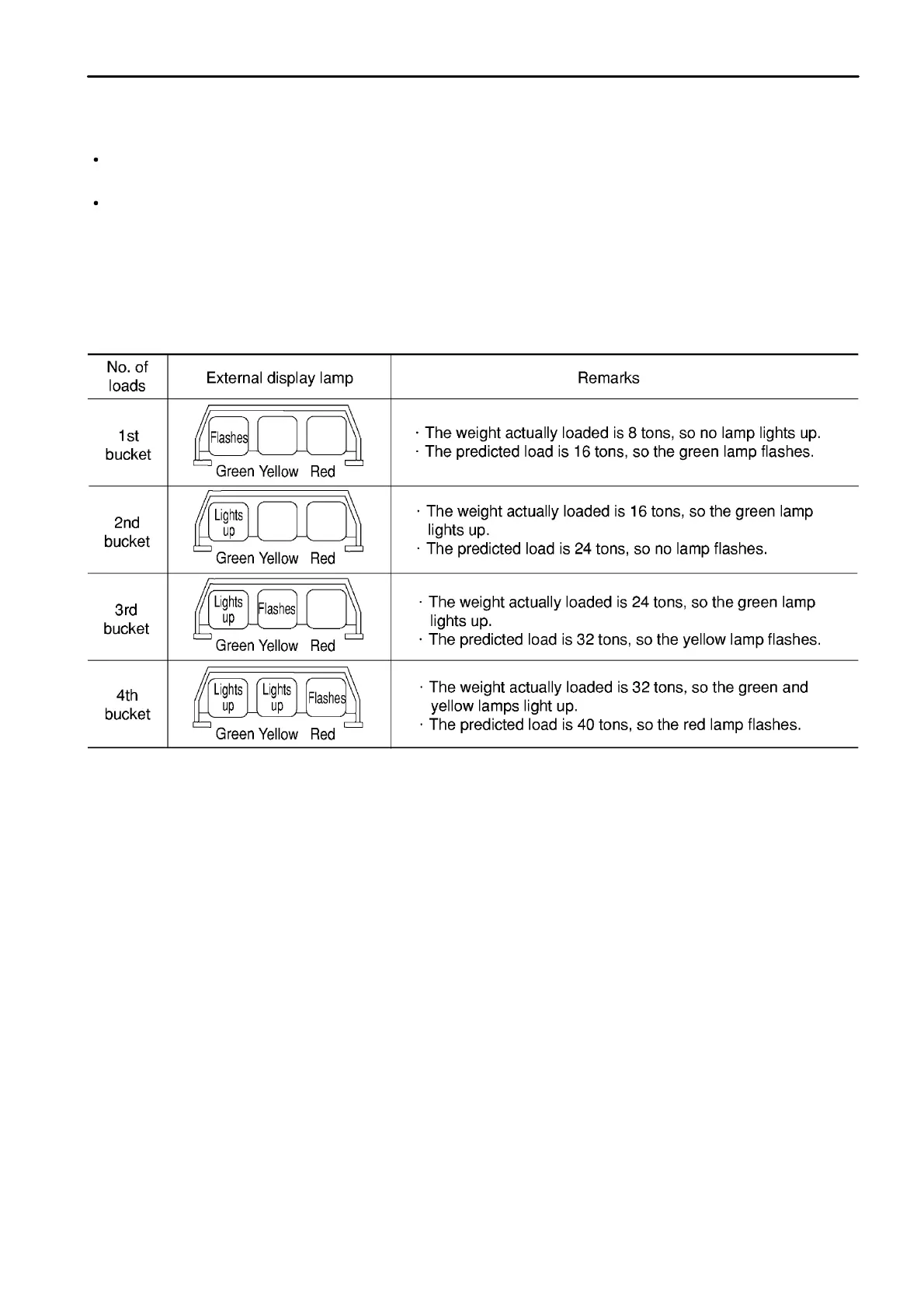

When the machine is loaded in this way, the external display lamps light up as shown in the chart below.
6 - 25
