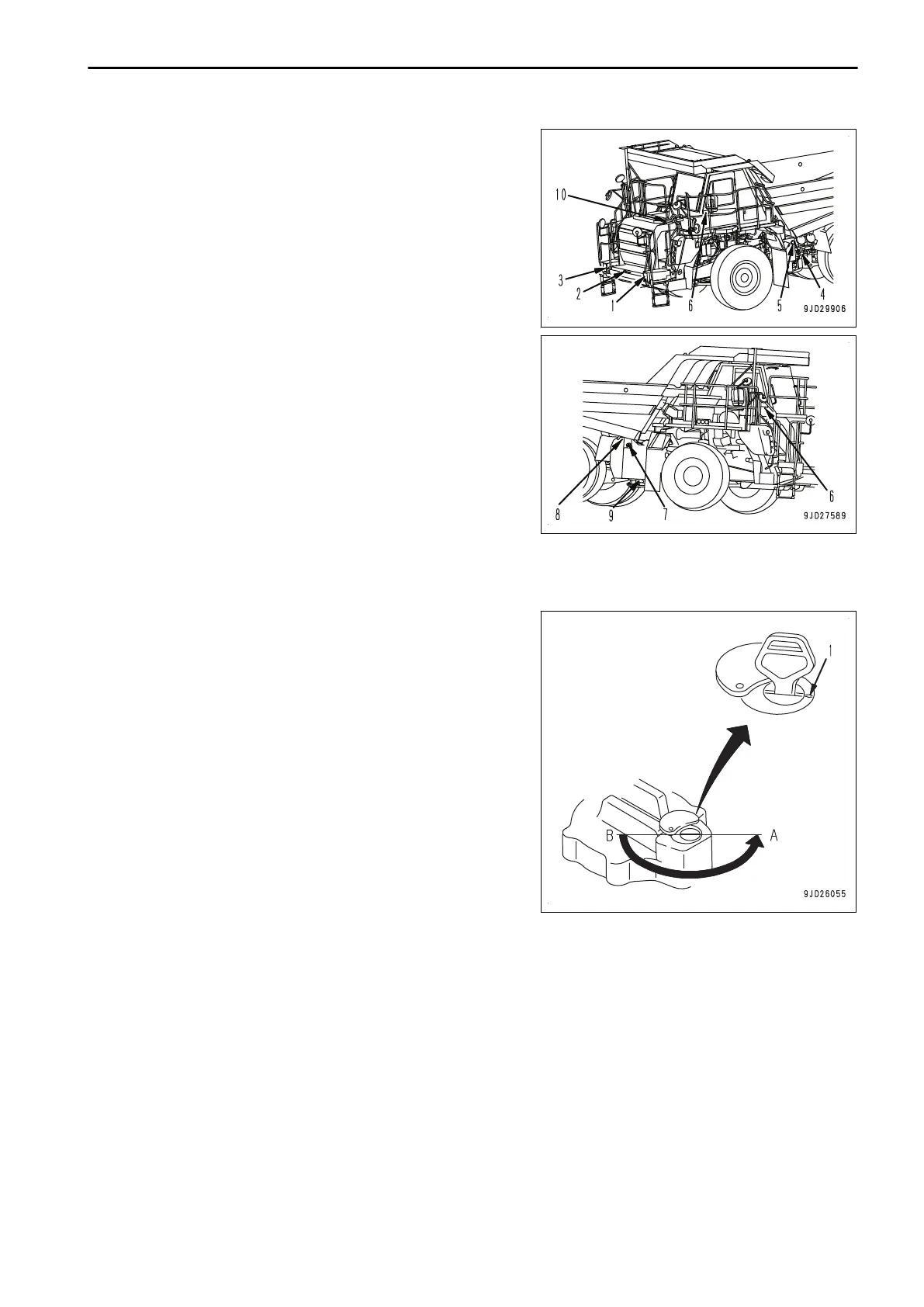

(1) Toolbox
(2) Battery box
(3) Battery disconnect box
(4) Transmission case oil filler port cap
(5) Steering and hoist oil tank filler port cap
(6) Operator's cab door (R.H. and L.H.)
(7) Fuel tank filler port cap
(8) DEF filler port cover
(9) Fuel tank drain cover
(10) Reservoir tank
REMARK
The starting switch key is a common key for (1) to (10).
METHOD FOR OPENING AND CLOSING FUEL FILLER PORT CAP
PROCEDURES FOR OPENING FUEL FILLER PORT CAP
1.
Insert the starting switch key into the key slot.
2.
Turn the starting switch key to “OPEN” position (A), and
then align the key slot with the match mark (1) of the cap.
Position (A)
OPEN
Position (B)
LOCK
3.
Turn the fuel filler cap slowly to unlock it.
“Click” sound is heard.
4.
Open the fuel filler cap.
PROCEDURES FOR LOCKING FUEL FILLER PORT CAP
1.
Screw in the fuel filler cap.
OPERATION MACHINE OPERATIONS AND CONTROLS
3-231
