FOREWORD METHOD OF DISASSEMBLING AND CONNECTING PUSH-PULL TYPE COUPLER
(14)
Type 3

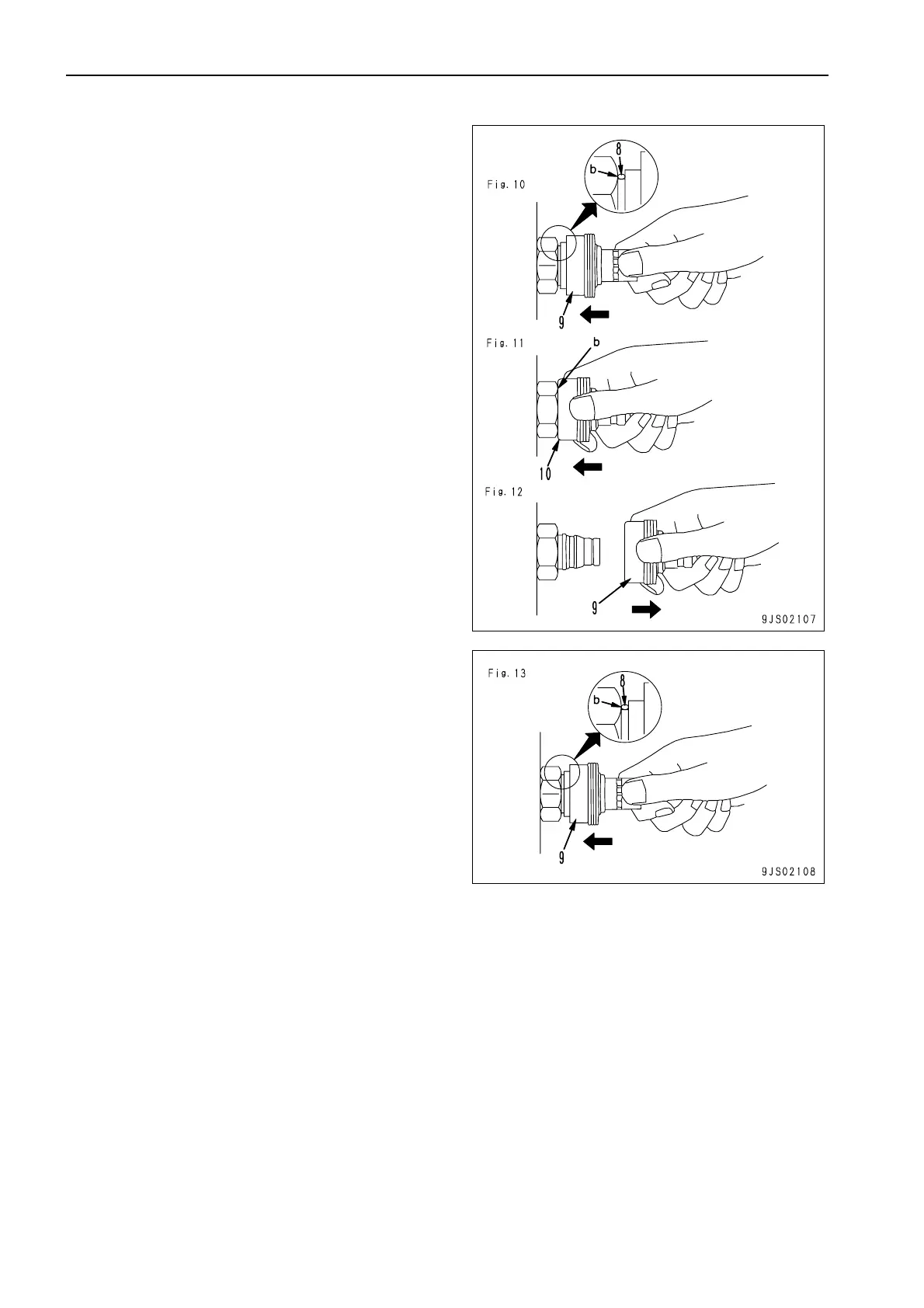

1. Disconnection
1) Hold the tightening portion and push body
(9) straight until sliding prevention ring (8)
contacts contact surface (b) of the hexago-
nal portion at the male end. (Fig. 10)
2) While holding the condition of Step 1), push
cover (10) straight until it contacts contact
surface (b) of the hexagonal portion at the
male end. (Fig. 11)
3) While holding the condition of Steps 1) and
2), pull out whole body (9) to disconnect it.
(Fig. 12)
2. Connection
• Hold the tightening portion and push body
(9) straight until the sliding prevention ring
contacts contact surface (b) of the hexago-
nal portion at the male end. (Fig. 13)
