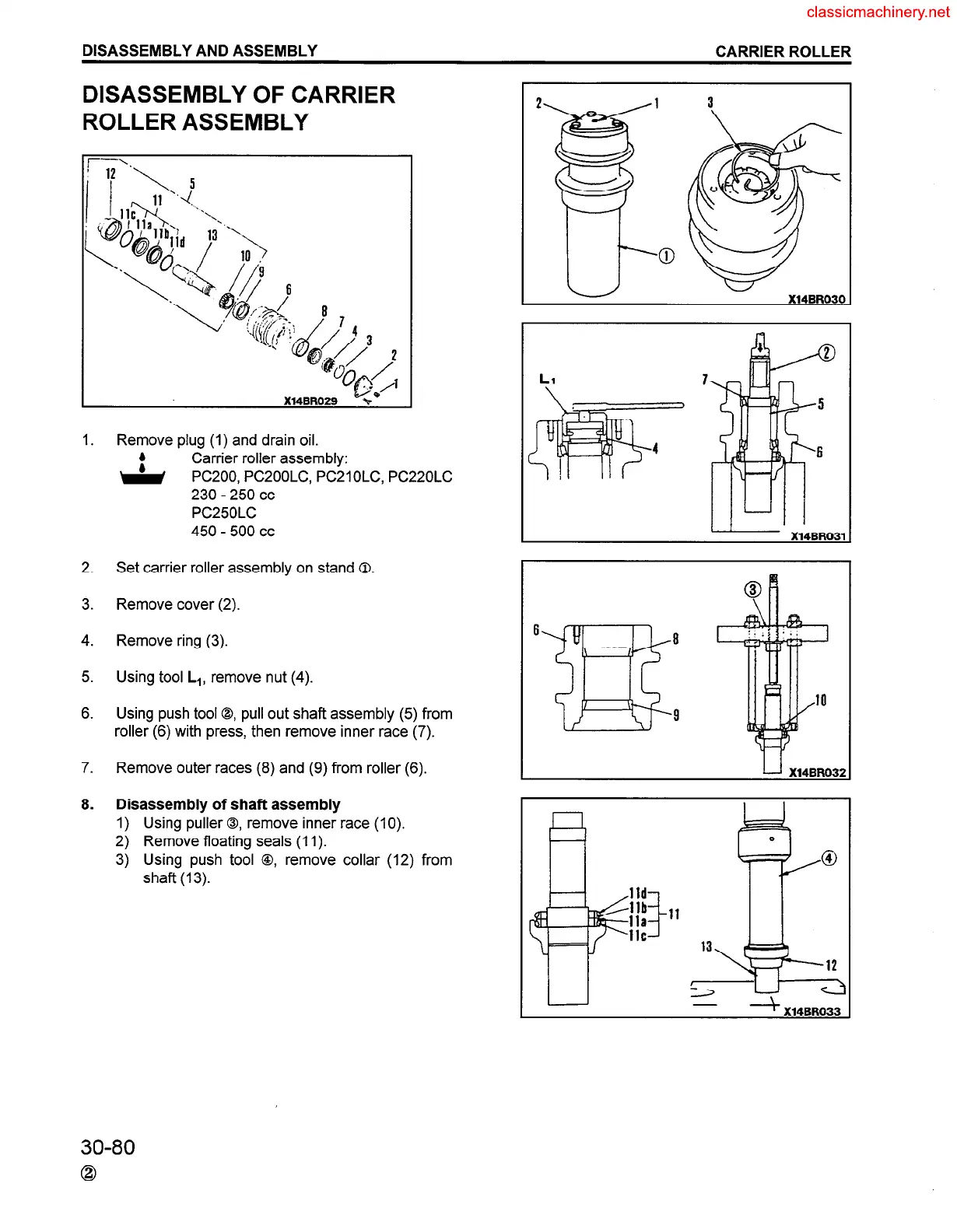

DISASSEMBLY AND ASSEMBLY
CARRIER ROLLER
DISASSEMBLY OF CARRIER
ROLLER ASSEMBLY
1. Remove plug (1) and drain oil.
:
Carrier roller assembly:
u PC200, PC200LC PC21OLC, PC22OLC
230 - 250 cc
PC25OLC
450 - 500 cc
- X14BRO31
2.
3.
4.
5.
6.
Set carrier roller assembly on stand 0.
Remove cover (2).
Remove ring (3).
Using tool L,, remove nut (4).
Using push tool 0, pull out shaft assembly (5) from
roller (6) with press, then remove inner race (7).
6
lIsE!l
8
9
7.
Remove outer races (8) and (9) from roller (6).
!-i X14BR032
8. Disassembly of shaft assembly
1) Using puller 0, remove inner race (10).
2) Remove floating seals (11).
3) Using push tool a,, remove collar (12) from
shaft (13).
X14BR030
30-80
0
