3.

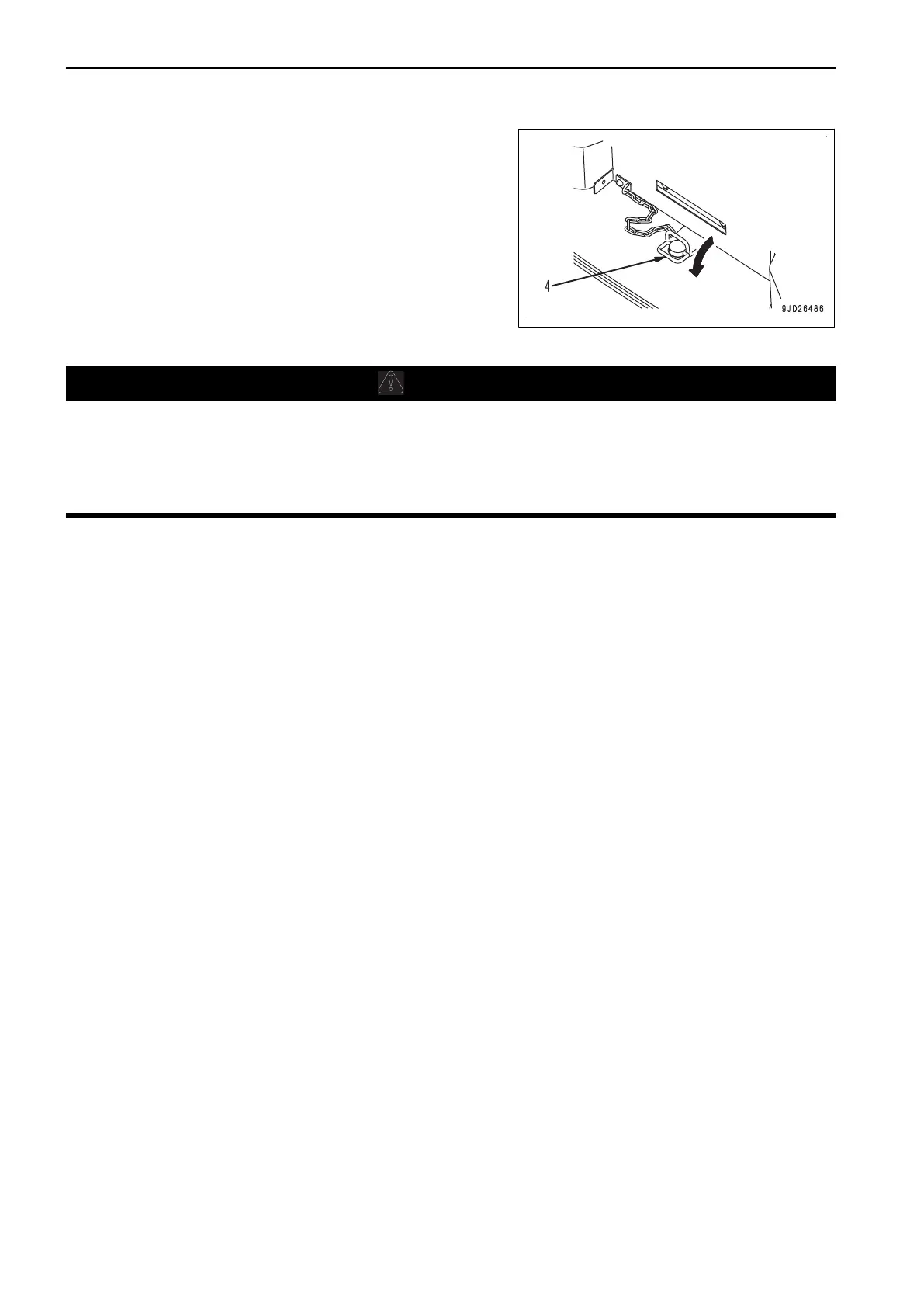

Fold the handle (4) of towing pin (1) to lock.
4.
When removing it, perform the procedure in the reverse or-
der.
BATTERY DISCONNECT SWITCH
CAUTION
• Do not operate the battery disconnect switch while the engine is running.
The large current generated by the alternator may burn the electric parts and cause a fire.
Operate the battery disconnect switch only when the engine is stopped.
• If the battery disconnect switch is turned to OFF position, always remove the switch key.
If someone turns the key to ON position carelessly, this is extremely dangerous.
NOTICE
• Keep the battery disconnect switch in ON position except the following cases.
• When the machine is stored for a long time (more than a month)
• When repairing the electrical system
• When performing the electric welding
• When handling the battery
• When replacing the fuse, etc.
• Do not turn the battery disconnect switch to OFF position while the system operating lamp is lit. If
the battery disconnect switch is turned off while the system operating lamp is lit, the data in the
controller may be lost.
• If this switch is turned to OFF position, all the electrical system is cut out and the functions of KOM-
TRAX stop. In addition, the time setting of the clock may be lost. In this case, set the information
again by referring to “CLOCK ADJUSTMENT”.
EXPLANATION OF COMPONENTS OPERATION
3-120
