USAGE NOTES / FUNCTION
A. HEIGHT
A. - Release the clamp on the clamping bracket,
A. - extend i.e. retract the extension tube,
A. - tighten the clamp.
A. - Depending on the placement of the feet and
A. - position of the extension tube the stand
A. - attains a height of between 620 and 1120 mm.

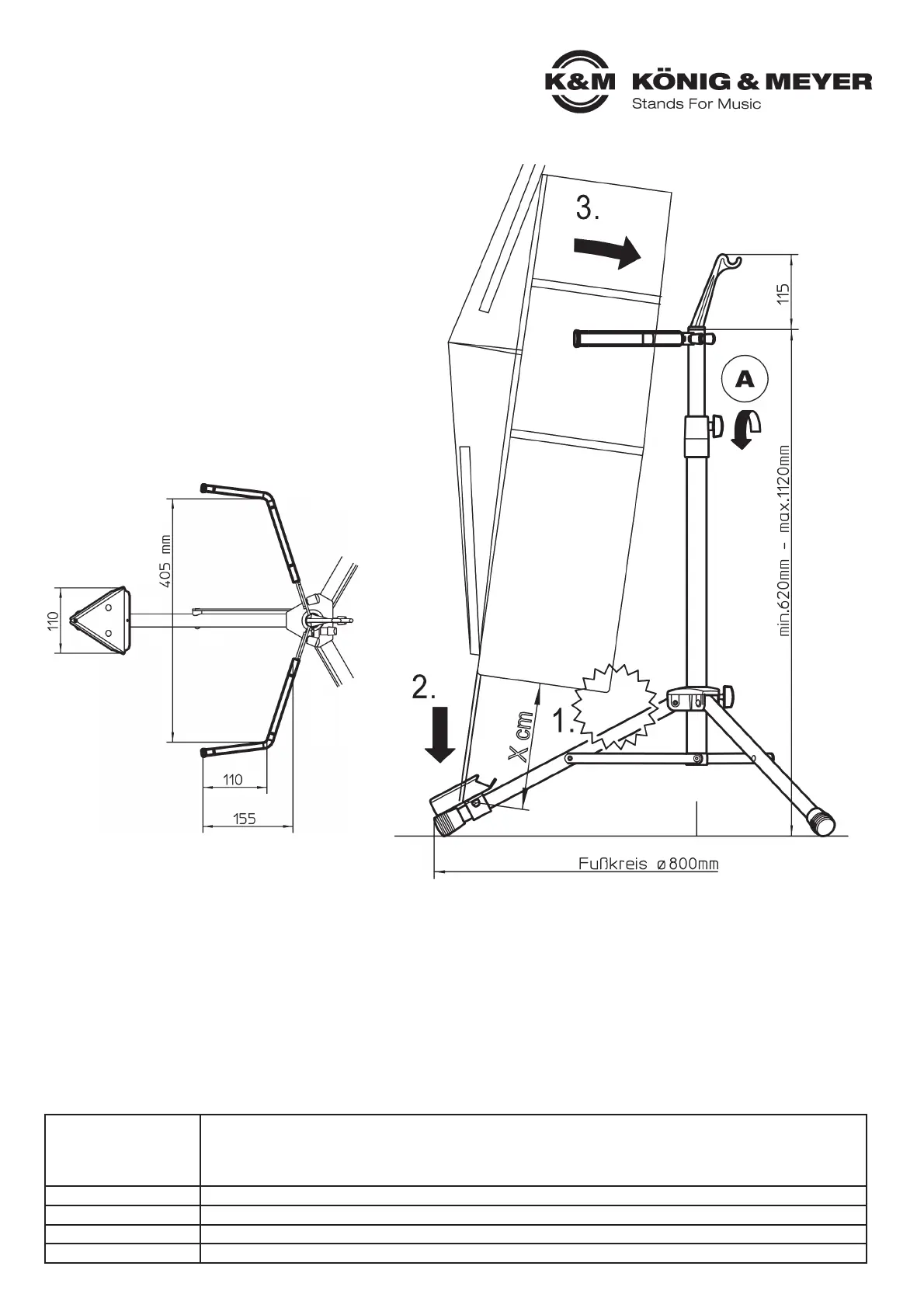

B. PLACEMENT OF THE INSTRUMENT
B. 1. Ensure that the end pin sticks out enough
B. 1. (X cm). This ensures that the safety distance
B. 1. distance between the instrument and the foot
B. 1. tube is kept.
B. 2. First place the end-pin into the pin cup and
B. 3. Lean the body of the instrument on the
B. 3. support arms.
CHECK, MAINTENANCE, CLEANING
- in the event of workstation maintenance pay attention to possible risks (wedging, workstation being knocked into)
- to care for the product use a damp cloth and a non-abrasive cleaning agent.
FAULT-FINDING (F) and REPAIR (R)
F: Stand is not stable R: Check the floor, adjust the feet/leg position, tighten the clamping screw (see Ill. 4 and 5)
F: Height of the stand is incorrect R: Adjust the extension tube (see Ill. 6)
F: Support arms do not support the instrument R: Tighten screw and spring (see Ill. 9)
TECHNICAL DATA / SPECIFICATIONS
Material
Tube, support arms, struts, cup: Steel, powder coating, black
Screws, rivets: Steel, galvanized
End caps, support arm covering: Thermoplastic elastomer (TPE), black
Brackets, guides, handles: PA
max. load Double bass
Dimensions Base circumference: max. 800 mm, Height: 620 mm - 1120 mm
Pack size, weight 175 x 130 x 605 mm; 2.5 kg
Box, weight 195 x 140 x 615 mm; 2.9 kg
