14100 Double bass stand
- stable, robust and collapsible to a small size, also excellently suited for use on the road
- rubber covered support arms that protect instruments
- height adjustable; variable from 620 - 1120 mm
- setup and disassembly without tools
SAFETY NOTES
- Carefully place the end pin into the pin cup and lean the
- body of the instrument on the support arms.
- Be sure that the surface is suitable and level.
- The fact that the product is collapsible and adjustable can
- result in the risk of pinching/wedging of your fingers;
- Careful and attentive handling during setup, operation, and
- disassembly is indispensable.
-The end caps are made of high quality materials and to the
- extent technically possible free of softening agents; for the
- protection of very delicate floors (possibly certain wood
- floor types) a slip resistant pad should be used, if needed.

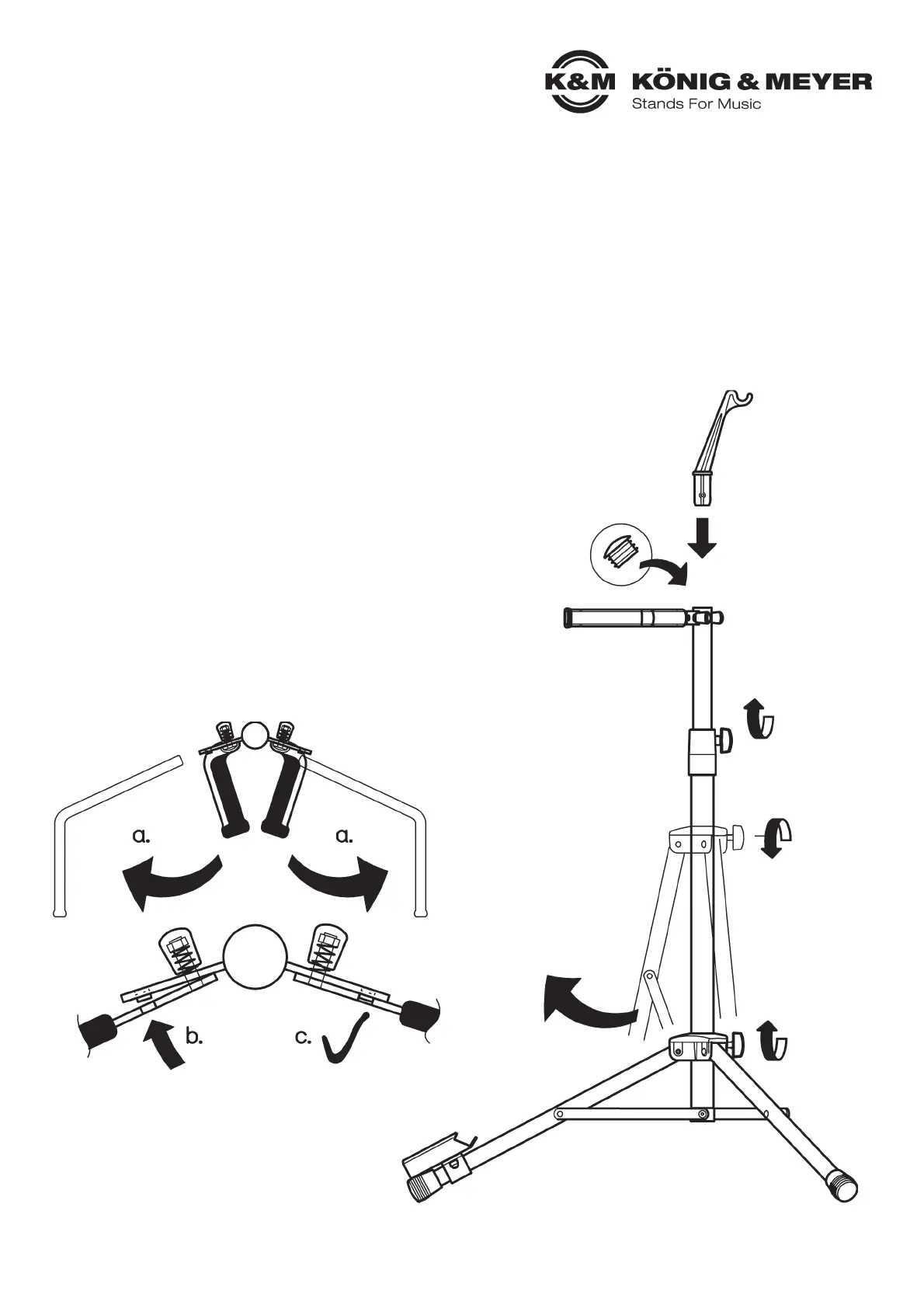

SETUP INSTRUCTIONS (1 - 10)
1. Take the stand out of the box
Thank you for choosing this product. The instructions provide directions to all of the important set up and handling steps. We
recommend you keep these instructions for future reference.
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
14100-011-55 Rev.08 03-80-292-00 10/15
9 a. Flip the support arms up
1 b. Align the knobs
1 c. Allow the knobs to
1 c. click into place
2. Loosen the screw
5. Tighten
5. the screw
4. Best stand stability is provided when the struts
4. are as level as possible
6. Adjust the height
6. of the extension tube
7. Place the bow holder into the
7. extension tube as far as it will go
8. If the bow holder is not
8. needed, place the cap on
8. the tube
10. Disassembly is
10. performed in
10. reverse order.
3. Place the feet
3. in an outward
3. direction
