USAGE NOTES / FUNCTION

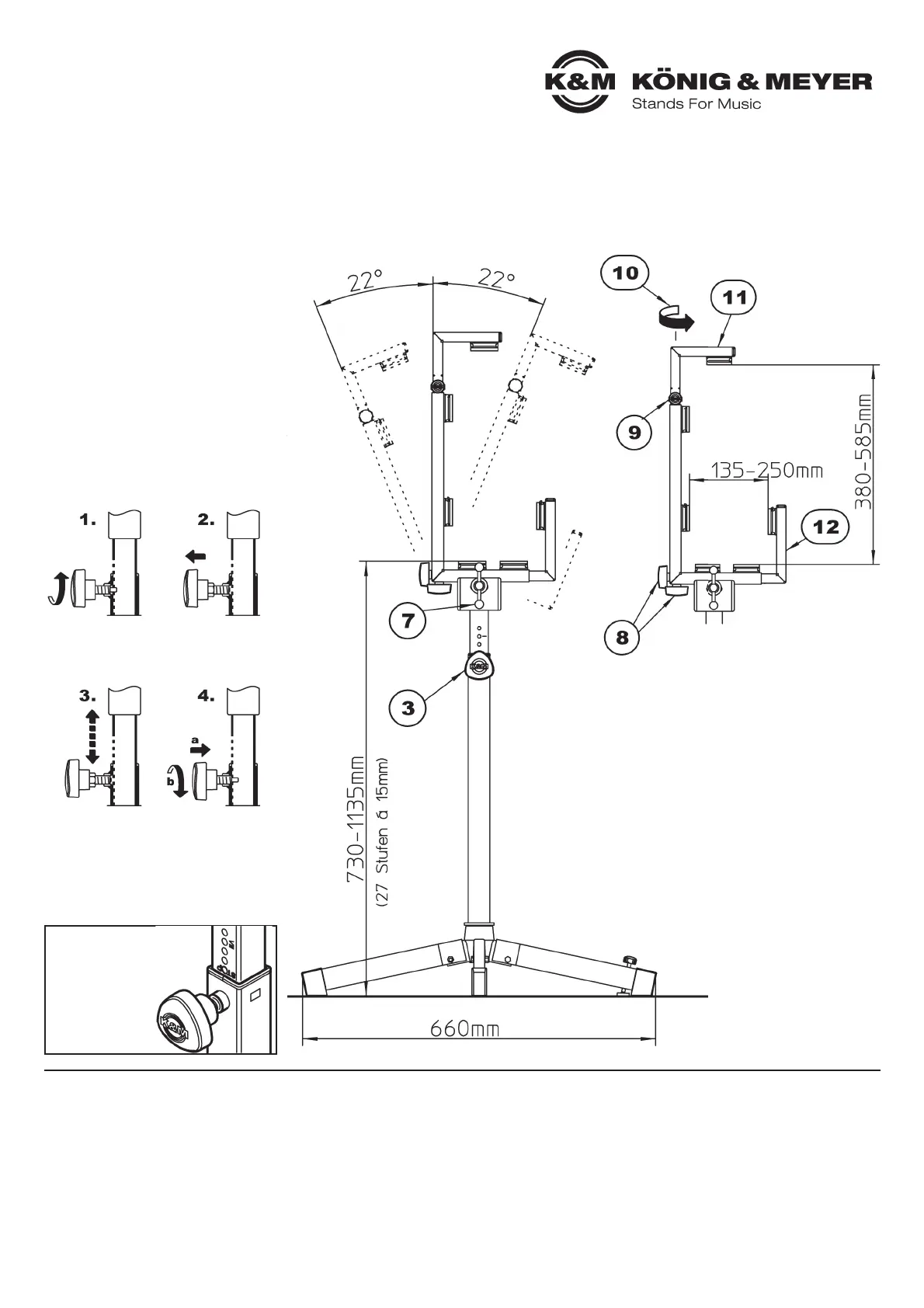

DIMENSIONS
ANGLE ADJUSTMENT
CHECK, MAINTENANCE, CLEANING
HEIGHT ADJUSTMENT
The drill holes on the exten-
sion tube are marked; this
makes it easier to choose
the desired height when
setting up the stand.
The STOP mar-
king shows the
maximum extension.
The angle adjustment
of the instrument is
limited to ±22°, i.e.
a.
there is space for
individual adjustments
b.
the stand is protected
from being inadvertently knocked over
For this, release the locking handle,
place the holder 7 at the desired angle,
click the locking handle back into place.
- If maintenance is needed, pay attention to possible risks
- To care for the product use a damp cloth and a non-abrasive cleaning agent
FAULT-FINDING (F) and REPAIR (R)
F: The stand is not stable:
F: B: Check surface and adjust accordingly, if needed tighten the leg and tube screws and if needed adjust the end caps.
F: Holder is unstable:
F: B: Tighten the locking handle.
F: The instrument is not stable:
F: B: Check the accordion dimensions to ensure they are suitable (see Technical Information); if needed tighten the holder screws.
Loosen the Catch/
Clamp handle 3 a bit
Extension tube -
extend or collapse
Place the security
bolt in the desired
drill hole and tighten
the catch/clamp
handle 3
- Prior to placing the accordion into the
- stand by turning the catch/clamp handle 8
- preset the distance of the support arms
- 11, 12 for height and depth.
- Loosen the knurled screw 9 and turn
- support arm 11 to the side.
- Securely hold the instrument and place
- it into the holder.
- Turn the upper support arm 11 back and
- secure the instrument by tightening the
- lower catch/clamp handle 8.
- Then tighten the back catch/clamp
- handle 8 to place and secure the front
- and the back of the instrument via
- support arm 12.
PLACE THE ACCORDION
Pull the handle until
the security bolt is no
longer in the drill hole
