USAGE NOTES / FUNCTIONS

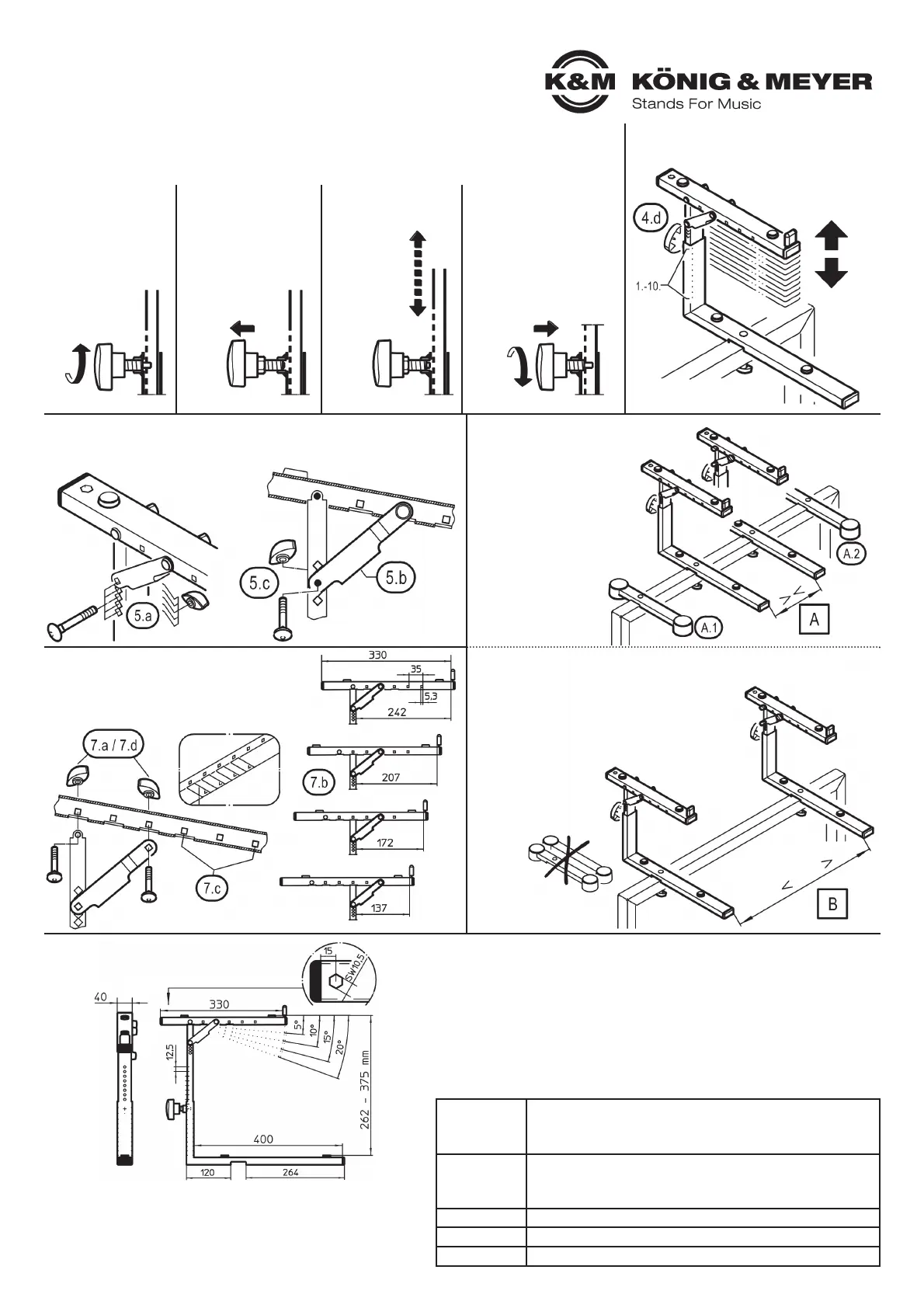

4. HEIGHT ADJUSTMENT
PROCEDURE
FAULT FINDING (F) and REPAIR (R)
F: Stacker wobbles B: Tighten spring-loaded clamping knob 1.c
B: Tighten the keyboard stand’s screw
B: connections 3.b ,c, d
F: The keyboard B: Set the support arms 1 to the same height,
F: wobbles B: same depth and the same angle.
B: Correct the position of the support rubbers.
5. INCLINATION ANGLE: 0° - 5° - 10° - 15° - 20°
7. SUPPORT ARM DEPTH: 4 Positions
8. DIMENSIONS
4.a
Loosen the spring-
loaded clamping
knob 1.c somewhat
4.b
Pull the handle
until the locking
bolt is no longer
in position
A
CLOSE TOGETHER
e.g. for a laptop
- the 18810 Omega
- support arms A.1, A.2
- remain attached to the
- stand
B
FURTHER APART
e.g. for a second keyboard
- The 18810 Omega stacker X
- can be removed if required
7.a Remove both screws from the support tubes
7.b Select a different position (4 possible positions)
7.c NOTE: Distance is always two drill holes
7.d Tighten support tubes again
Height adjustment:
- 10 positions
- Distance: 12.5 mm each
4.c
Adjust the
support
arm up
or down
4.d
Place the lock bolt in
is the desired hole
and let it click into
place then tighten
the spring-loaded
clamping knob
The height of the support
arms can be adjusted in
10 positions, each step is
12.5 mm.
6. STACKER DISTANCE
6. (SUPPORT ARMS)
TECHNICAL DATA
Material
Tubes, struts: Steel, powder coating, black
Screws, discs: Steel galvanized
Plastic parts: PA, TPE, black
Dimensions
Stacker: Width: 40 mm
Auflage: Depth: bottom 400 mm / top 330 mm
Auflage: Height: 262 - 375 mm, Distance: 122 - 732 mm
Weight 4.2 kg
Packaging L x W x H: 470 x 325 x 90 mm
Accessories 18821 Stacker for 3. level; 18819 Controller key. tray
CHECK, MAINTENANCE, CLEANING
- in the event of maintenance pay attention to possible risks
- To care for the product use a damp cloth and a n
- on-abrasive cleaning agent
5.a Disassemble screw connection
5.b Align the U-strut as desired (5 variants)
5.c Place the carriage bolt
through the U-strut and tube
and secure it with a
clamping nut
(Connection to 3. level, K&M 18821)
support tube
from below
