18811 Stacker for 18810 »Omega«
- Ideal for a second keyboard or laptop
- Weight bearing load of the upper stacker: 25 kg
- Expandable for third level (K&M 18821)
- Provides 10 different height adjustment positions
- Stacker width is adjustable
- 5 different angle adjustments (0°-5°-10°-15°-20°)
- Dimensions: Height: 262 - 375 mm, width: 122 - 732 mm,
- depth: 400 mm bottom, 330 mm top
SAFETY NOTES
- Tighten the catch/clamp screw 1.c
- Ensure that it is properly connected to the stand
- Ensure that the support arms 1.a are always set
- to the same height, depth and angle
- Ensure that the rubber rests 1.f are placed such
- that the keyboard is securely in place
SET UP INSTRUCTIONS

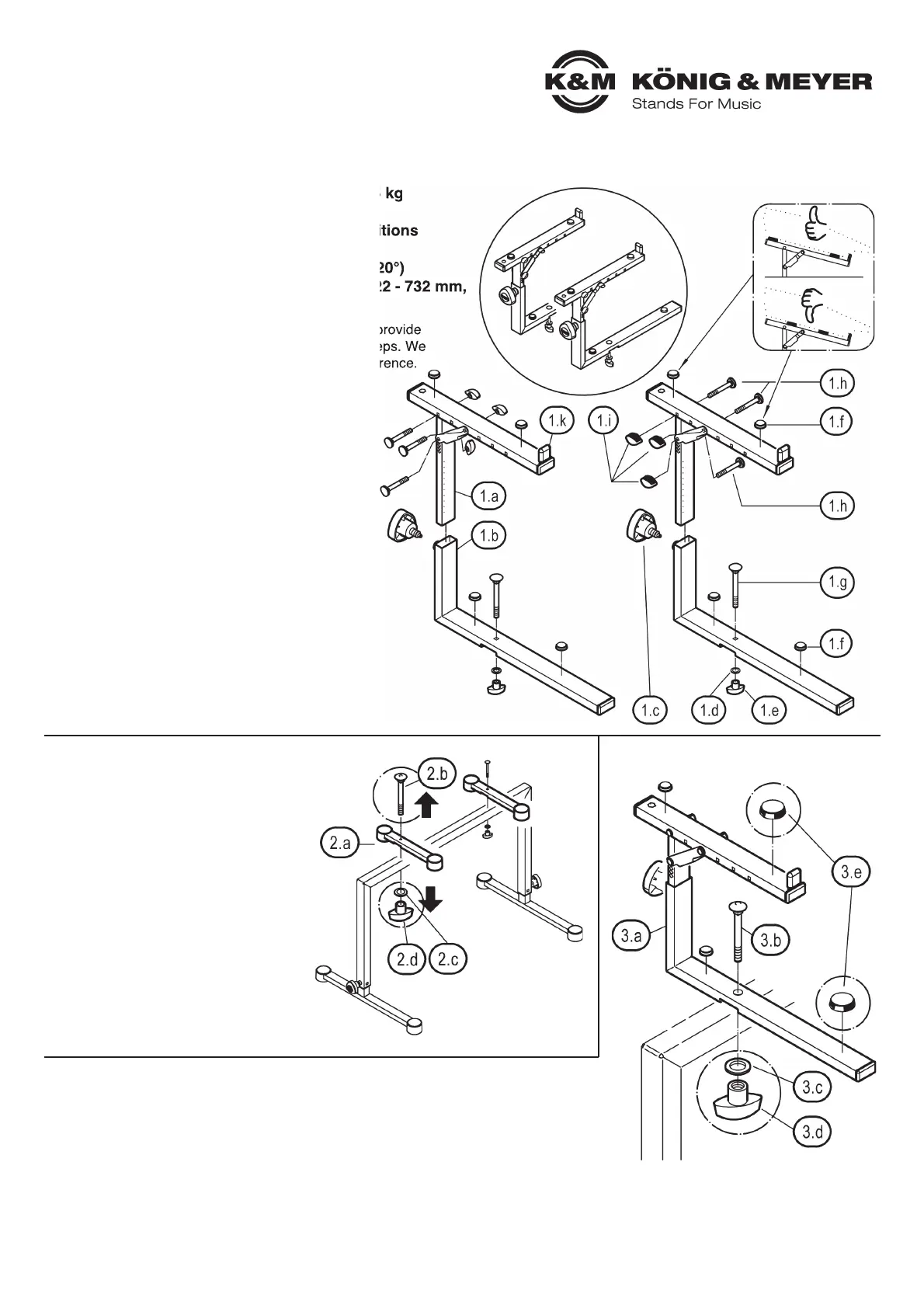

1. COMPONENTS
a Support tube (2x)
b L-Base tube (2x)
c Spring-loaded clamping knob (2x)
d Washer ø 6.4 mm (2x)
e Clamping nut M6 (2x)
f Rubber rests, adhesives (8x)
g Carriage bolt M6 x 65 mm (2x)
h Carriage bolt with washer M5 x 30 mm (6x)
i Clamping nut M5 (6x)
k Rubber cover (2x)
2. »OMEGA« PREPARATIONS
(also see Section 6.
STACKER DISTANCE (SUPPORT ARMS))
A Support arms CLOSE TOGETHER
A (e.g. Laptop):
A - Do not disassemble the support tubes 2.a
A - because they support the equipment.
B Support arms FURTHER APART
B (e.g. for second keyboard)
B - Support tubes 2.a may not be
B - needed - it is better to disassemble.
B - Remove the carriage bolts 2.b, U disks
B - 2.c and Clamping nuts 2.d.
3. ASSEMBLY
Attach stacker 18811 to the keyboard table
- Select the desired distance for both support arms
- Screw L-base tube 3.a using a carriage bolt 3.b, U disk 3.c and clamping nut 3.d
- to the vertical tube.
- The second support tube is to be assembled in the same manner.
- NOTE: both support tubes must be set at the same height and angle.
- Adhere the rubber rests 3.e as appropriate.
Thank you for choosing this product. The instructions provide
directions to all of the important setup and handling steps. We
recommend you keep these instructions for future reference.
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
18811-000-55/76/91 Rev.06 03-80-307-00 4/18
