30 The soft moss rubber protects are effective protectors for
30 the surface of the tablet and also prevent slip
31 The upper clamping jaw can be extended widthways, e.g.
31 to access connections.
31 In general, the jaw should extended as wide as possible.
How to clip in the tablet is described in G.

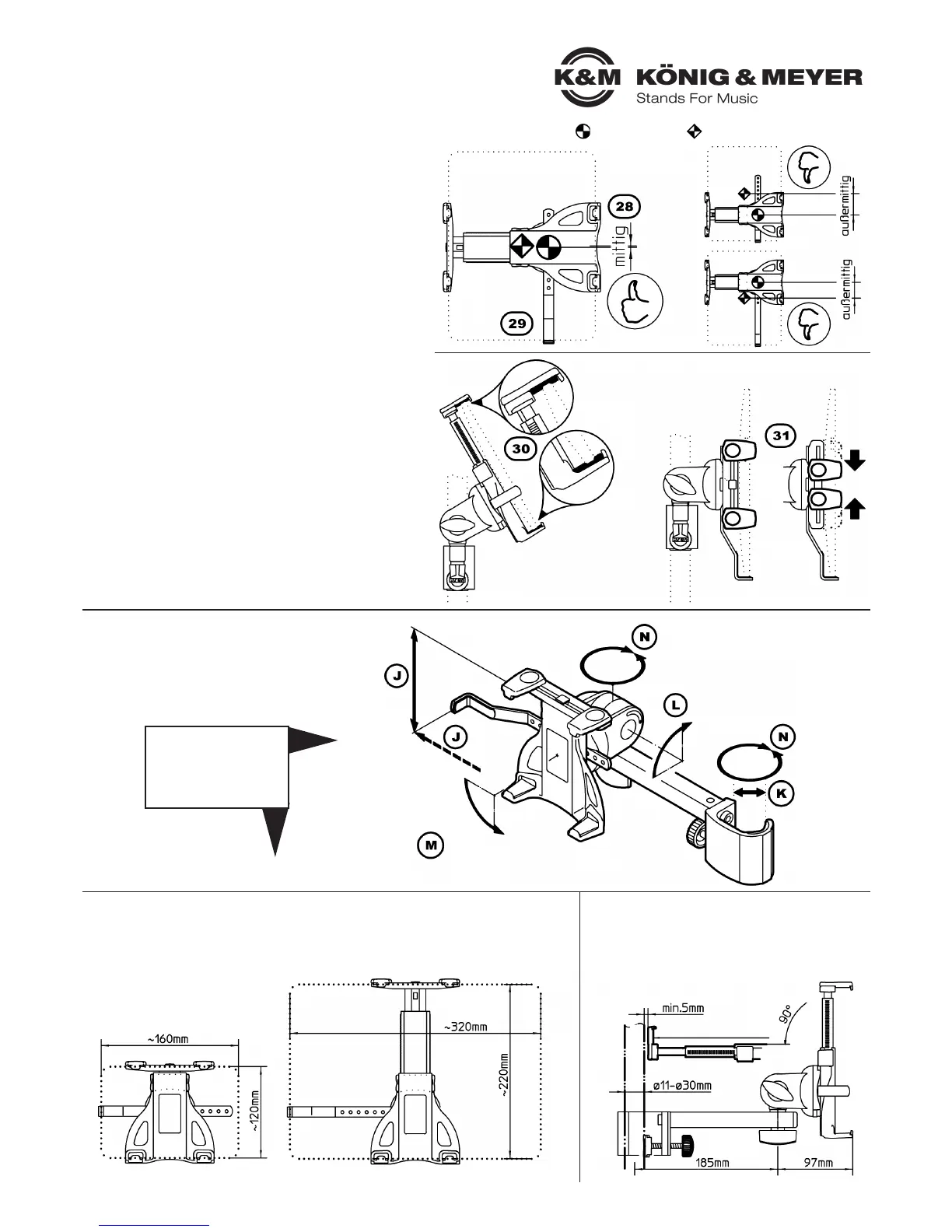

19740 Tablet PC Holder
USER INSTRUCTIONS
ADJUSTING THE TABLET CRADLE
First the tablet must be removed from the cradle
Suitable for tablet PCs with a screen size 6 to 10.1"
Ensure the cradle tension is adjusted correctly so the tablet
is held securely (C6-8)
28 Position the tablet in the holder centrally and properly
28 balanced
29 The guard arm must always touch the side of the tablet
29 and be under the tablet as additional security when the
29 tablet is positioned in the portrait format!
J TABLET SIZES
Range:
- min. 160 to max. 320 mm width
- min. 120 to max. 220 mm height
K TABLET HOLDER & STAND
For stands with a tube diameter of 11 - 30 mm
Can always be flipped 90°.
fulcrum/centre point: - of the holder, - of the Tablet PC
DIMENSIONS
FUNCTIONS
SETTINGS (J-N)
height:
120-220 mm
width:
160-320 mm
adjustment:
tablet holder:
adjustment:
supporting arm:
holder fully extended
tube-ø:
11 - 30 mm
360°
all around
360°
all around
format:
portrait-landscape
90°-swivelling
tube
