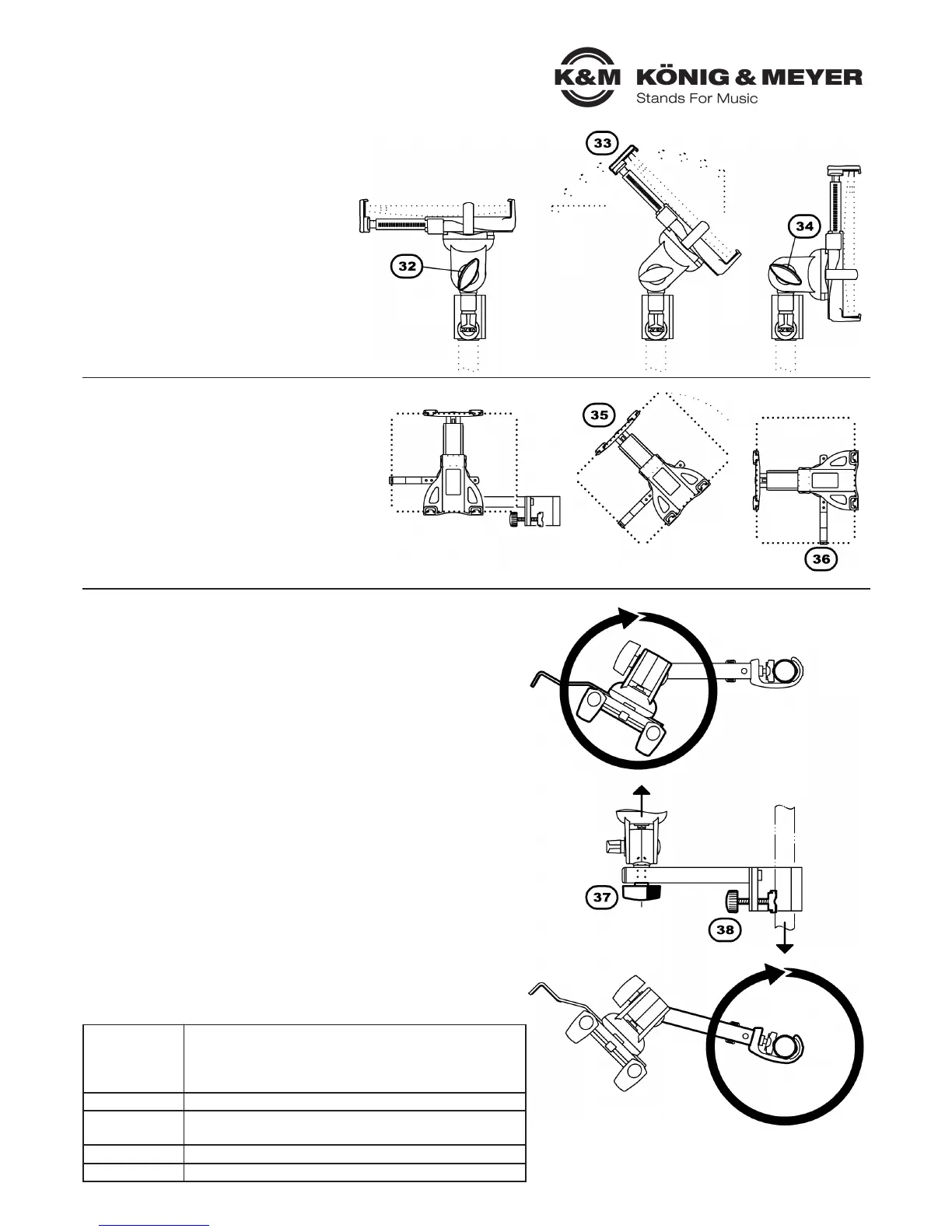

ADJUSTMENT
The tablet does not have to be removed to
adjust the TILT, FORMAT or DIRECTION of
the tablet.
L TILT
The tablet can be fixed in any position between
portrait and landscape format.
32 Hold the tablet and loosen the wing nut
32 slightly
33 Tilt the tablet as required and
34 Re-tighten the wind nut
M FORMAT
The cradle can be moved through 90°.
35 Hold the tablet and turn to portrait or landscape
35 format - or position at an angle!
35 Invisible stops in the cradle prevent the cradle
35 from slipping out of position
36 NOTE: the guard arm must be placed so that
36 when the cradle is in the portrait position it is at
36 the lower edge of the tablet;
36 it may be necessary to turn the guard arm 180°
36 before inserting in the swivel joint (see E bzw.
36 I25, 26)
N DIRECTION
37 Loosen the wing screw slightly,
37 turn the tablet cradle,
37 re-tighten the wing screw
38 Hold the supporting arm firmly, loosen the
38 clamping screw, turn the supporting arm to
38 the required direction, re-tighten the
38 clamping screw
Materials
Swivel joint, adapter, grip: polyamide (PA-6)
Supporting arm, screws, nuts, washers, spring: steel
Tablet cradle: PC-ABS
Clamp: aluminium profile
Load Tablet-PCs (check dimensions)
Dimensions
For tablets with width 160-320 mm, height 120-220 mm
For tubes: ø 11-30 mm
Carton 300 x 75 x 220 mm
Weight net: 0.77 kg, gross: 1.0 kg
FAULT FINDING (F) and SOLUTION (S)
F: Tablet PC wobbles
F: S: Check the tensioning of the upper cradle jaw and if necessary readjust (C6-8)
F: S: Check the "large latch" of the cradle and if loose click back in place (C6-8)
F: Tablet PC is not positioned centrally
F: S: Re-position the guard arm (E, 28 and 29)
F: Tablet cradle wobbles
F: S: Check the screw connections and if necessary tighten (D11, K34)
F: S: Has the cradle been clipped in correctly? Repeat clipping in procedure (F15, 16)
F: Tablet cradle cannot be released from the joint component
F: S: Press the lever, then release the tablet and remove (I25)
TECHNICAL DATA
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
19740-000-55 Rev.04 03-80-186-00 1/13
19740 Tablet PC Holder
