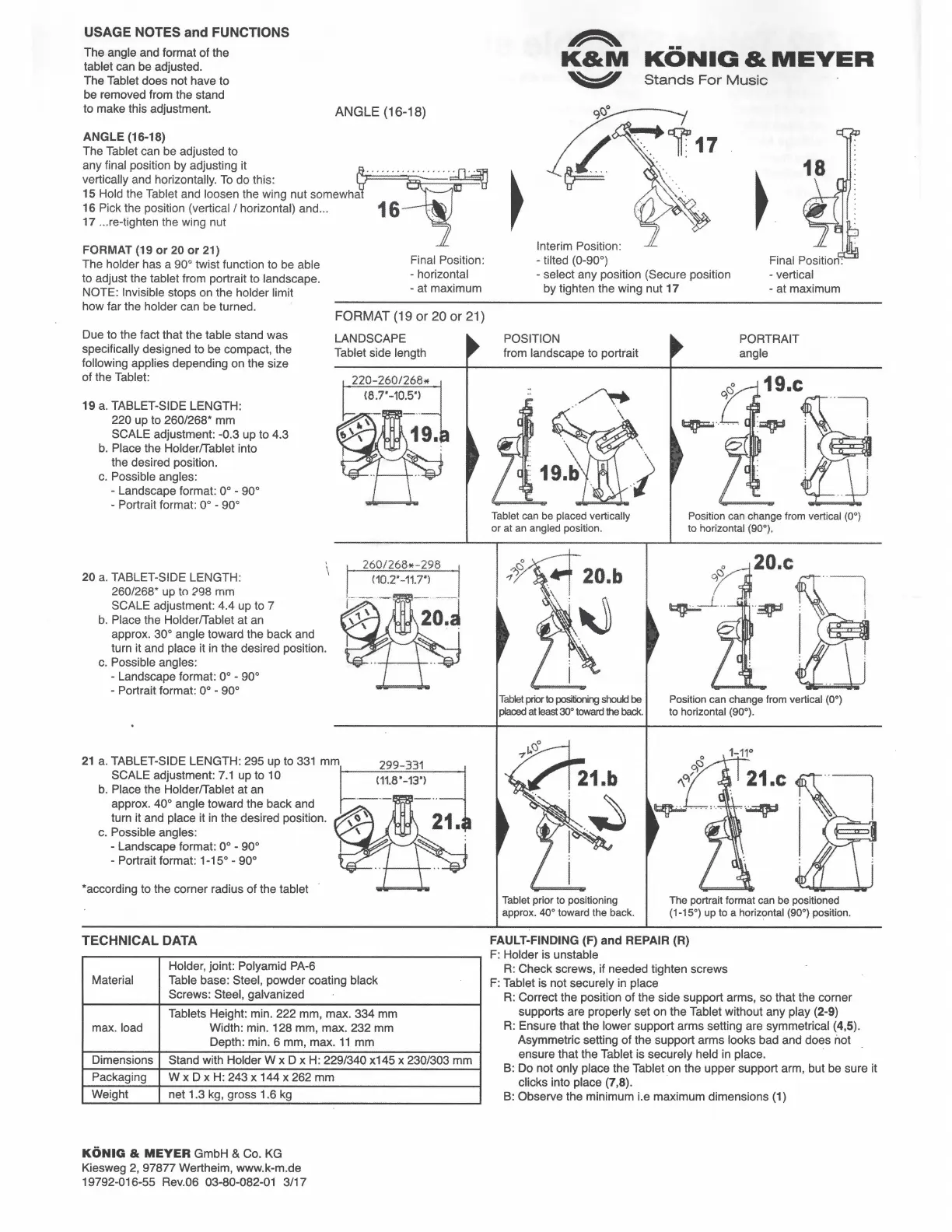

USAGE NOTES and FUNCTIONS
The angle and format of the
tablet can be adjusted.
The Tablet does not have to
be removed from the stand
to make this adjustment.
ANGLE (16-18)
The Tablet can be adjusted to
any final position by adjusting it
vertically and horizontally.
To
do this:
ANGLE (16-18)
15 Hold the Tablet and loosen the wing nut somewha
16 Pick the position (vertical / horizontal) and ...
17
... re-tighten the wing nut
FORMAT (19
or
20
or
21)
The holder has a 90° twist function to be able
to adjust the tablet from portrait to landscape.
NOTE: Invisible stops on the holder limit
how far the holder can be turned.
Due to the fact that the table stand was
specifically designed to be compact, the
following applies depending on the size
of
the Tablet:
19
a.
TABLET-SIDE LENGTH:
220 up to 260/268* mm
SCALE adjustment: -0.3 up to 4.3
b. Place the Holder/Tablet into
the desired position.
c. Possible angles:
- Landscape format: 0° - 90°
- Portrait format: 0° - 90°
20
a.
TABLET-SIDE LENGTH:
260/268* up to ?98 mm
SCALE adjustment: 4.4 up to 7
b. Place the Holder/Tablet at an
approx. 30° angle toward the back and
turn it and place it
in
the desired position.
c. Possible angles:
- Landscape format: 0° - 90°
- Portrait format: 0° - 90°
Final Position:
- horizontal
- at maximum
FORMAT (19
or
20 or 21)
LANDSCAPE
Tablet side length
220-260/268*
(8.7'-10.5')
260/268
..
-298
(10.2'-11.7')
21
a.
TABLET-SIDE LENGTH: 295 up to
331
mm 299-331
SCALE adjustment:
7.1
up to 1 O
---,-
1
1-.8-.--1-3-•1
__
...,.
b. Place the Holder/Tablet at an
approx. 40° angle toward the back and
turn it and place it
in
the desired position.
c. Possible angles:
- Landscape format: 0° - 90°
- Portrait format: 1-15° - 90°
*according to the corner radius of the tablet
TECHNICAL
DATA
Holder, joint: Polyamid PA-6
Material
Table base: Steel, powder coating black
Screws: Steel, galvanized
Tablets Height: min. 222 mm, max. 334 mm
max. load Width: min. 128 mm, max. 232 mm
Depth: min. 6 mm, max.
11
mm
Dimensions
Stand with Holder W x D x H: 229/340 x145 x 230/303 mm
Packaging W x D x H: 243 x
144
x 262 mm
Weight net 1.3 kg, gross 1.6 kg
KONIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
19792-016-55 Rev.06 03-80-082-01 3/17
~
K&M
KONIG
&
MEYER
~
Stands
For
Music
Interim Position:
- tilted (0-90°)
- select any position (Secure position
by tighten the wing nut 17 - at maximum
POSITION
from landscape to portrait
-~
\
Tablet can
be
placed vertically
or at
an
angled position.
Tablet
prior
to
positioning
should
be
placed
at
least
30°
toward
the
back.
Tablet prior
to
positioning
approx. 40° toward the back.
~--
PORTRAIT
angle
Position can change from vertical (0°)
to horizontal (90°).
Position can change from vertical (0°)
to horizontal (90°).
The portrait format can be positioned
(1-15°) up to a horizontal (90°) position.
FAULT-FINDING (F) and REPAIR (R)
F:
Holder is unstable
R:
Check screws, if needed tighten screws
F:
Tablet is not securely
in
place
R:
Correct the position of the side support arms, so that the corner
supports are properly set on the Tablet without any play (2-9)
R:
Ensure that the lower support arms setting are symmetrical (4,5).
Asymmetric setting of the support arms looks bad and does
not
ensure that the Tablet is securely held in place.
B: Do not only place the Tablet on the upper support arm, but be sure it
clicks into place (7,8). ·
B: Observe the minimum i.e maximum dimensions (1)
