ENGLISH
Intelligent multi tester
Specifications:
• Detachable module for testing two remote points
• Open/short wiring test
• Connected wires display
• No connection/no terminator indication
• Wrong connection/non-parallel connection display
• BCN terminator 25Ω / 50Ω indication
• Battery good or battery low indication
• Ethernet 10BASE-2 terminator value detaction
• Easily visable LED display provides operation status
• One step operation
• Fast reaction during test process
• Palm size with carrying bag
• 9V battery
• MAXIMUM CABLE LENGTH 600 FEET (180 m) (RJ-45/RJ-11/BNC)

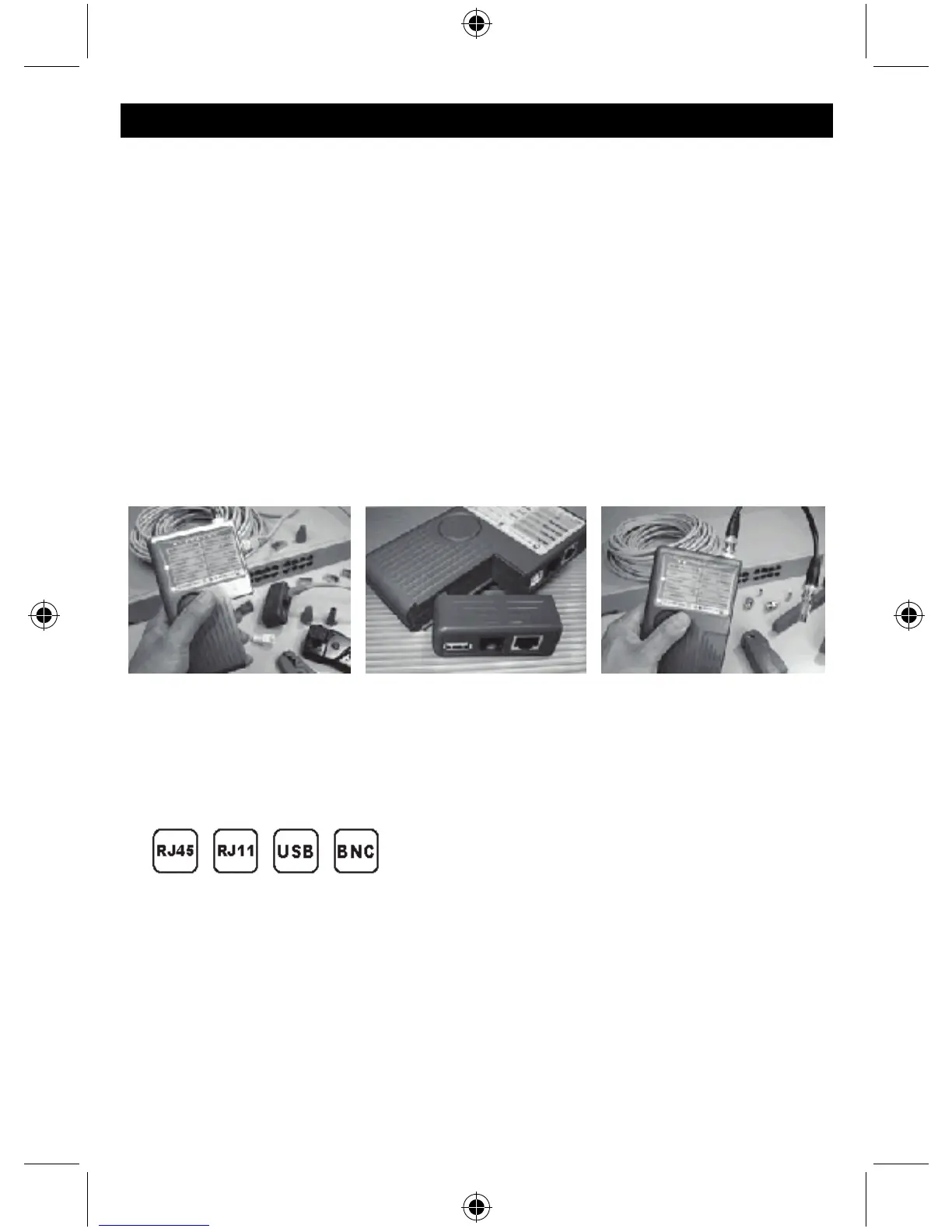

Applicable cables for testing:
1. RJ-45 plug – shielded (STP) or non-shielded (UTP)
2. RJ-11 plug – 6P telephone plug
3. USB plug – USB type A to USB type B
4. BNC – To test the terminator value
Operating instructions:
1. Connect one side of the plug to the main tester unit and the other side of the plug to the remote
unit (remote unit is seperatable from the main tester unit for remote testing).
2. Press the “Test button” on the main tester unit.
3. Read the status shown on the LEDs display.
