3

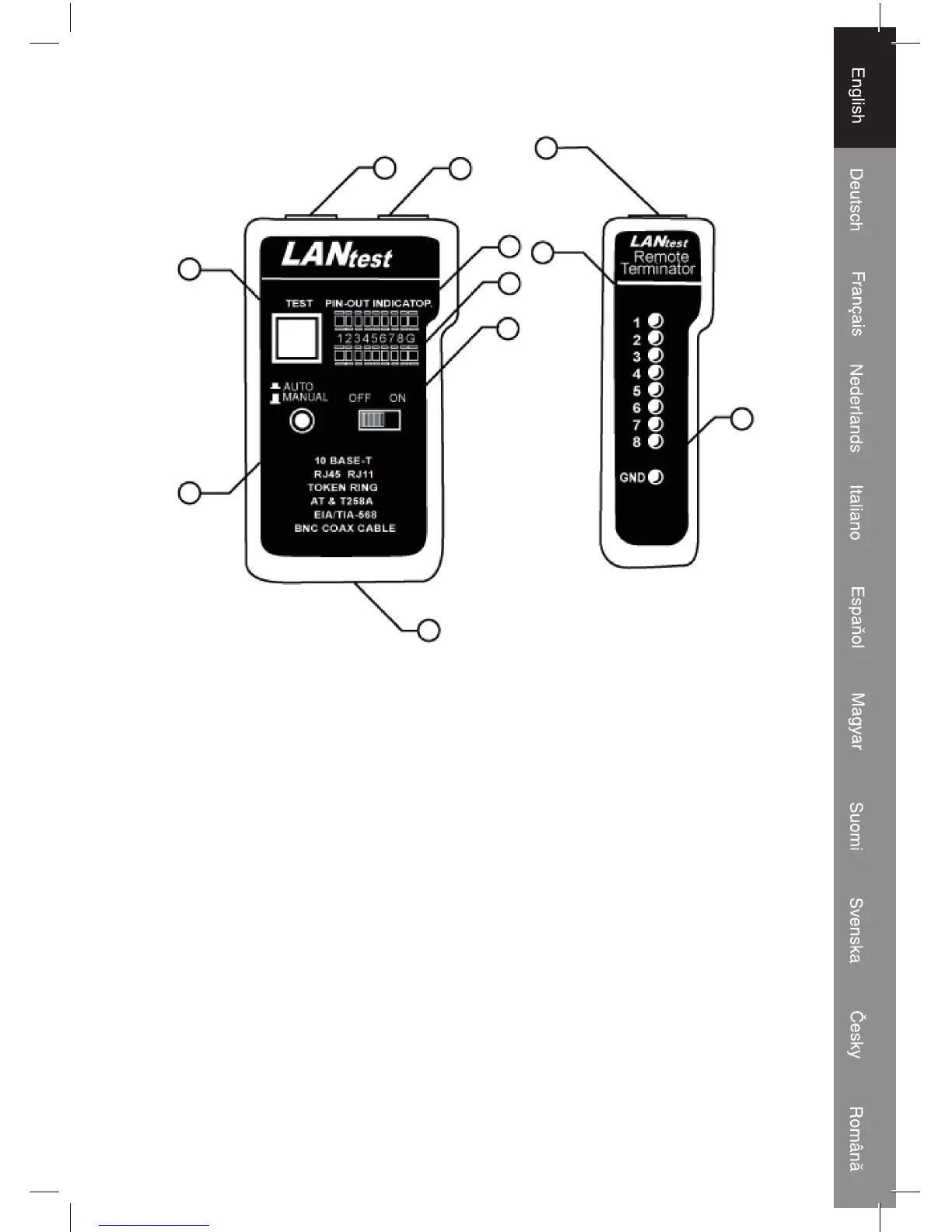

Master
Unit
Remote
Unit
1) RJ45 jack
2) RJ45 jack
3) LED display for sourcing end (jack 1)
4) LED display for receiving end (jack 2)
5) Power switch
6) LED scanning mode switch
7) Test switch for manual scan
8) RJ45 jack
9) LED display for receiving end (same as jack 2)
10) Ground LED for receiving end
11) Battery compartment (9 V block)
Operation and connection:
Loopback test
1) 10Base-T cable test.
• Plug one end of the to be tested cable into the sourcing of the RJ45 jack
(marked with “”) and another end of the to be tested cable in the receiving RJ45 jacks.
7
6
11
1
8
9
10
2
3
4
5
