KONTRONIK ProgCARD II User Manual

ProgCARD II Operation Manual
Features of ProgCARD II
The ProgCARD II programs ESCs of the JIVE series. Even options that cannot be programmed via mode programming
of the ESC can be programmed by using ProgCARD II.
Connectors of the ProgCARD II
`Select`-Button
Press shortly for selecting next option
Press long for saving the selected option
ESC-Connector ESC connection port
Battery-Connector RX-battery connection port

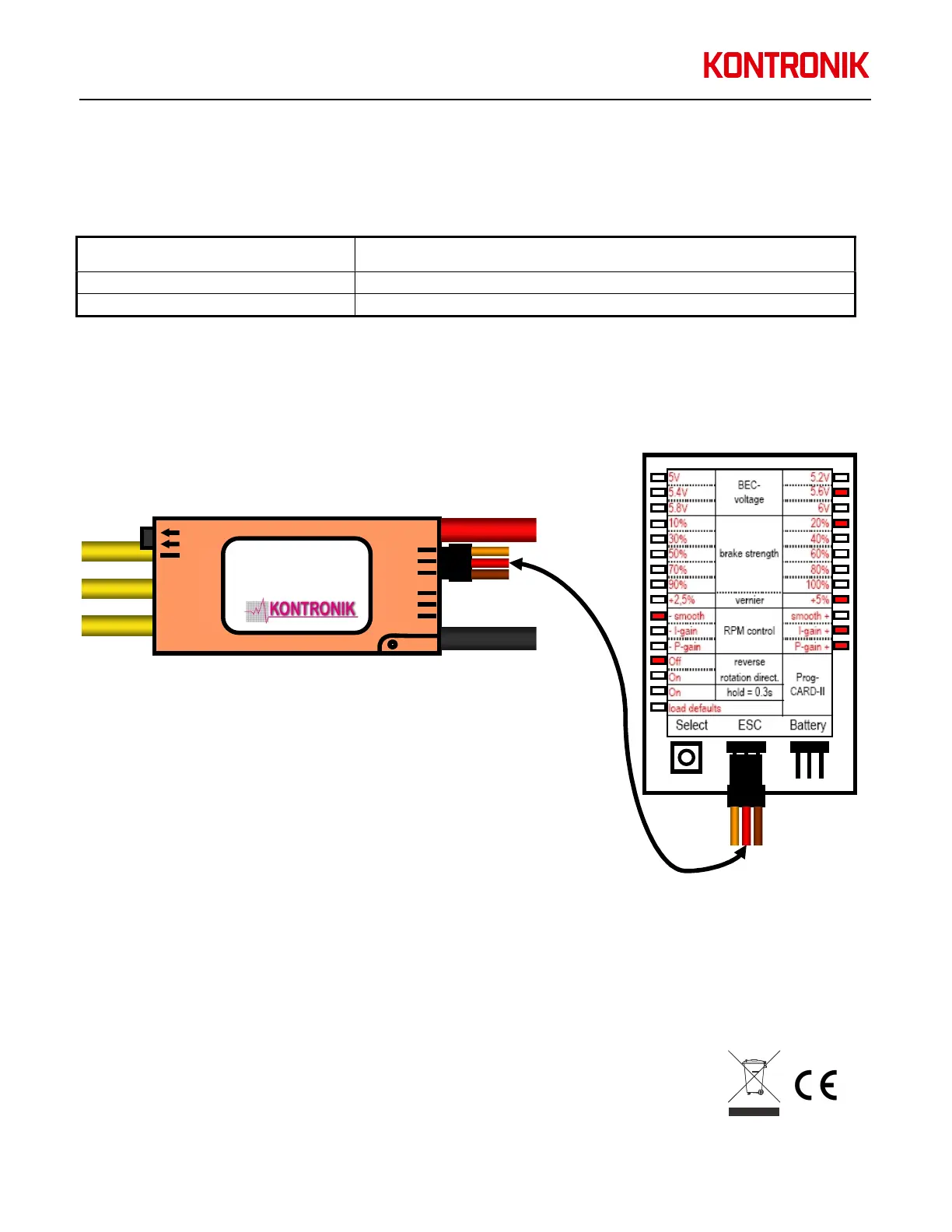

Using ProgCARD II
The ProgCARD II must be connected to the Master port of the JIVE ESC. As soon as the ESC is connected to the
ProgCARD, set parameters are read out and are being displayed by LEDs on the ProgCARD II.
Warning: The JIVE ESC must not be connected to the receiver when using the
ProgCARDII!
KONTRONIK – a brand of SOBEK Drives GmbH – Am Oberfeld 9 – D-72108 Rottenburg am Neckar
Tel: 07457/9435-0 – Fax: 07457/9435-90 – E-Mail: info@kontronik.com
Jive 100+
LV
>100A, 6
-
25V, BEC
JMP
LED
Master
Slave
