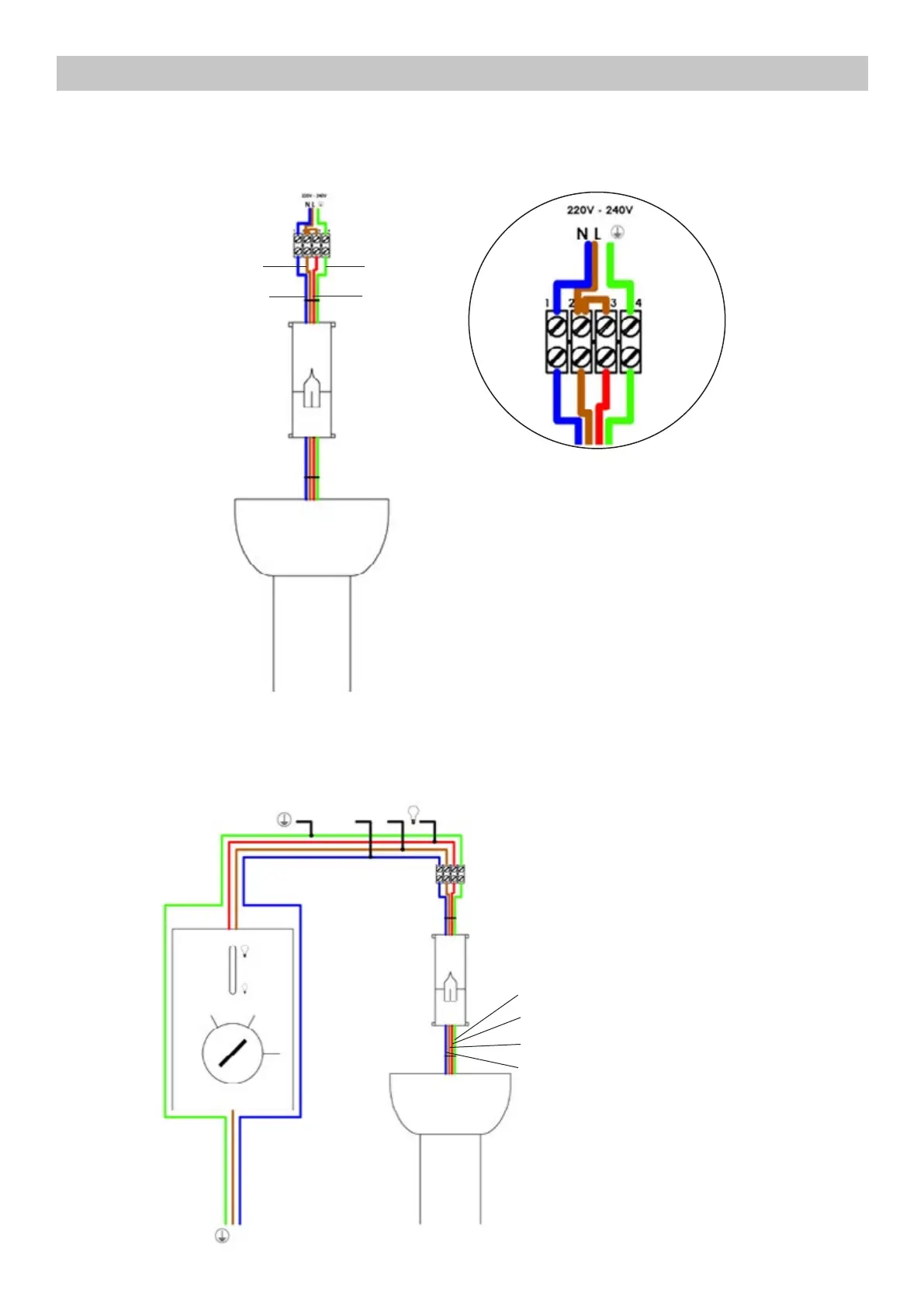

ELECTRICAL CONNECTION
A: DIRECT CONNECTION FAN
GREEN
N = N = BLUE
L = L = BROWN
FIRST CLASS SYMBOL = GREEN
LAMP SYMBOL= LIGHT= RED
RED
BROWN
BLUE
B. FAN WITH SPEED REGULATOR
GREEN
RED
BROWN
BLUE
N = N = BLUE
L = L = BROWN
FIRST CLASS SYMBOL = GREEN
LAMP SYMBOL= LIGHT= RED
LN
L N
220V - 240V
1 2 3 4
