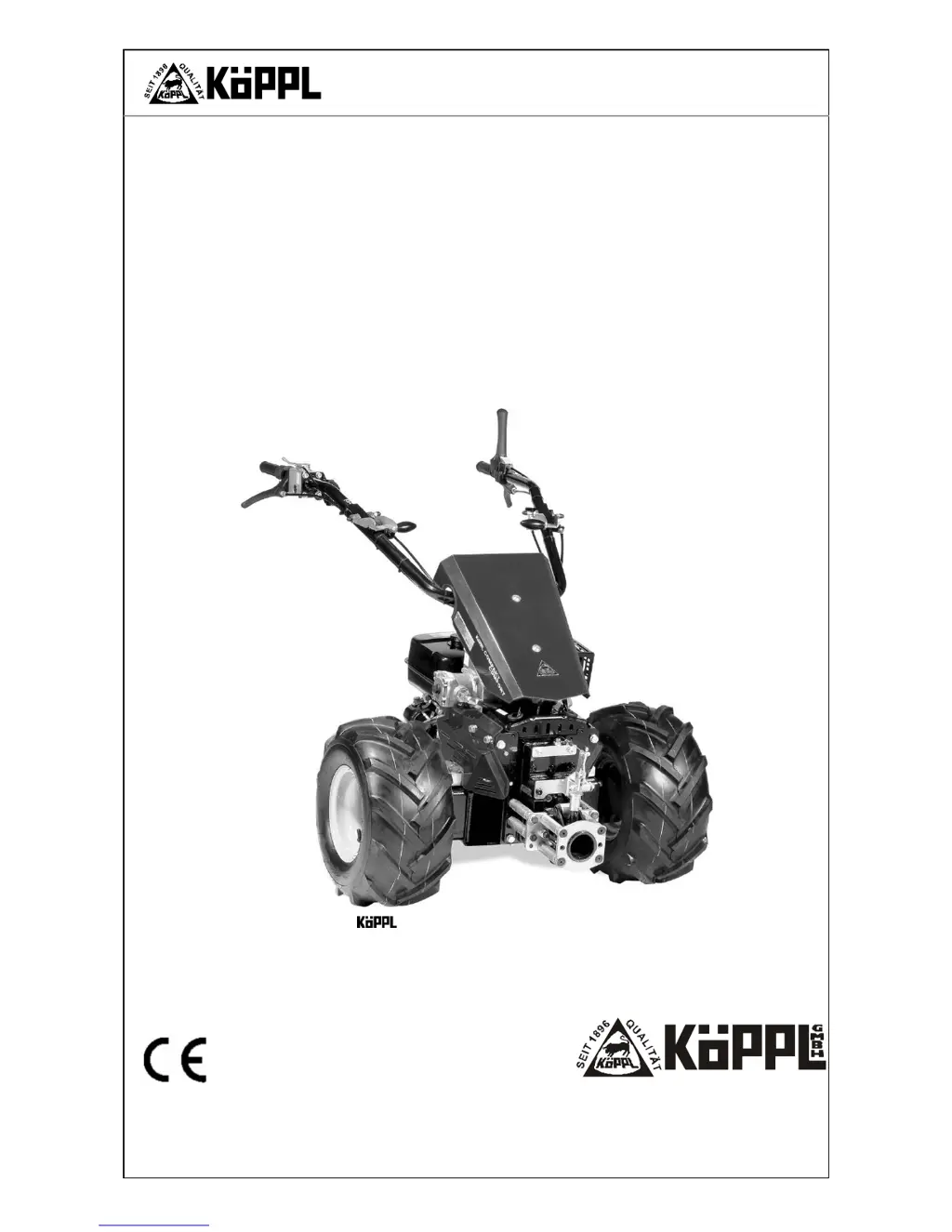

Koppl compakt comfort CC-2 - User Manual

Koppl compakt comfort CC-2
46 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
M OTORGE R ÄT E FABR I K
94163 ENTSCHENREUTH
(0 99 07) 89 10-0
Fax (0 99 07) 10 42
Internet: http://www.koeppl.com
email: info@koeppl.com
Type CC-2 = Compakt Comfort
Rev. date / edition
3/8/2010
No. 02-2010
Retain for future reference!
Operating manual
for
2-wheel tractor
The basis for working with the
2
-
wheel tractor is that you read, understand and follow this
operating manual and that for the attachments as well as the engine manufacturer’s operating
manual. You may not commence with the operation before having done so. It is forbidden to
start work without observing this manual!
Type Compakt Comfort = CC-2
optionally with swivel steering shaft

Questions and Answers

  • A
    Ashley MillerAug 20, 2025
    What to do if my Koppl compakt comfort CC-2 engine stutters?
    • T
      Tammy HodgesAug 20, 2025
      If your Koppl Lawn Mower engine stutters, it could be due to several reasons: the engine running in the CHOKE range, a loose ignition cable, a blocked fuel line or poor fuel quality, a clogged vent in the fuel tank cap, water or dirt in the fuel system, a dirty air filter, or a misadjusted carburetor. To address this, push the CHOKE lever to the OFF position, firmly push the spark plug cap onto the spark plug, clamp the ignition cable firmly, clean the fuel line and fill up with fresh fuel, replace the fuel tank cap, drain the fuel and refill with fresh fuel, clean the air filter, or have the carburetor adjusted by a workshop.
  • M
    Melissa IrwinAug 23, 2025
    What to do if my Koppl compakt comfort CC-2 engine runs hot?
    • T
      tloweAug 23, 2025
      If your Koppl Lawn Mower engine runs hot, it could be due to too little engine oil, a dirty cooling air system, a dirty air filter, or an incorrectly adjusted carburetor. To resolve this, immediately top up the engine oil, clean the fan grille and interior cooling fins, clean the air filter, or have the carburetor adjusted by a workshop.
  • J
    jmatthewsAug 26, 2025
    Why does my Koppl compakt comfort CC-2 Lawn Mower engine stutter at high revs and stop in neutral?
    • A
      Adrienne ContrerasAug 26, 2025
      If your Koppl Lawn Mower engine stutters at high revs and often stops in neutral, the possible causes are: the spark plug ignition gap being too small, the neutral mixture not being adjusted correctly, the ignition gap being too large or a defective spark plug, an incorrectly adjusted carburetor, or a dirty air filter. To fix this, adjust the spark plug, have the carburetor adjusted by your workshop, adjust the ignition gap or replace the spark plug, have the carburetor adjusted by your workshop, or clean the air filter.
  • S
    smithrobertAug 28, 2025
    Why is my Koppl compakt comfort CC-2 Lawn Mower drive wheels pull unevenly?
    • A
      Amber ColonAug 28, 2025
      Uneven pulling of the drive wheels on your Koppl Lawn Mower can be caused by incorrect tire pressures, a sticking Bowden cable on the twist-grip, or excessive steering clutch play. To fix this, check and correct tire pressures as needed, inspect and replace the Bowden cable if necessary, and adjust the steering clutch play.
  • J
    Jon MejiaAug 30, 2025
    What causes excessive noise and jerky drive movements in my Koppl compakt comfort CC-2 Lawn Mower?
    • M
      Matthew RodriguezAug 30, 2025
      Excessive noise and jerky drive movements in your Koppl Lawn Mower, with pressure fluctuations, can be attributed to a low fluid level, dirty or foamy fluid, or a system that hasn't been fully bled. To address this, top up the oil, exchange the oil, and bleed the system at the top of the suction filter.
  • M
    Miss Kimberly Dougherty MDSep 2, 2025
    Why is the hydraulic fluid foaming in my Koppl compakt comfort CC-2?
    • C
      Calvin FlemingSep 2, 2025
      Foaming of the hydraulic fluid in your Koppl Lawn Mower may be due to a leaking suction line, a low oil level, or defective seals. To resolve this, seal the suction line, top up the oil, or have the seals replaced.
  • C
    Crystal EstradaSep 4, 2025
    What causes excess vibration in my Koppl Lawn Mower?
    • L
      Laura ByrdSep 4, 2025
      Excess vibration in your Koppl Lawn Mower is caused by loose fixing screws. Tighten the fixing screws to resolve this issue.
  • G
    Geoffrey CarlsonSep 7, 2025
    Why won’t my Koppl Lawn Mower engine switch off in the stop position?
    • C
      Crystal JacksonSep 7, 2025
      If your Koppl Lawn Mower engine doesn’t switch off in the stop position, it could be due to a defective engine stop cable or a lack of earth connection. To fix this, check and renew the cable and plug connector.
  • M
    Michele ManningSep 9, 2025
    Why does my Koppl compakt comfort CC-2 Lawn Mower engine work irregularly?
    • G
      gainesjohnSep 9, 2025
      The regulator linkage is dirty or sticks, which can cause the engine of your Koppl Lawn Mower to work irregularly. Clean the regulator linkage to resolve this.
  • J
    John WilliamsSep 12, 2025
    Why does my Koppl compakt comfort CC-2 Lawn Mower clutch doesn't disengage or slips?
    • S
      Scott Brown Jr.Sep 12, 2025
      If the clutch on your Koppl Lawn Mower doesn't disengage or slips, it could be caused by an incorrectly adjusted clutch hand lever or a worn clutch. To address this, adjust the spring tension or replace the clutch.

Summary

General Safety Instructions

Operator Safety and Hazard Awareness

Covers potential hazards, safety symbols, PPE, and workplace safety.

Safe Operation and Device Handling

Details safe operational practices, danger areas, and handling attached devices.

Operation Procedures

Driving, Steering, and Speed Control

Explains forward/reverse driving, steering, and speed adjustment.

Clutch, PTO, and Safety Feature Operation

Details the operation of the clutch, power take-off, and safety levers.

Troubleshooting and Maintenance

Fault Diagnosis and Remedies

Lists common issues and provides solutions for the tractor and engine.

Maintenance Schedule and Appendix

Koppl compakt comfort CC-2 Specifications

General IconGeneral
BrandKoppl
Modelcompakt comfort CC-2
CategoryLawn Mower
LanguageEnglish
