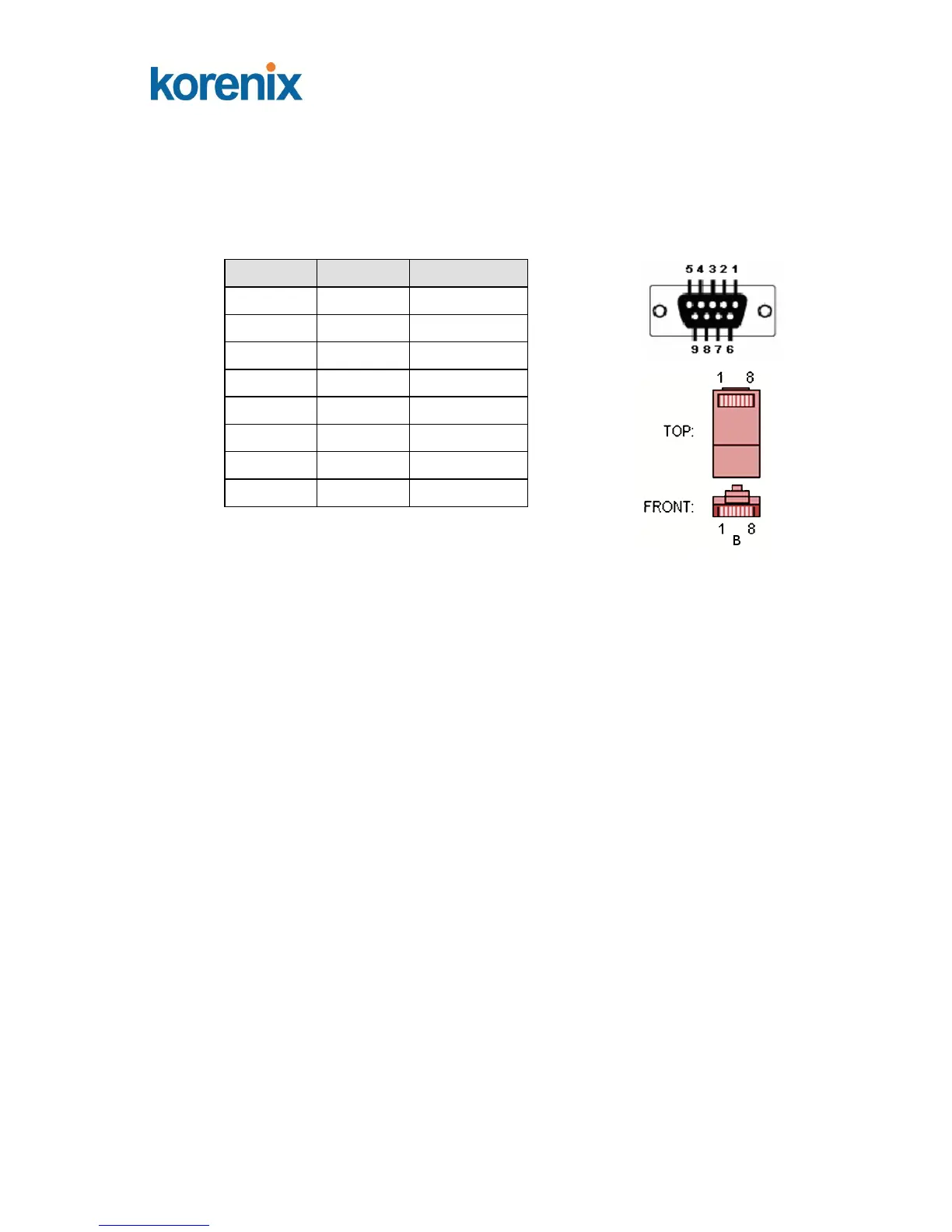

5.2 Pin assignment of RS-232 serial console cable
The RS-232 console cabl include in the unitbox, and the connectors are RJ-45 and
DB-9 female.
The following diagram showns the pins assignment of RJ-5 and DB-9 female
connectors.
RJ-45 Pin
DB-9 Pin
Description
1
8
N/A
2
9
N/A
3
2
TxD
4
1
N/A
5
5
GND
6
3
RxD
7
4
N/A
8
7
N/A
DB-9 Female Connector
