Set Up Overview
Once the Teacher Unit is set up, you are ready to connect the Student Interfaces to each station and corresponding instru-
ment or computer, or both.
Keyboard or Piano Lab:

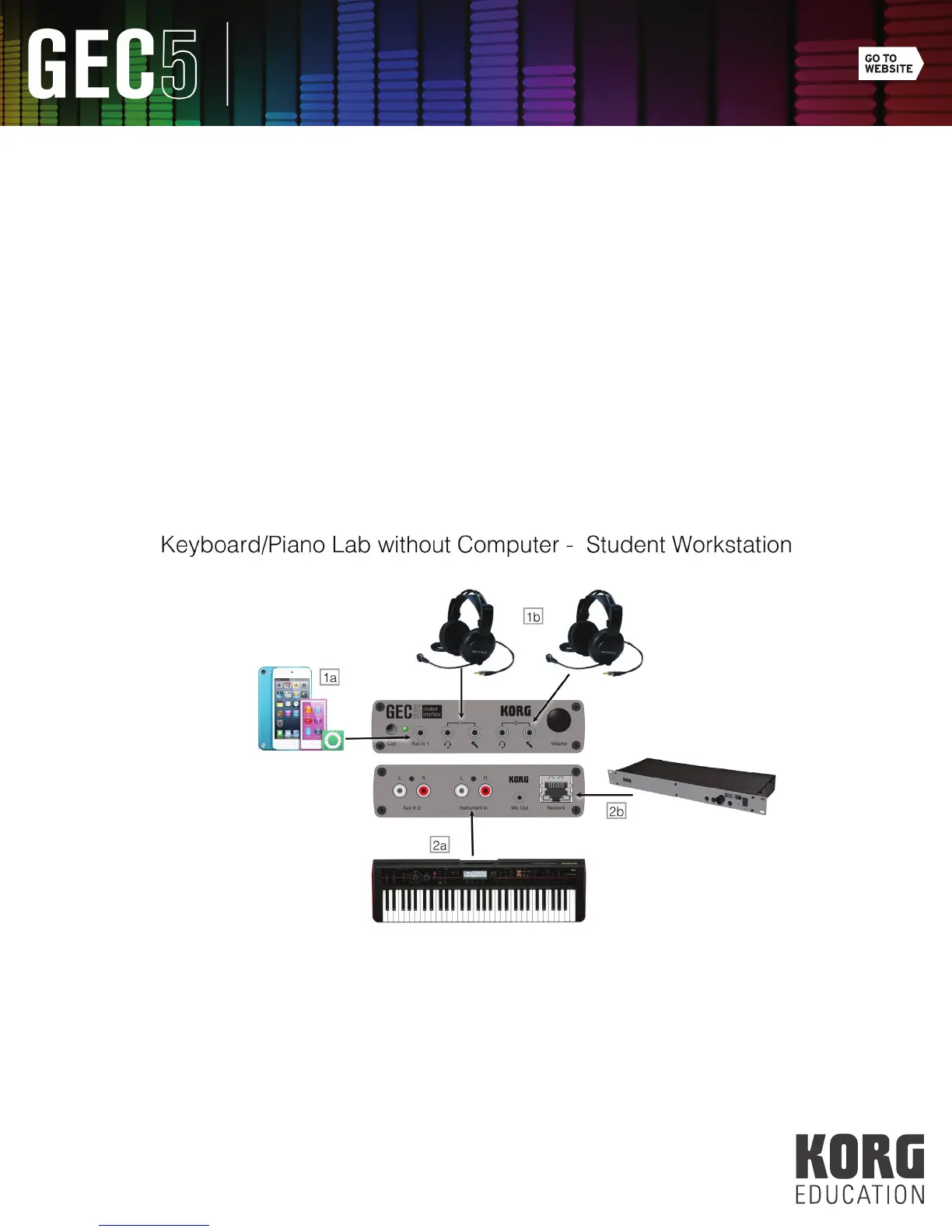

In this situation, you will connect the keyboard output to the Student Interface instrument input. See Fig. 12 for a detailed
diagram.
1. Front:
a. Audio device (iPod, laptop, etc.) to Student Interface Aux In 1 (optional).
b. Headphones to each headphone input.
2. Back:
a. Keyboard audio output to Instrument In.
b. Network to Teacher Unit using CAT5 cable.
(Fig. 12)
