Hardware Overview
Student Interface Unit Back:

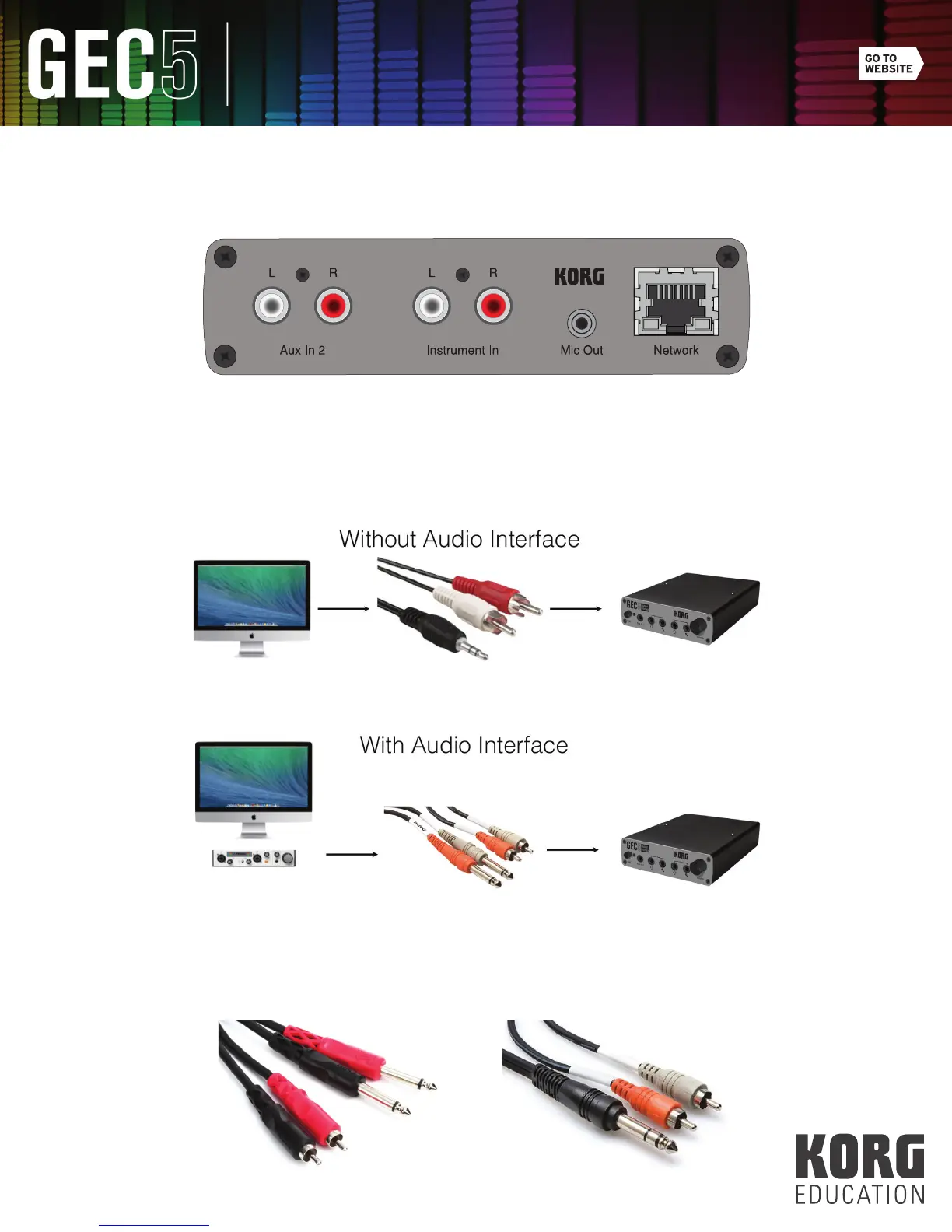

Examine the back of the Student Interface units (see Fig. 4).
1. Aux In 2: Most commonly you will connect the audio output of your computer or audio interface to this jack. If
you are going directly from a student computer to the Student Interface, you will need a stereo 3.5mm male (out of
your computer) to stereo RCA male (into Student Interface unit). If you are using an audio interface you will mostly
likely need dual TS male 1/4” (out of your interface) to stereo RCA male (into Student Interface unit). Be sure to
check the user manual of your audio interface to confirm the proper cabling for your specific device (see Fig. 5).
2. Instrument In: Connect your keyboard/instrument to this input. If your keyboard/instrument has a Left and Right
audio output, you will most likely need dual TS male 1/4” out of your keyboard/instrument to stereo RCA male into
Student Interface unit (see Fig. 6). If your keyboard/instrument only has a single audio output, you will most likely
need a single TRS male 1/4” to stereo RCA male cable (see Fig. 7). Be sure to check the user manual of your
keyboard/instrument to confirm the proper cabling for your specific device.
(Fig. 6: Dual TS male 1/4” to RCA male cable) (Fig. 7: TRS male 1/4” to RCA male cable)
(Fig. 4)
(Fig. 5)
