9

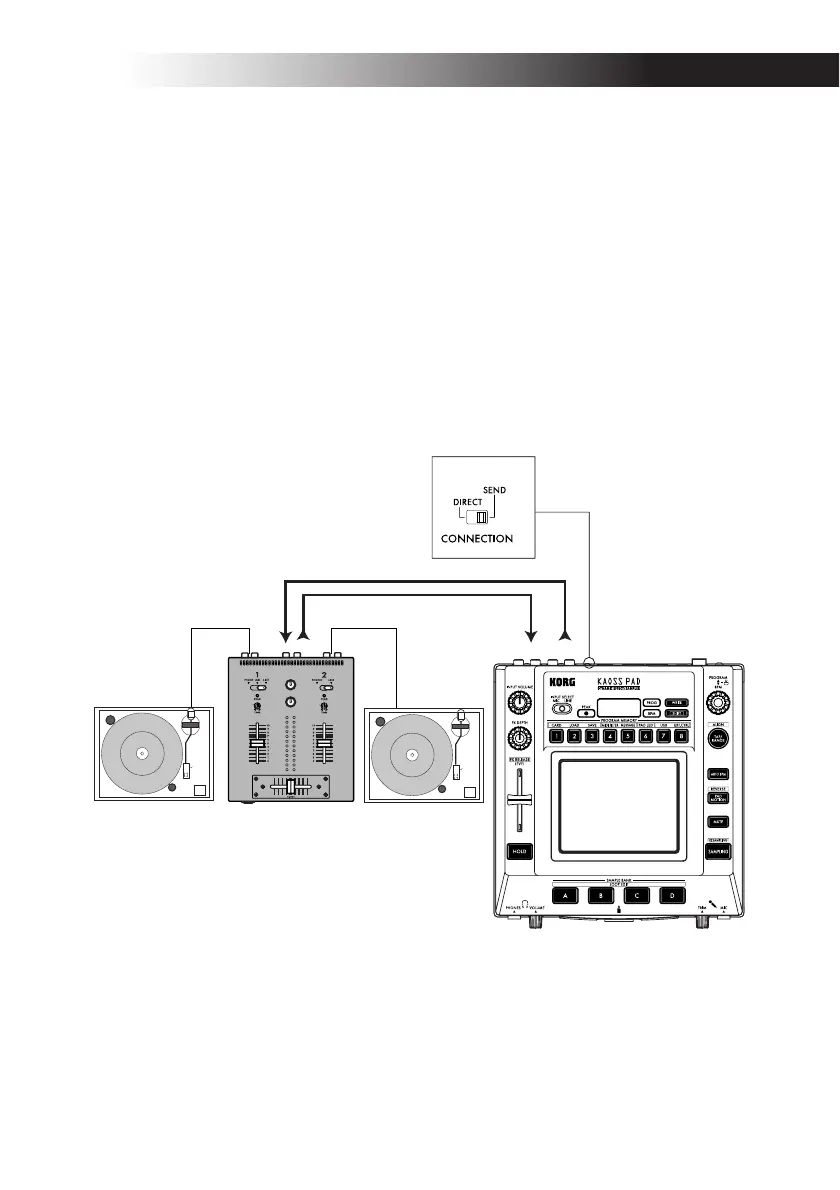

DJ mixer connections
The KP3 can also be used as an external
effect processor by connecting it to the ef-
fect send and return jacks on a DJ (or other
style) mixer. This allows the KP3 effects to
be applied to any audio signal connected
to the mixer. For this type of application,
the CONNECTION switch on the rear
panel should be set to SEND. With this
setting, the output from the KP3 will con-
tain only the processed signal, and will not
include the original signal being sent to the
KP3's inputs. Use the send level and return
level controls of your mixer to adjust the
depth of the effect.
LINE IN
LINE OUT
TURNTABLE
TURNTABLEDJ MIXER
SEND
RETURN
