Connections
Basic connections

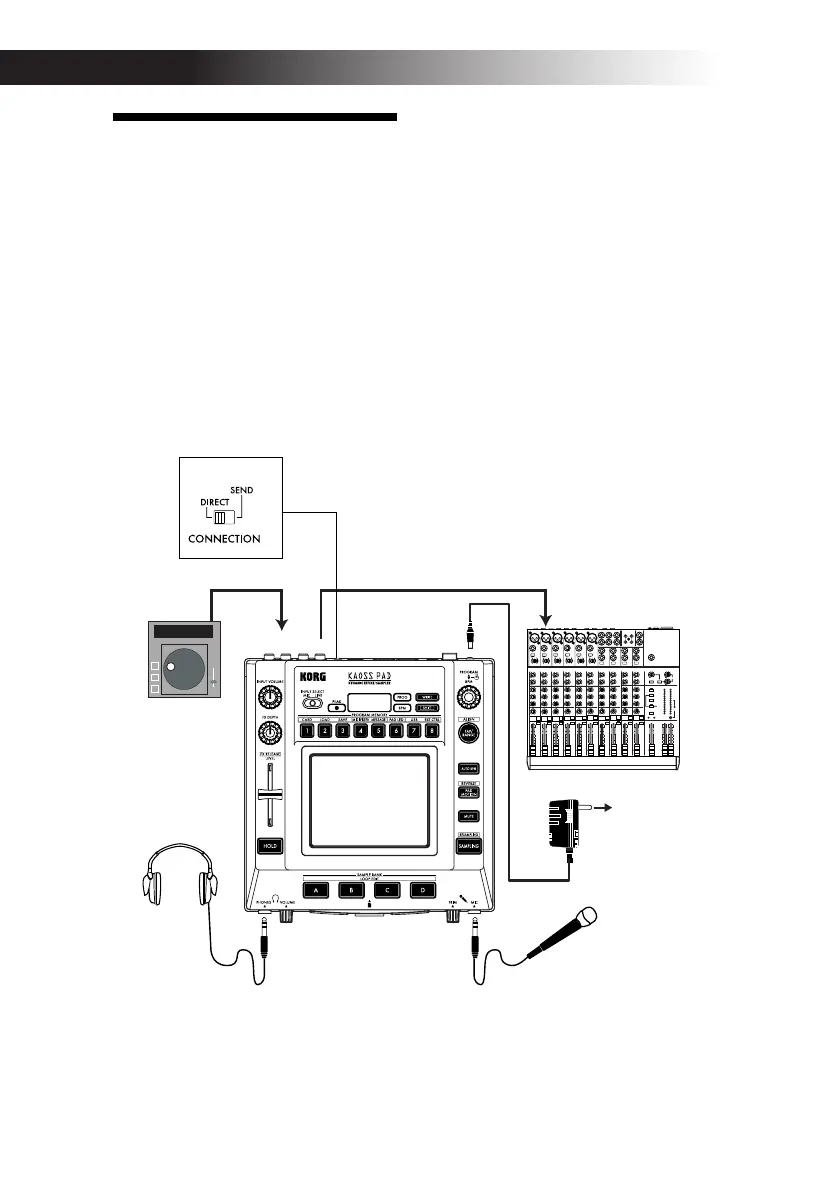

In the example shown below, the KP3 is
being used “in-line” between the audio
source and the mixer inputs. In this case,
effects can be applied to the incoming au-
dio signal, and the incoming audio signal
can be sampled. In this type of application,
the CONNECTION switch on the rear
panel should be set to DIRECT. The KP3
has line and mic input jacks. Use the jacks
that are appropriate for your situation.
