KORNORGE KC7 - Circuit Diagram

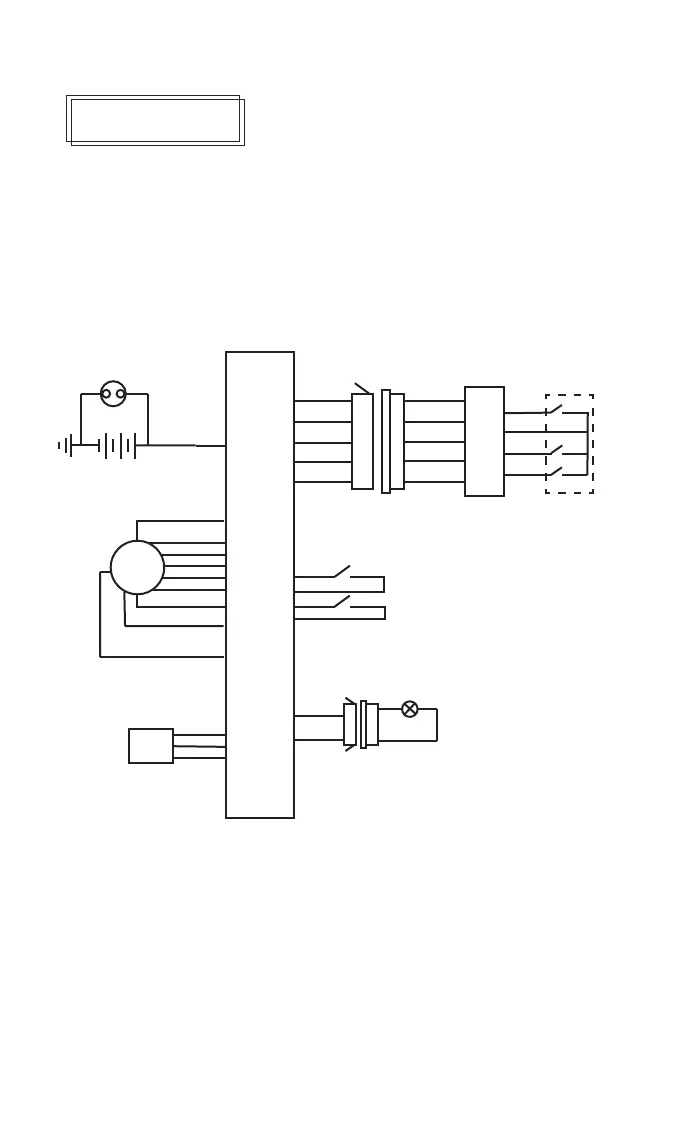

Circuit Diagram
Left Power Cut-off Brake Levers
Right Power Cut-off Brake Levers
High
speed
Motor
Booster
Power switch
Headlight
5V
Phase Wire A
Ha
Hb
Hc
GND
Phase Wire B
Phase Wire C
GND
5V
Hall2
GND
GND
GND
Brake
GND
Brake
GND
Power_36V Power_36V
Display
36V Battery Pack
DC2.1
Charging Port
36V
GND
3.3V
Y-GND
36V Electrolock
Speed Sensor
K1
K2
Mode Shifter
Mode M
Headlight
Electrolock
_36V
Electrolock
_36V
RX
TX
TX
RX
Front Light
Button
Controller
