Kospel SW Series User Manual

18

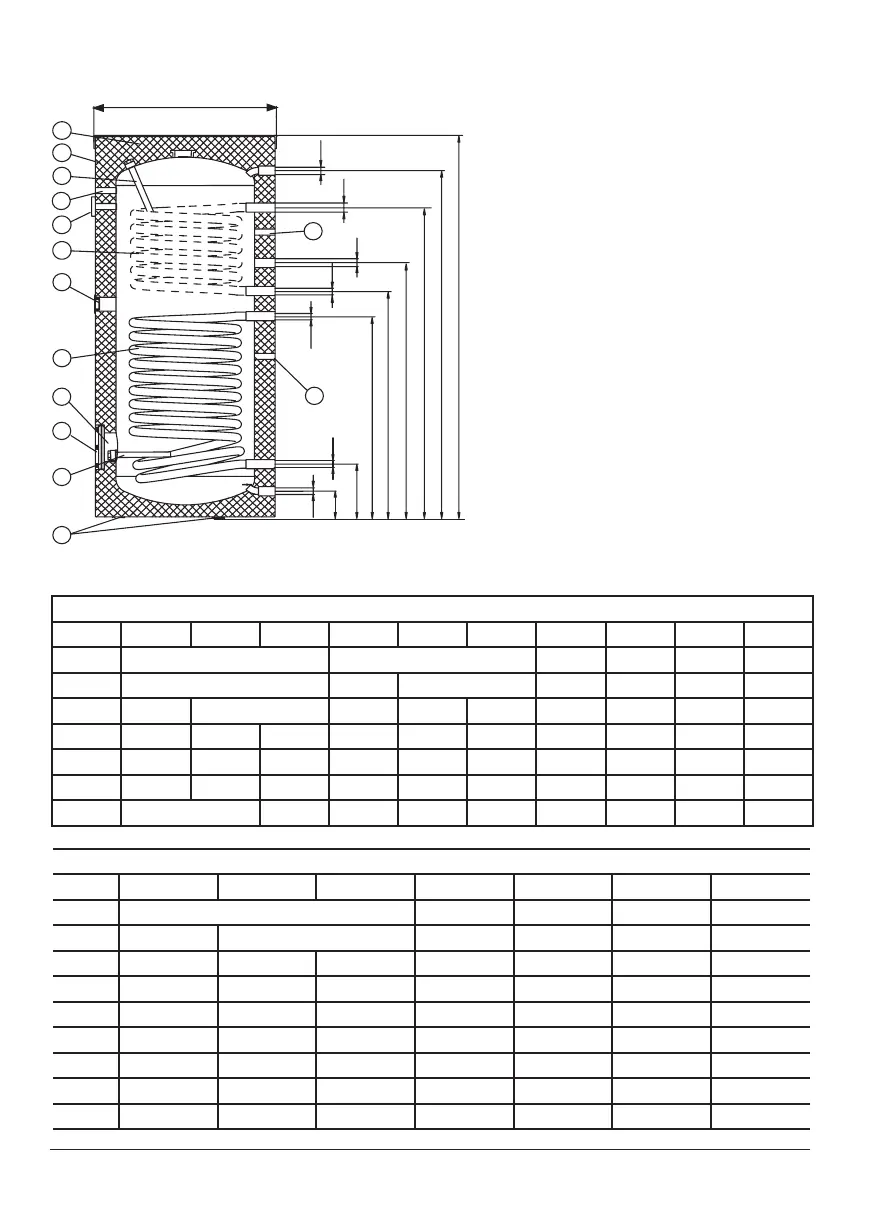

Cylinder conruction SW, SB (800, 1000l)
[6] - sensor pipe
[10] - immersion heater connection
(cork 1½″)
[11] - lower heating coil
[12] - upper heating coil
[13] - magnesium anode 1
[14] - thermometer
[15] - thermal insulation
[16] - upper lid
[18] - feet
[20] - access hole
[21] - access hole cover
[22] - magnesium anode 2
[23] - thermoregulator hole
ZW - cold water
CW - hot water
C - circulation
ZG1,ZG2 - heating medium supply
PG1,PG2 - heating medium return
A-I - dimensions described in table.
ZW
PG1
6
ZG1
PG2
C
ZG2
CW
G1½
G1½
A
B
C
D
E
F
G
H
G3/4
G1½
G1
G1
G1½
ø950 (800 l)
ø1010 (1000 l)
16
15
13
14
12
10
11
20
21
18
22
23
6
Dimensions SB; SBZ
200 250 300 400 500 800 1000
A
127 125 136 82,5 81,5
B
258 241 254 266 269 272
C
813 628 852 856 990 929 987
D
903 747 981 986 1115 1105 1174
E
993 837 1071 1076 1220 1273 1274
F
1290 1079 1313 1319 1448 1492 1475
G
1464 1230 1464 1490 1584 1778 1847
H
1610 1380 1615 1660 1800 1937 2002
I
1334 1116 1350 1377 1453 - -
Dimensions SW; SWZ
100 120 140 200 250 300 400 500 800 1000
A
112 127 125 136 82,5 81,5
B
240 258 241 254 266 269 272
C
753 851 813 740 852 856 990 929 987
E
851 916 1065 903 841 953 986 1220 1273 1274
G
1065 1235 1305 1464 1230 1464 1490 1584 1780 1846
H
1200 1365 1435 1610 1380 1615 1660 1800 1937 2002
I
- 1200 1334 1116 1350 1377 1453 - -
