Kostrzewa Mini Bio - Dimension Data

Mini Bio and Mini Bio Luxury User Manual - ENGV 02.14
Experts in biomass heating
Table: Mini Bio /Mini Bio Luxury
boiler dimension data

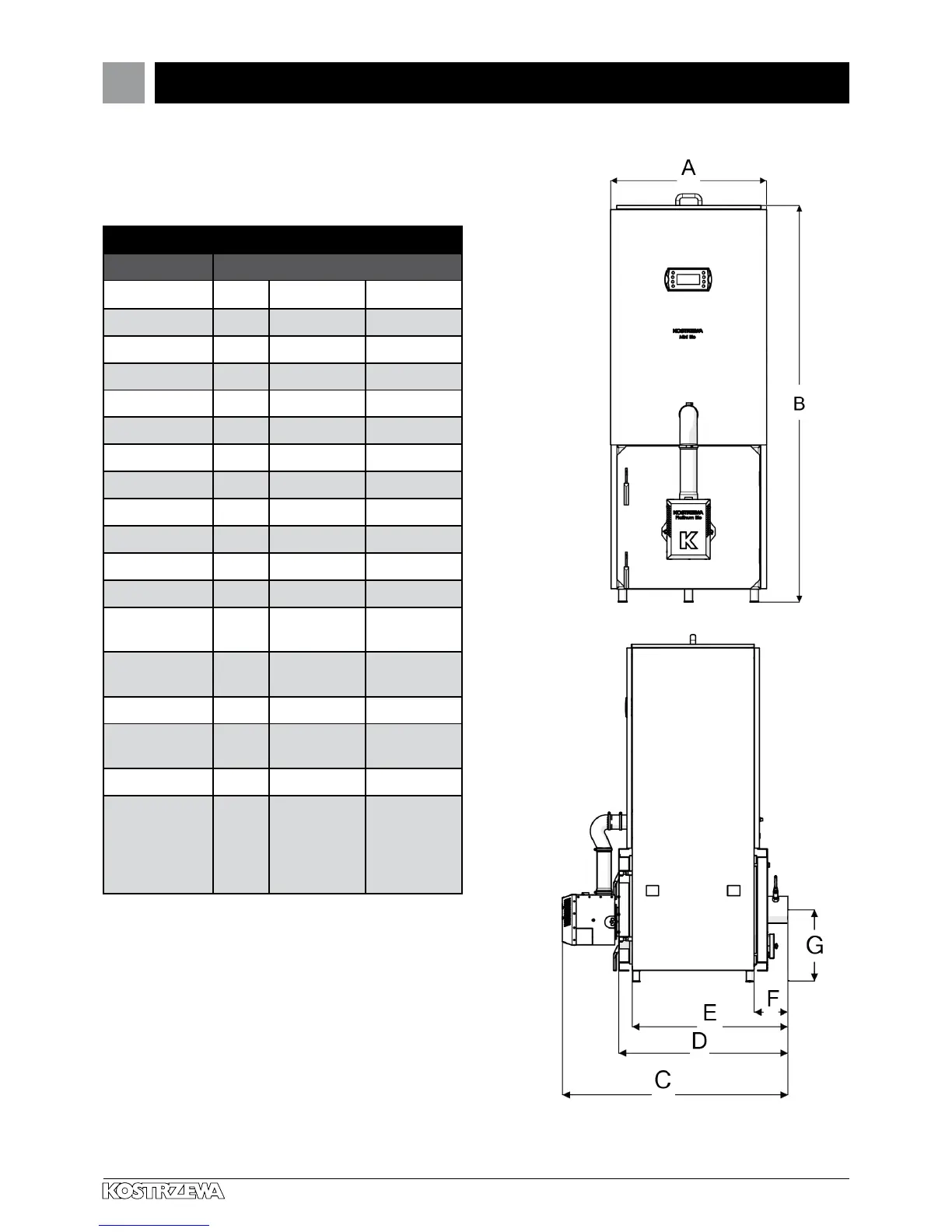

Basic boiler dimensions of the
Mini Bio / Mini Bio Luxury series
3. Specications
Table: Mini Bio /Mini Bio Luxury boiler dimension data
SYMBOL
unit
MB / MBL 10 MB / MBL 20
A mm 650 752
B mm 1658 1638
C mm 1110 1209
D mm 832 932
E mm 766 866
F mm 166 166
G mm 354 404
H mm 678 773
I mm 156 156
J mm 566 647
K mm 366 416
L mm 246 185
ØK1 – boiler
flue connector
mm 133 159
ØK2 –
power supply
G 1” 1 1/4”
ØK3 – return G 1” 1 1/4”
ØK4 – thermal
safety device
R 1/2” 1/2”
ØK5 – drain R 1/2” 1/2”
ØK6 – Boiler
temperature
sensor housing
– Ø inner
mm 16 16
6
