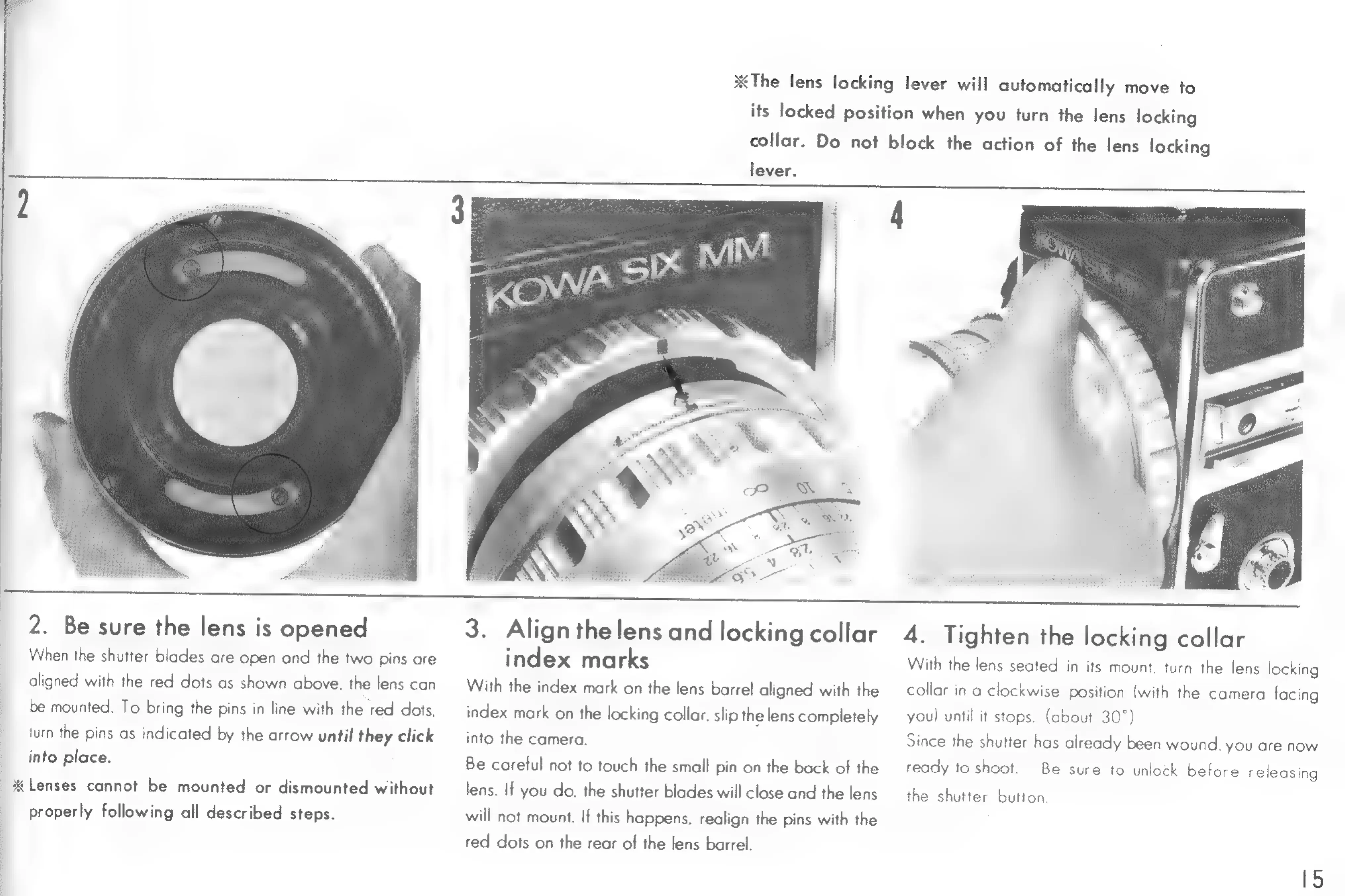

Kowa SIX Version II - Completing Lens Mounting

XThe
lens
locking
lever
will
automatically
move
to
its
locked
position
when
you
turn
the
lens
locking
collar.
Do
not
block
the
action
of
the
lens
locking
lever.
2.
Be
sure
the
lens
is
opened
When
the
shutter
blades
are
open
and
the
two
pins
are
aligned
with
the
red
dots
as
shown
above.
the
lens
con
be
mounted.
To
bring
the
pins
in
line
with
the
red
dots.
turn
the
pins
as
indicated
by
the
arrow
until
they
click
into
place.
X
Lenses
cannot
be
mounted
or
dismounted
without
properly
following
all
described
steps.
3.
Align
the
lens
and
locking
collar
index
marks
With
the
index
mark
on
the
lens
barrel
aligned
with
the
index
mark
on
the
locking
collar.
slip
the
lens
completely
into
the
camera.
Be
careful
not
to
touch
the
small
pin
on
the
back
of
the
lens.
If
you
do.
the
shutter
blades
will
close
and
the
lens
will
not
mount.
If
this
happens.
realign
the
pins
with
the
red
dots
on
the
reor
of
the
lens
barrel.
4.
Tighten
the
locking
collar
With
the
lens
seated
in
its
mount.
turn
the
lens
locking
collar
in
a
clockwise
position
(with
the
camera
facing
you)
until
it
stops.
(about
30°)
Since
the
shutter
has
already
been
wound.
you
are
now
ready
to
shoot.
Be
sure
to
unlock
before
releasing
the
shutter
button
