5 Connecting your 900N Power Amplifier
Connect your 900N, as the example in Figure 2 illustrates:
1. Connect an unbalanced stereo audio source (for example, an unbalanced
stereo audio player) to the LEFT and RIGHT INPUT RCA connectors
1
.
2. Connect the SPKR OUT terminal block connector to a pair of loudspeakers,
by connecting the left loudspeaker to the “L+” and the “L-” terminal block
connectors, and the right loudspeaker to the “R+” and the “R-” terminal
block connectors. Do not ground the loudspeakers.
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in this illustration).
4. Adjust the volume by turning the volume control knob.

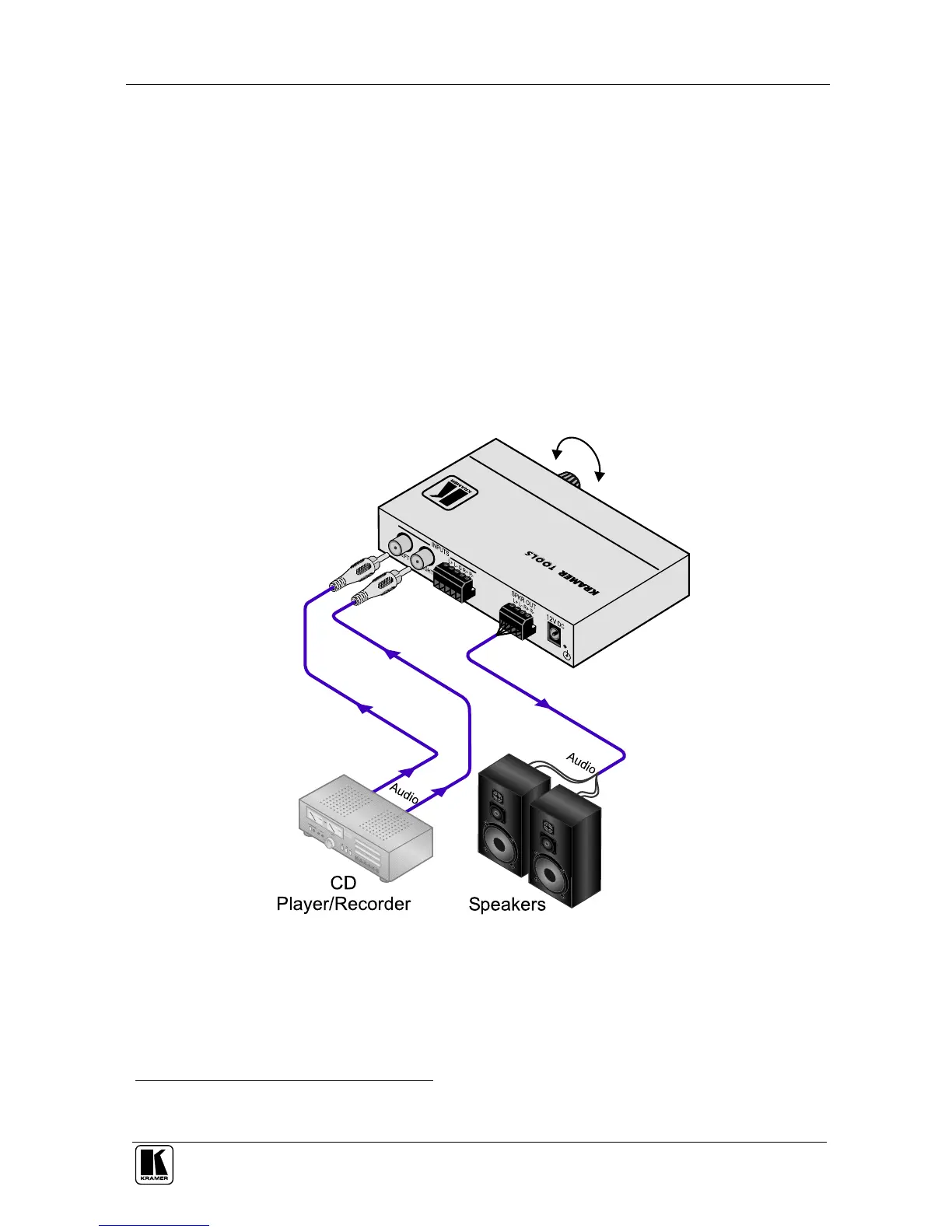

Figure 2: Connecting the 900N Power Amplifier
1 Or alternatively, connect the balanced stereo audio source to the left (L+ L-) and right (R+ R-) INPUT terminal block
connectors
