Kramer Galil 8-CO User Manual

Galil 8-CO - Installing the Open-back Ceiling Speakers
7
7
5.3 Mounting the Open Back Ceiling Speakers
To mount the 2-way Open-back Ceiling speakers, do the following:
1. Position the mounting tabs (see Figure 3) inward.

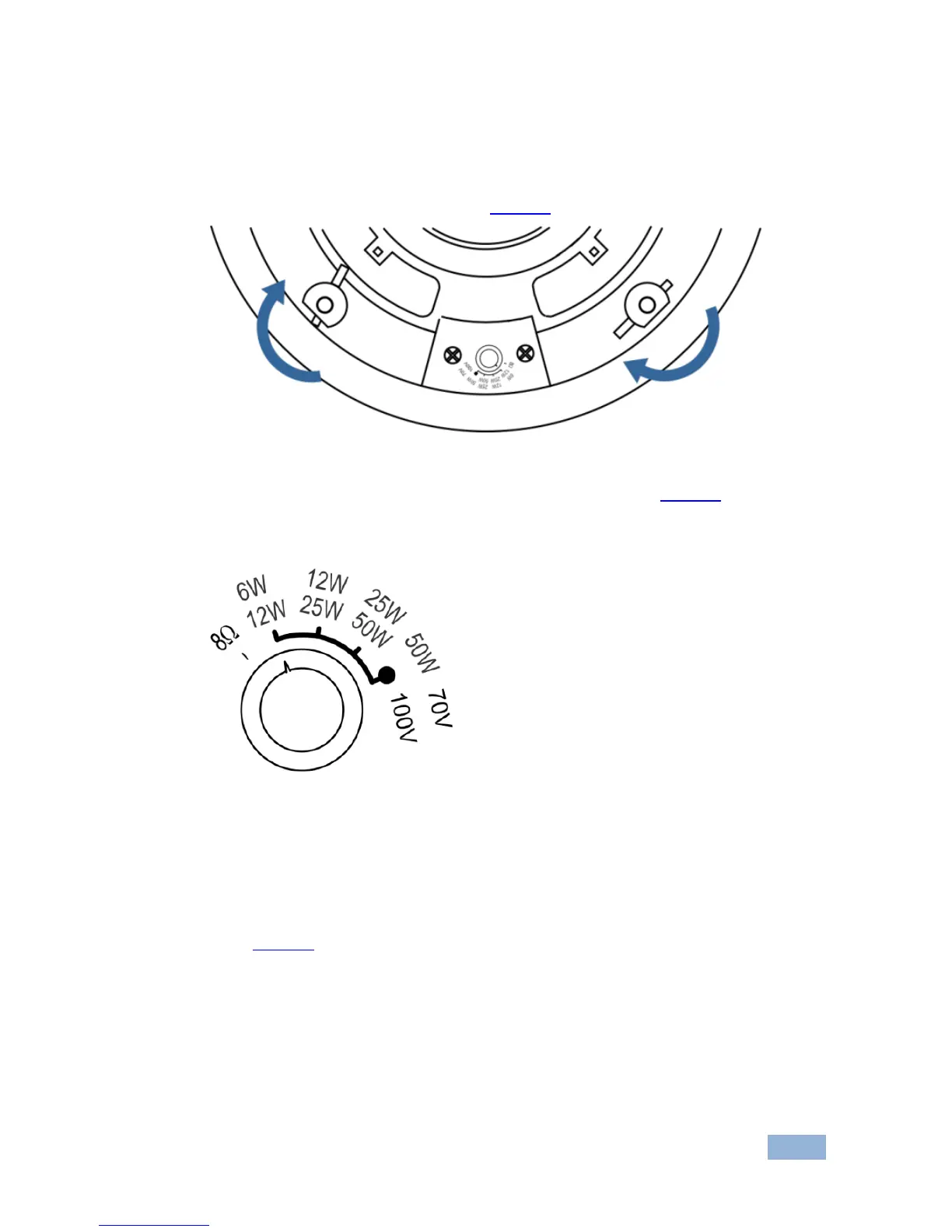

Figure 3: Position Mounting Tab
2. Adjust each speaker to the appropriate tap setting (see Figure 4).
Set the tap according to the power requirements of the speaker based on its location in
the room (for example, a speaker located in a remote corner would require additional
power)
Figure 4: Adjust Tap Selector
3. Insert the supplied screws into the screw openings from the front of the
speakers.
4. Connect the speaker wires to the speaker terminals.
Figure 5 shows a schematic diagram of the Closed-back ceiling speaker
Pinout:
