Your VM-2Hxl 1:2 HDMI Distributor
5
5
4 Your VM-2Hxl 1:2 HDMI Distributor

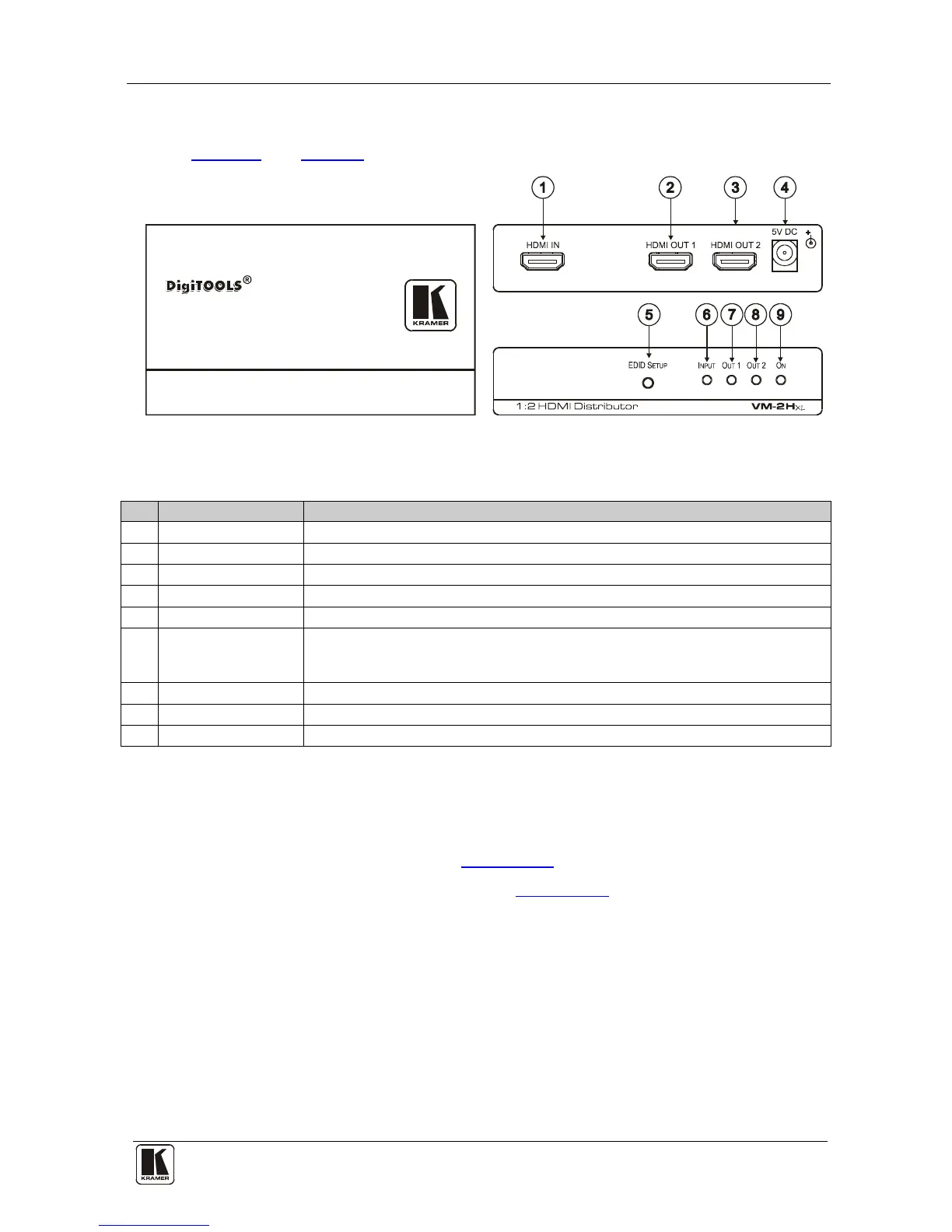

Figure 1 and Table 1 define the VM-2Hxl 1:2 HDMI Distributor:
Figure 1: VM-2Hxl 1:2 HDMI Distributor
Table 1: VM-2Hxl 1:2 HDMI Distributor Features
#
Feature
Function
1 HDMI IN Connects to the HDMI source
2 HDMI OUT1 Connects to the HDMI acceptor 1
3 HDMI OUT2 Connects to the HDMI acceptor 2
4 5V DC +5V DC connector for powering the unit
5 EDID SETUP Button Press for more than 3 seconds to acquire the EDID information from the display
6 INPUT LED Flashes when the stored EDID does not match the display device EDID;
illuminates when the EDID corresponds to the display device and that HDMI
source is active
7 OUT1 LED Flashes during the EDID setup; illuminates when output 1 is connected
8 OUT2 LED Flashes during the EDID setup; illuminates when output 2 is connected
9 ON LED Illuminates when receiving power
5 Using the VM-2Hxl 1:2 HDMI Distributor
This section describes how to:
• Connect the VM-2Hxl (see
Section 5.1
• Use the EDID SETUP button (see
)
Section 5.2 )
