VP-420, VP-421 - Overview
5
3.1 Defining the VP-420 PC/HD Scaler
This section defines the VP-420.

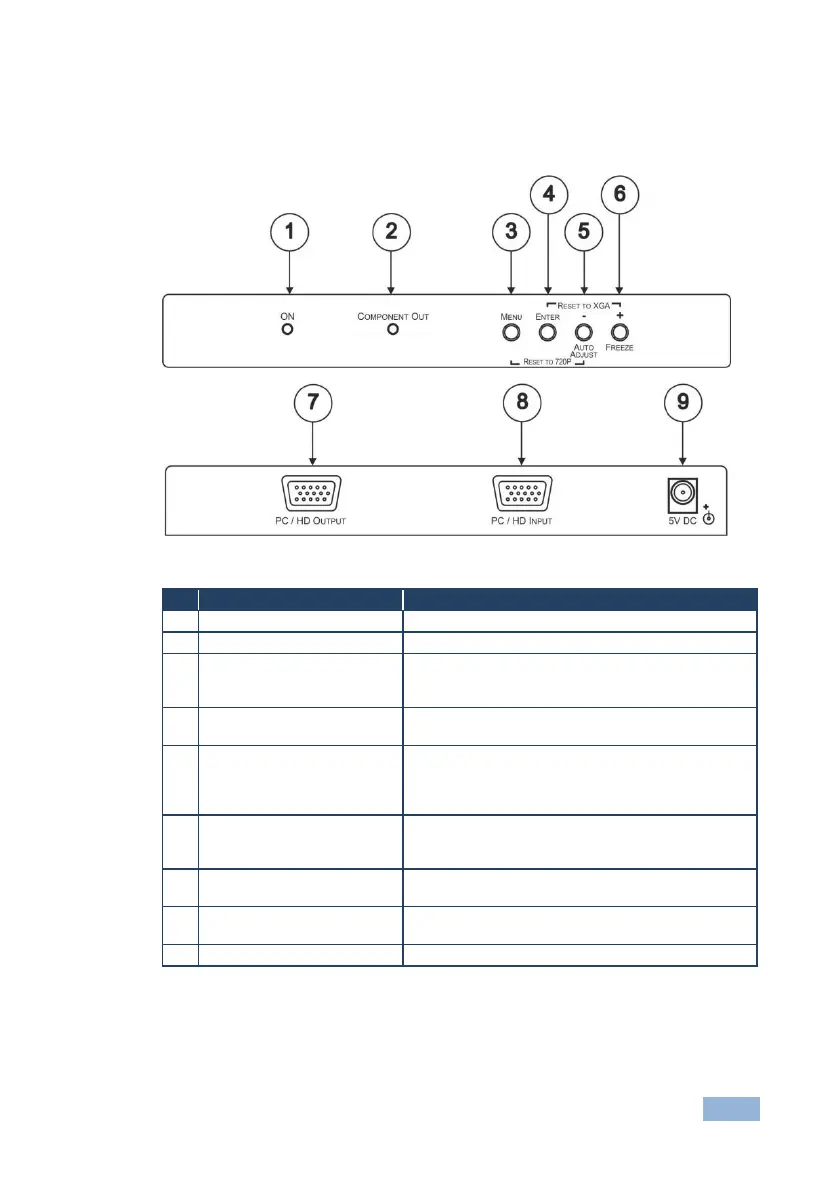

Figure 1: VP-420 PC/HD Scaler
#
Feature
Function
1
ON LED
Lights when the unit is powered on
2
COMPONENT OUT LED
Lights when component video is output
3
MENU button
Press to enter/escape the on-screen display (OSD)
menu.
Press together with the – button to reset to 720p
4
ENTER button
In OSD, press to choose the highlighted menu item.
Press together with the + button to reset to XGA
5
– /AUTO ADJUST button
In OSD, press to move backward through the list or to
decrement the parameter value. When not in OSD,
press to automatically adjust the picture to fit the
display
6
+/FREEZE button
In OSD, press to move forward through the list or to
increment the parameter value. When not in OSD,
press to freeze the display
7
PC/HD OUTPUT 15-pin HD
connector
Connects to computer graphics or HDTV acceptor
8
PC/HD INPUT 15-pin HD
connector
Connects to computer graphics or HDTV source
9
5V DC
+5V DC connector for powering the unit
