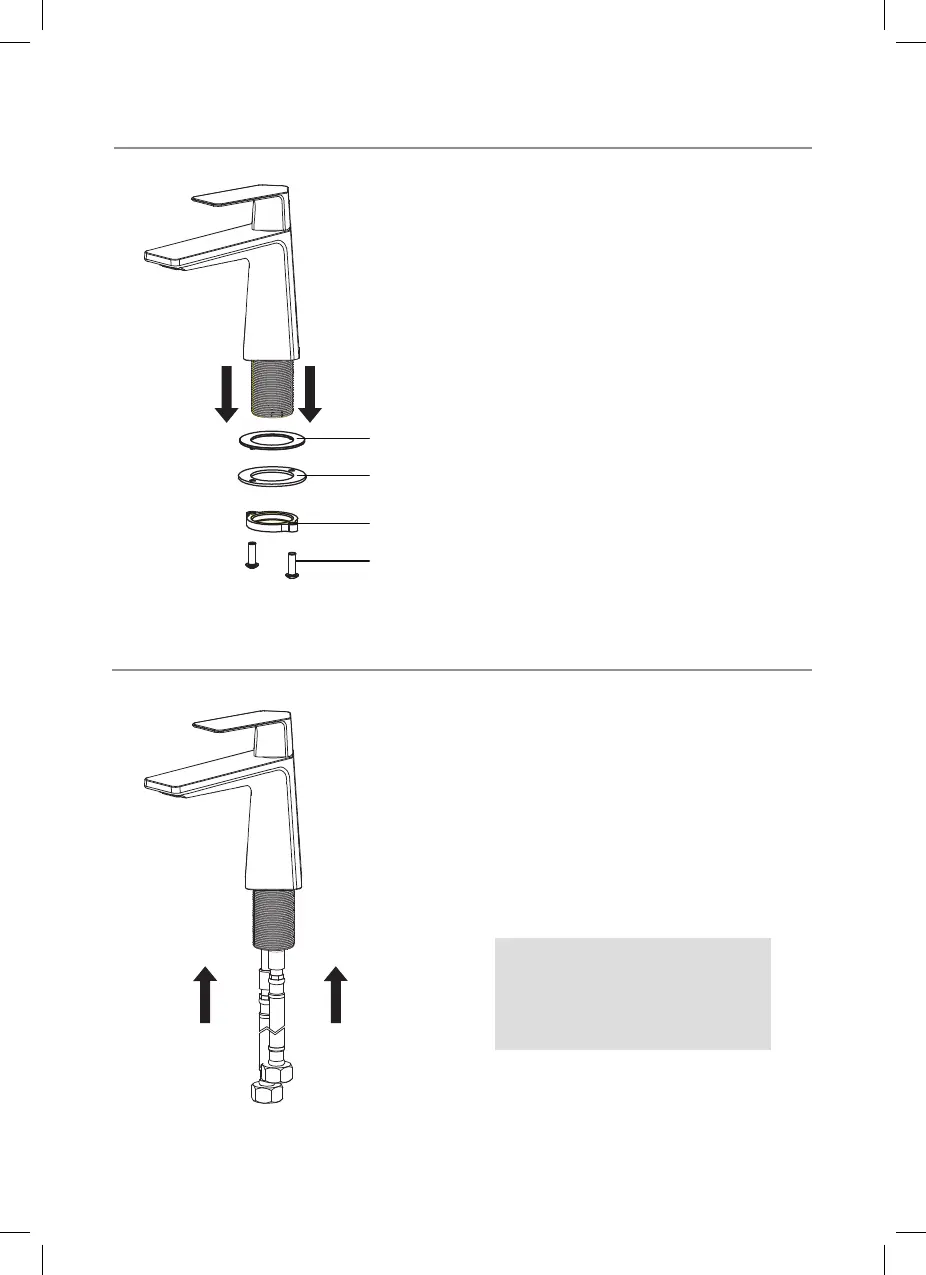

Step1: Remove mounting hardware
Remove the mounting screws
(8D), mounting nut (8C), metal
washer (8B), and rubber washer
(8A) from the mounting pipe
Step 2: Install hot & cold waterlines
Place faucet on a soft cloth,
spout facing up. Connect the
waterlines to the base of the
faucet (HAND-TIGHTEN ONLY)
(A) Hot side left
(B) Cold side right
NOTE: Make sure O-rings are
installed on both ends of the hot
& cold waterlines
Step 1 Step 2 Step 3
Step5
Step6
Step4
8A
8B
8C
8D
8A
8B
8C
8D
16
17
18
15
14
13
6
19
20
21
28
22
25
26
27
24
23
9
10
Step 1 Step 2 Step 3
Step5
Step6
Step4
8A
8B
8C
8D
8A
8B
8C
8D
16
17
18
15
14
13
6
19
20
21
28
22
25
26
27
24
23
9
10
