Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
2
3
10
9
11
12
13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
4
5
7
6
8
4
5
6
7
8
Ø1 3/8”~
Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10
11
Close
Open
Left
Hot Water
Push
25˚
90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12
13
2
3
4
5
6
7
8
1. Spray Head
2. Check Valve
3. Spray Hose
4. Hose Guide
5. Plastic Clip
6. Handle Button
7. Set Screw
8. Metal Handle
9. Cartridge Cover
10. Locking Nut
11. Washer
12. Cartridge
13. Cartridge Housing
14. Rubber O-Ring
15. Deck Plate
16. Base Plate
17. Rubber Washer
18. Metal Washer
19. Mounting Nut
20. Mounting Screws
21. Protective Sleeve
22. Faucet Extender
23. Weight
24. Hot & Cold Waterlines
25. Aerator Key
& Hex Wrench
26. Washer
27. Check Valve
28. Quick Connector

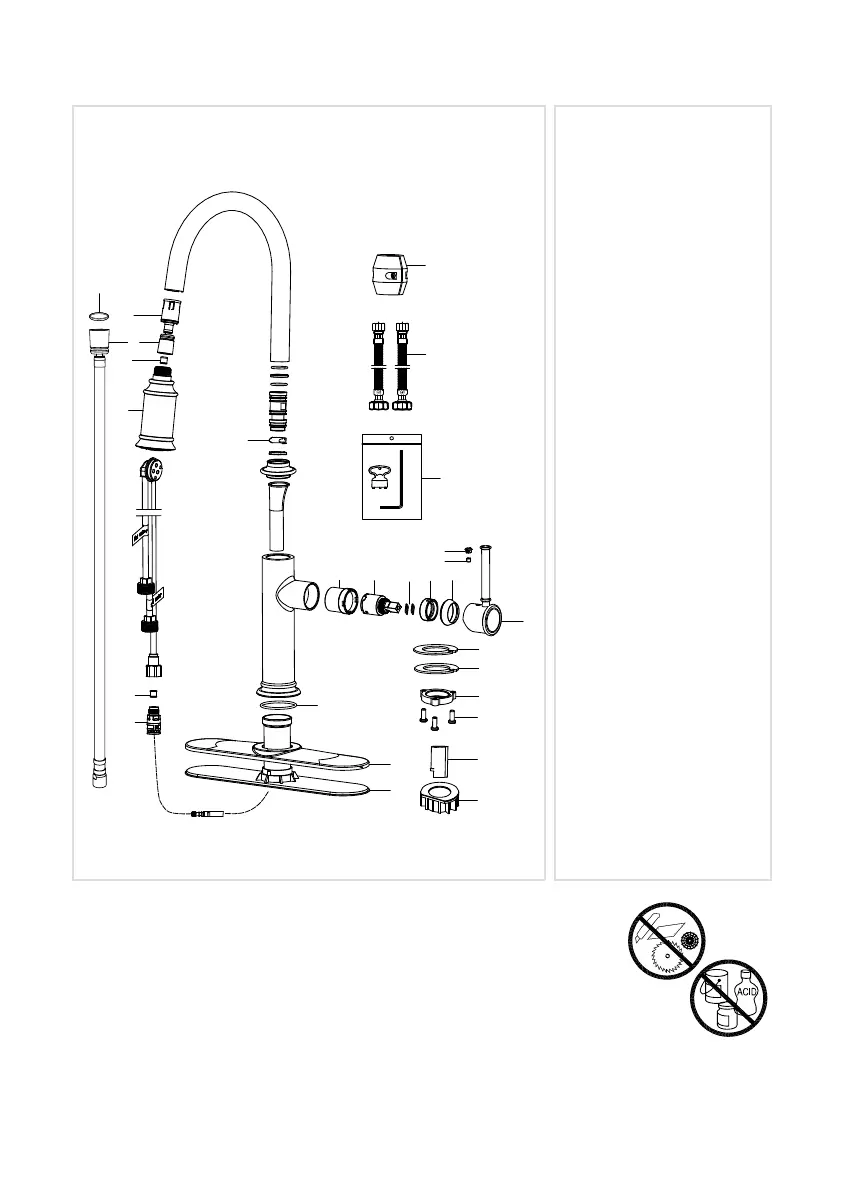

Replacement Parts
4
2
3
1
27
28
5
15
16
17
18
19
20
21
22
23
24
25
26
14
6
7
9
8
10
11
1213
