Kraus Mateo KPF-2620 User Manual

5

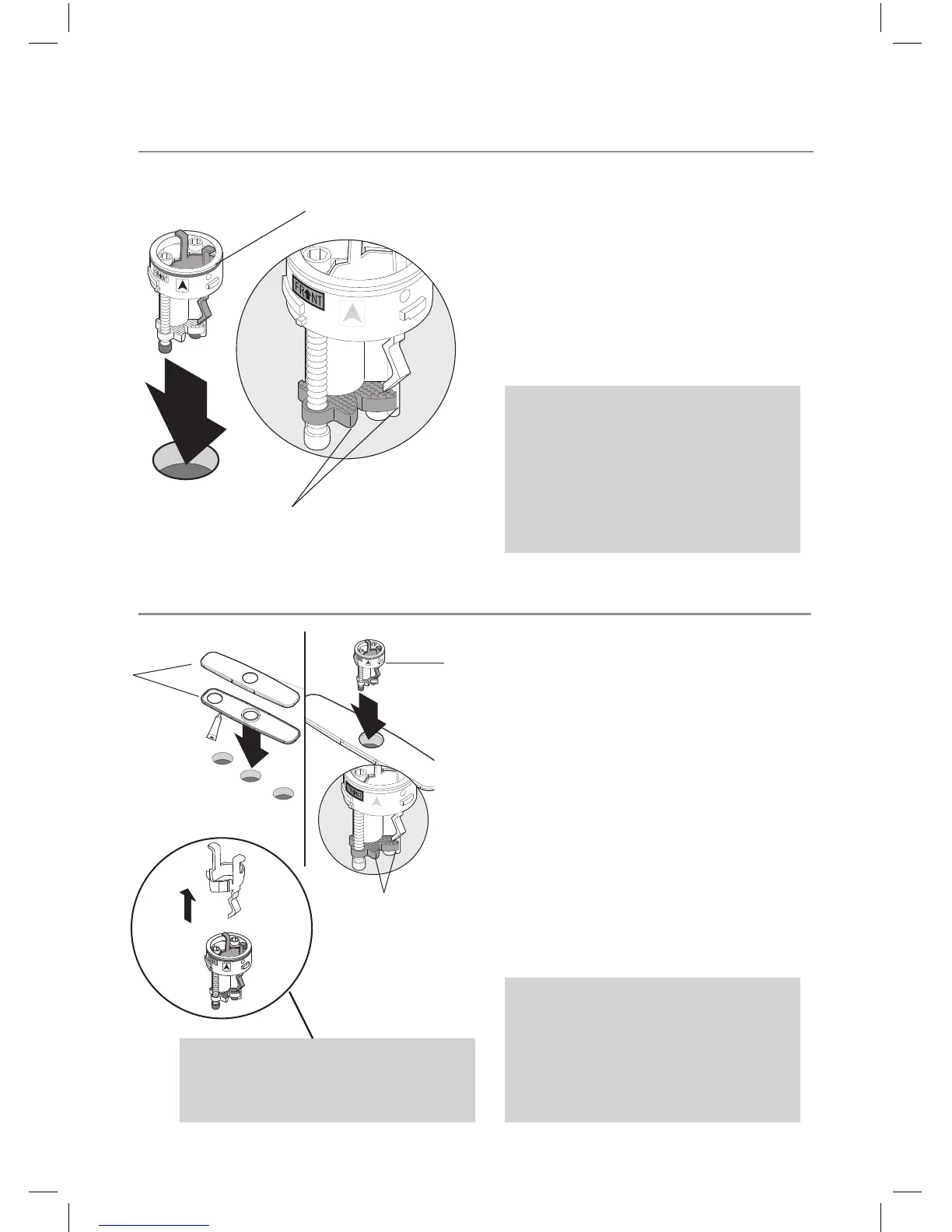

Step 1A: Install base without deck & putty plate
Insert base (D) into sink or
countertop with “FR↑NT” facing
forward. Tighten screws on base
(D) with 4mm hex wrench (J)
until base is secure on sink or
countertop
Step 1B: Install base with deck & putty plate
Place a bead of clear silicone
sealant (not included) around the
edge of the putty plate (C). Secure
deck & putty plate (C) on sink or
countertop. Insert base (D) into
hole of deck & putty plate (C) with
“FR↑NT” facing forward. Tighten
screws on base (D) with 4mm hex
wrench (J) until base is secure on
deck & putty plate (C)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A
1B
2
3
4
5
6
7
G
G
E
E
F
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
C
D
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A
1B
2
3
4
5
6
7
G
G
E
E
F
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
C
D
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
Installer Tip: Rotate the two
half-moon shaped locking
nuts inward before inserting
base (D) into deck plate (C)
Installer Tip: Rotate the
two half-moon shaped
locking nuts inward before
inserting base (D) into sink or
countertop
Please Note: After base (D) is
secure, remove clip

Kraus Mateo KPF-2620 Specifications

General

Brand	Kraus
Model	Mateo KPF-2620
Category	Kitchen & Bath Fixtures
Language	English
