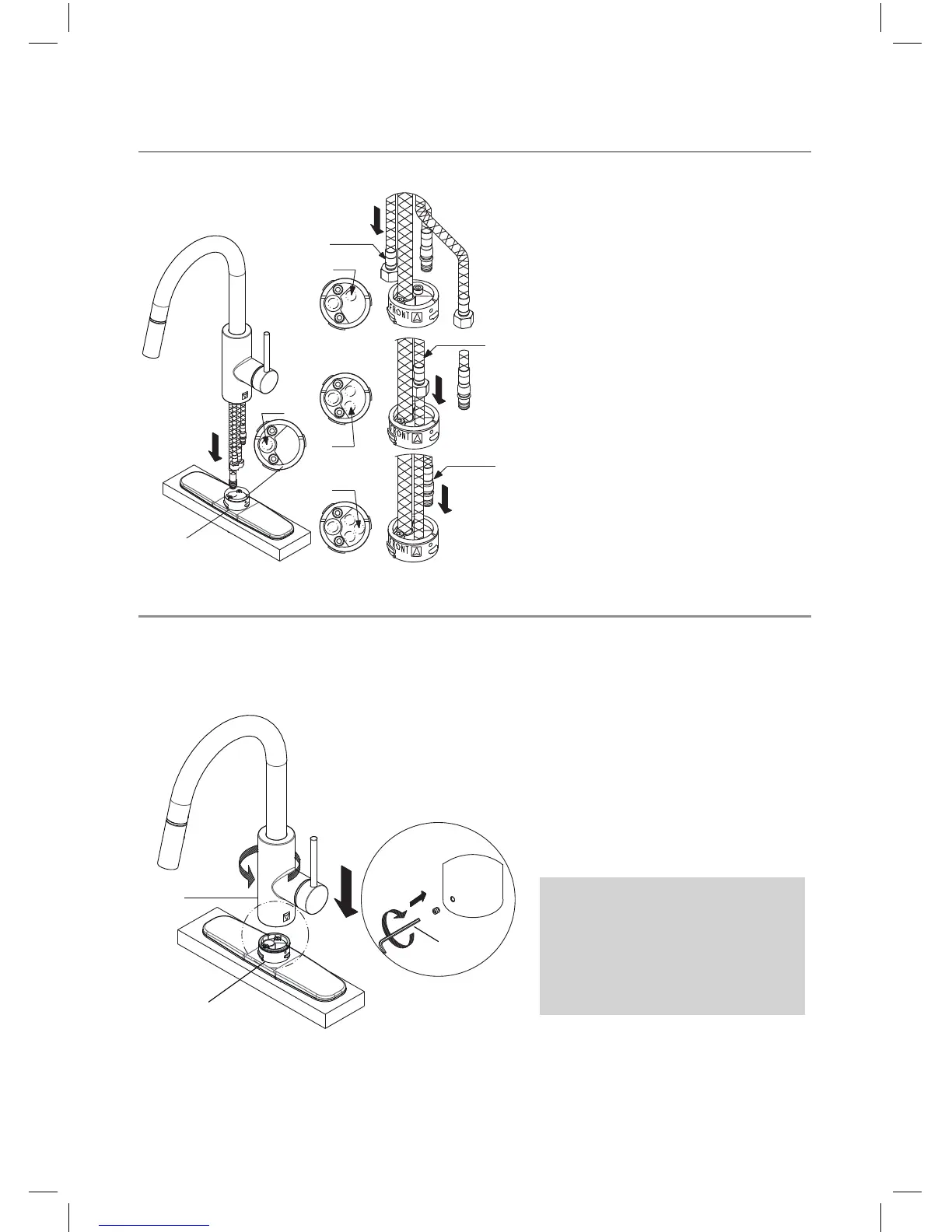

Step 2: Install faucet
Step 3: Secure faucet
Remove Quick Connect (I)
from spray hose (E). Insert
spray hose (E) into small hole
of base (D). Insert hot & cold
waterlines and supply hose
(F), one by one, in large hole
of base
Align arrow on faucet body (B)
with arrow on base (D). Attach
faucet body (B) to base (D) and
turn counter-clockwise. Secure
faucet body (B) by tightening
the set screw with 2.5mm hex
wrench (J)
D
G
G
G
G
G
B
D
J
F
F
F
I
I
E
I
F
E
G
Hot
Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
D
G
G
G
G
G
B
D
J
F
F
F
I
I
E
I
F
E
G
Hot
Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
Installer Tip: Please loosen
set screw from faucet
body (B) prior to securing
to base (D)
