Kraus Mateo KPF-2620 - Plumbing Connection Steps; Step 4: Connect waterlines to main valve; Step 5: Connect quick connect

7

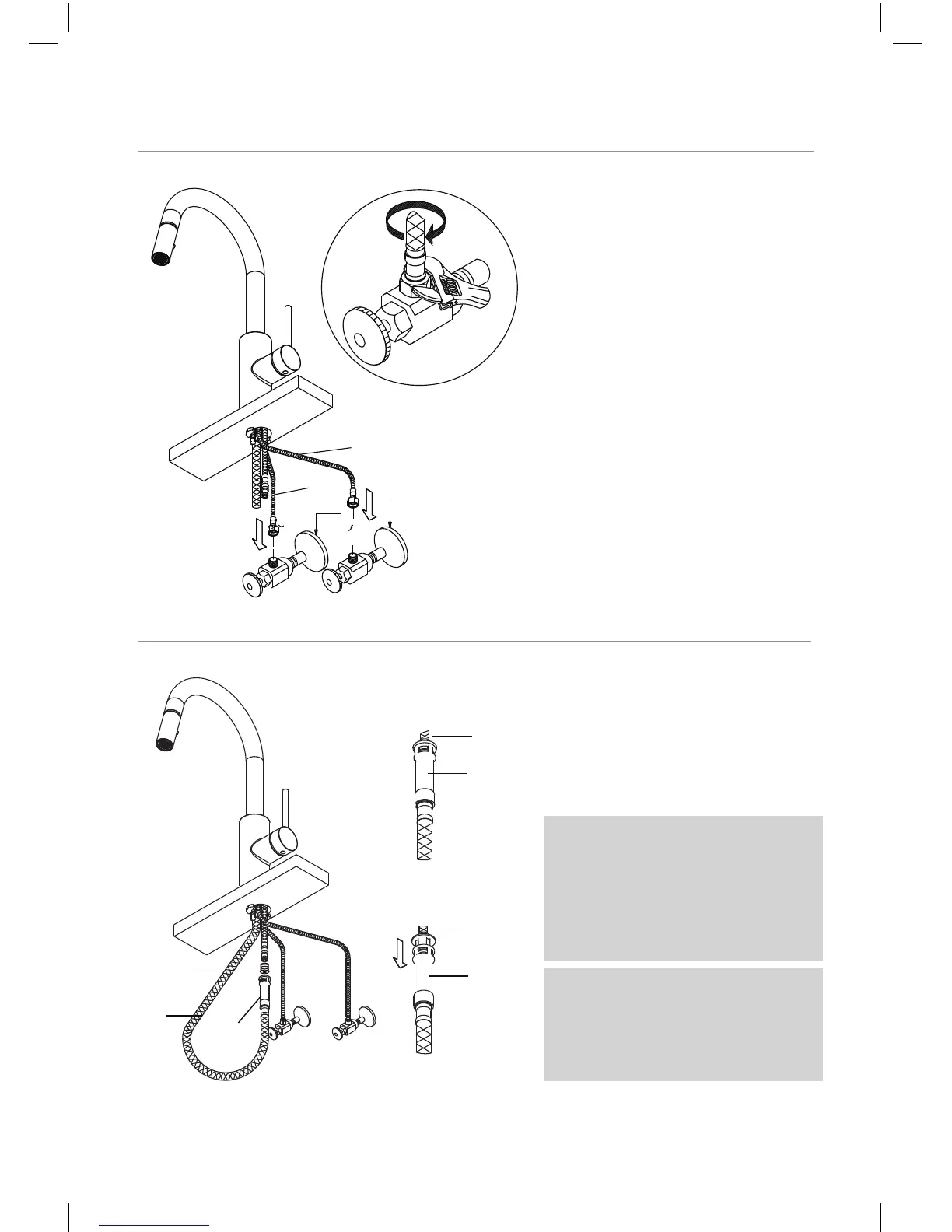

Step 4: Connect waterlines to main valve
Step 5: Connect quick connect
Thread hot & cold waterlines
(G) onto angle stops. Tighten
with adjustable wrench until
snug. Turn on the angle stops
and check for leaks (DO NOT
TURN FAUCET ON)
Attach Quick Connect (I) to
spray hose (E). Attach the other
end onto the supply hose (F)
until you hear a click
Installer Tip: Tug on the
spray hose (E) moderately to
ensure connection is secure
Installer Tip: Please remove
rubber cap from supply
hose (F) prior to installing
quick connect (I)
