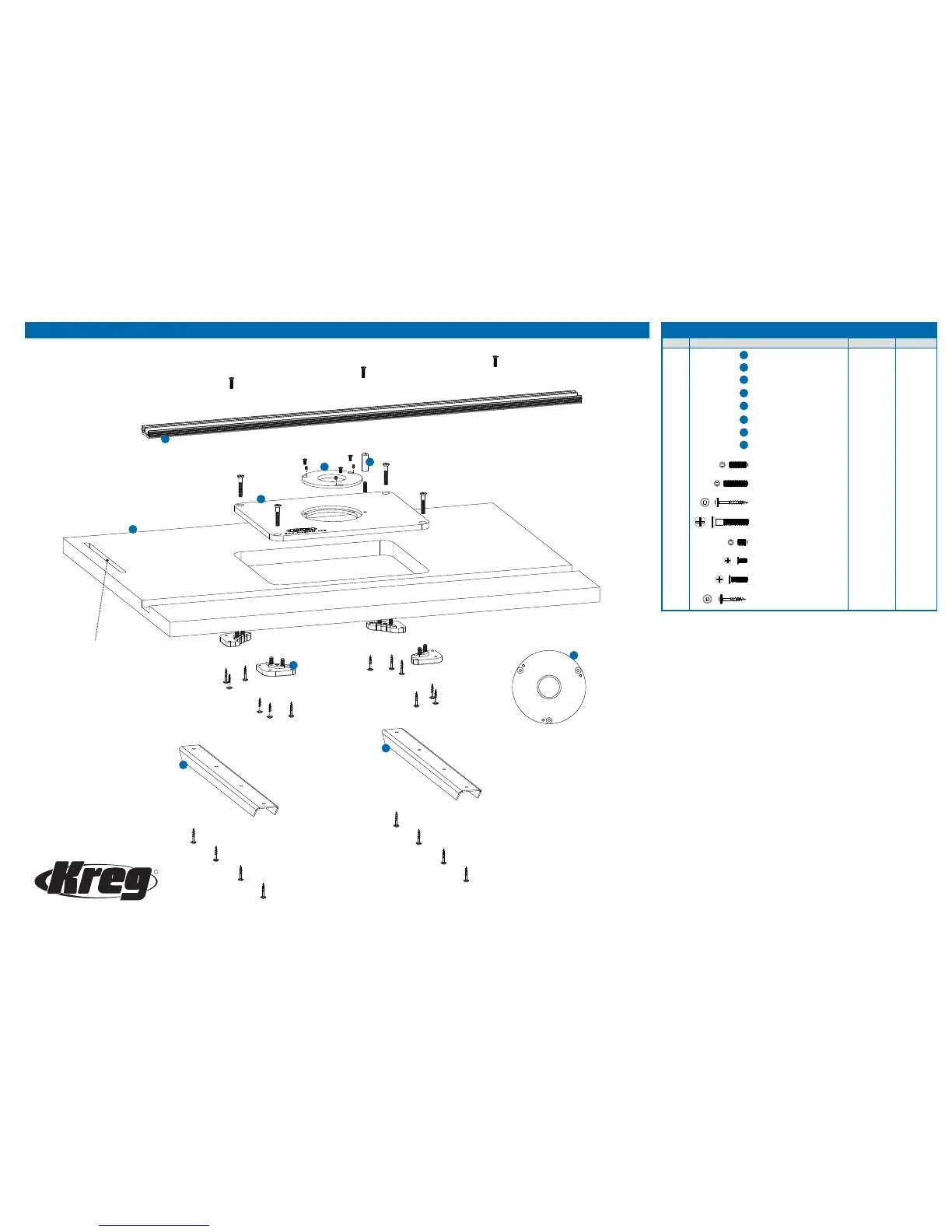

Kreg PRS1020 - Precision Router Table Top Exploded Parts Diagram

1 Phenolic Insert Plate RT10101 1
2 Table Top RT10102 1
3 T-Miter Track RT10103 1
4 2” Reducing Ring RT10107 1
5 1-13/64” Reducing Ring RT10106 1
6 Brass Starting Pin RT10108 1
7 Support Strut RT10171 2
8 Insert Plate Leveler RT10100 4
9 1/4-20 x 3/4” Set Screw DK1522 1
10 1/4-20 x 1-1/2” Set Screw RT10111 8
11 1-1/4 Coarse Screw SML-C125 12
12 1/4-20 x 1-3/4” Flat Head MS RT10112 4
13 8-32 x 1/4” Set Screw RT10110 6
14 8-32 x 5/16” Flat Head MS RT10109 3
15 10-32 x 3/4” Flat Head MS DK1547 3
16 3/4” Coarse Screw RT10192 8
Hardware
Item# Description Part# Quantity
2
Precision Router Table Top Exploded Parts Diagram
3.
4.
A
B
C
D
E
F
G
H
A
H
G
F
E
D
C
B
G
Slot to attach Kreg
Precision Router
Table Fence.
