KREMLIN Page 4 Manual : 573.001.212
4. INSTALLATION
The pumps are designed to be installed in a spray booth.

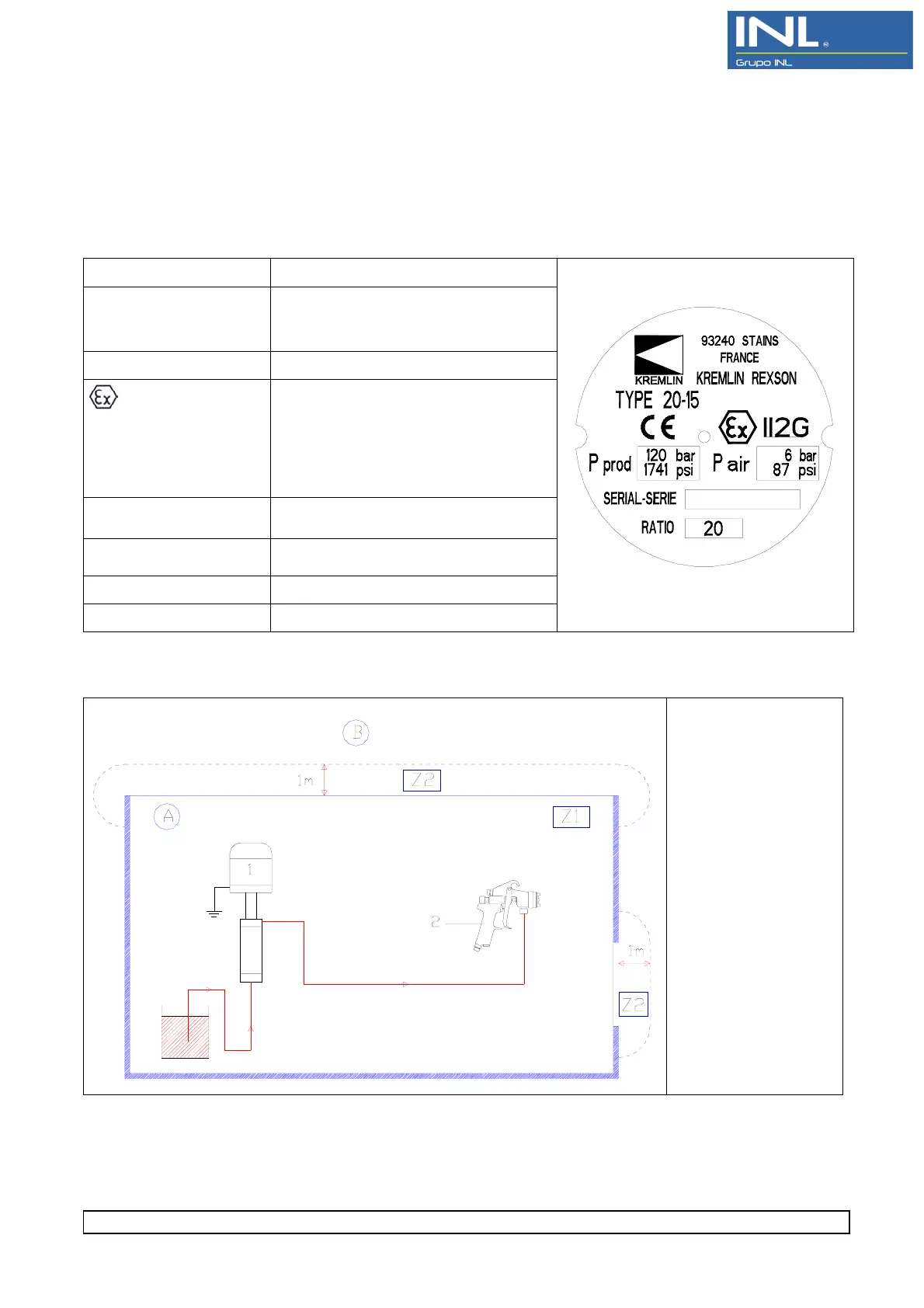

DESCRIPTION OF THE LABEL MARKING (EG : PUMP, MODEL 20-15)
Marking in accordance with the ATEX directive.
KREMLIN Logo
Manufacturer label
KREMLIN REXSON
93240 STAINS
FRANCE
Name and address of the manufacturer
TYPE 20-15
Pump model
II 2 G
II : group II 2 : class 2
Surface equipment meant to area
where explosive atmospheres due to
gas, vapours, mists or air mixtures with
dusts will probably appear.
G : gas
P prod 120 bar/1741 psi
Maximum fluid pressure at the pump
outlet
P air : 6 bar / 87 psi
Air supply maximum pressure of the
pump motor
N° Serie /Serial Nb
Number given by KREMLIN REXSON
RATIO 20
Pump pressure ratio
INSTALLATION INSTRUCTIONS
A -
B -
1 -
2 -
Explosive area
zone 1 (Z1)
or zone 2 (Z2) :
spray booth
Non explosive
zone
Pump
Spray gun
To Next Page
