Figure 3

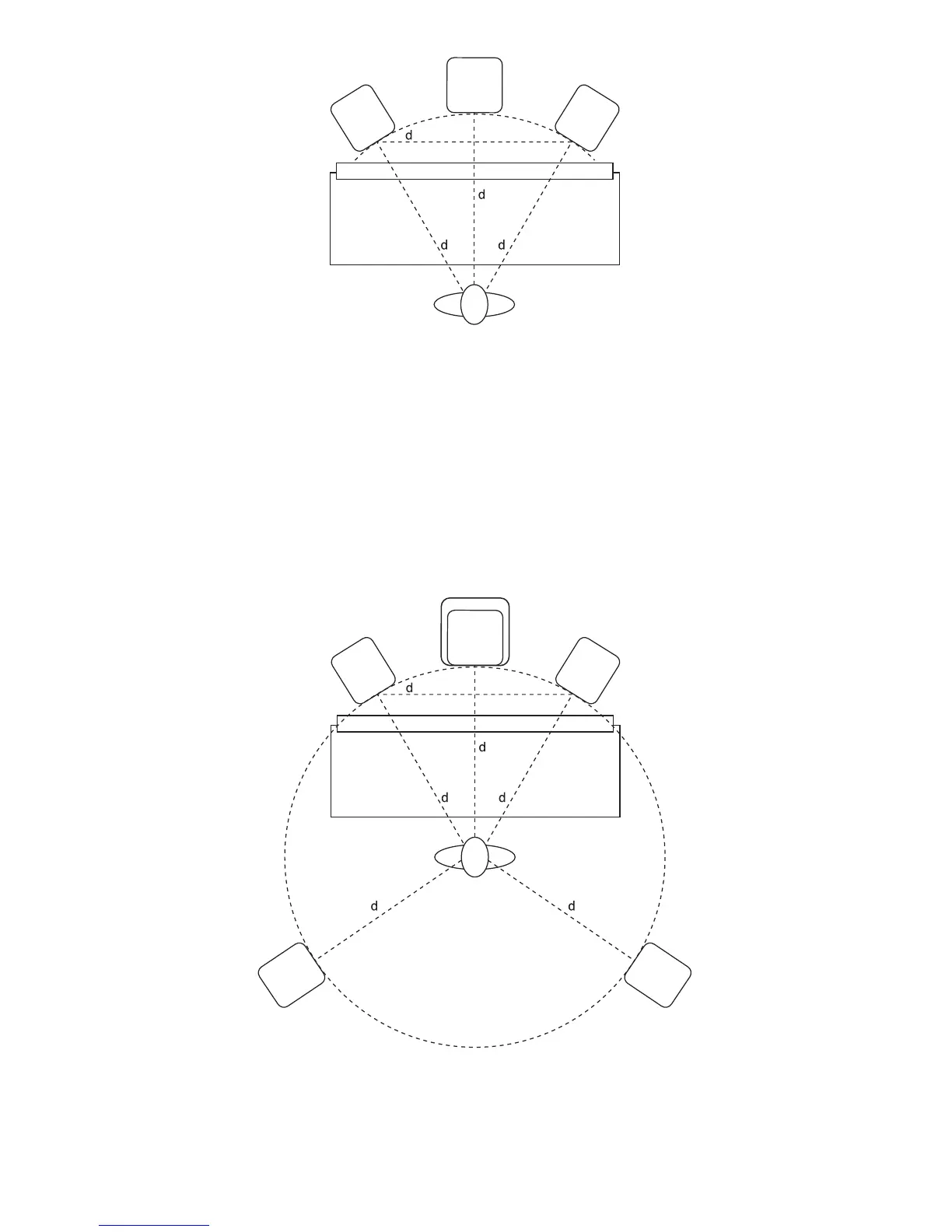

5.1 Channel Surround Sound Setup
Begin by placing the Left and Right front channels 30 degrees from the Center channel and
equidistant to the listening position (Figure 4). The Left Surround (rear) and Right Surround
(rear) channels should be placed 110 degrees from the Center channel. Their location
should also be equidistant from the listening position. The subwoofer (Low Frequency
Effects) channel is most effective when situated directly below the Center channel (as
shown in Figure 4). If this is not possible, place the subwoofer just to the right or left side
and below the Center channel. Ensure that the woofers are above the height of the
console.
Figure 4
10
