The Series 400 Terminal and Its Parts
Series 400 Terminal Maintenance and Troubleshooting Guide 1-7
Token Ring Board
You can install an optional Token Ring board in the Series 400 terminal. This
board provides direct connection from Series 400 terminals to the AS/400 Token

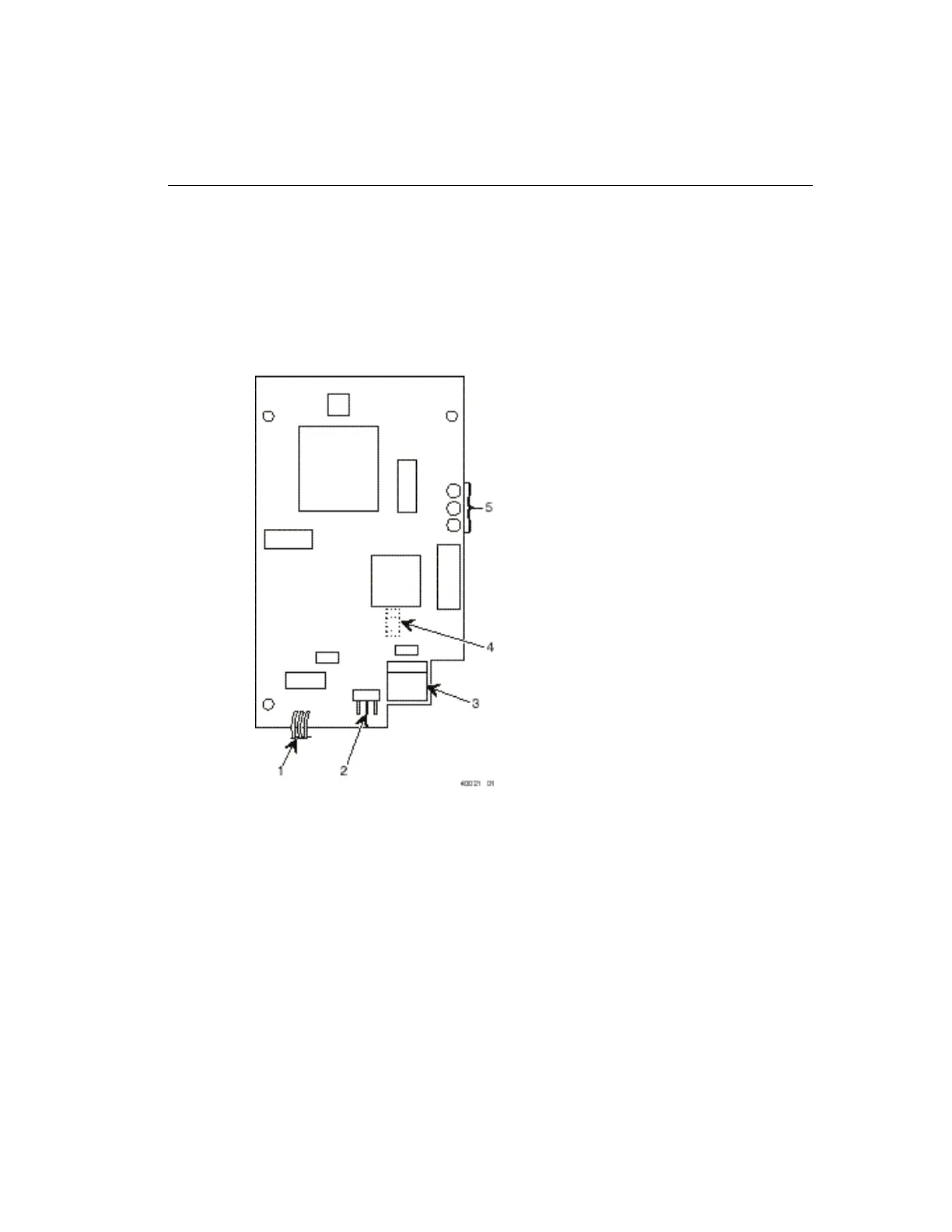

Ring network. The following figure illustrates the Token Ring board:
Legend
1 18-36 Volt supply cable (P6)
2 DB9 output (P1)
3 Twisted pair adapter output (P2)
4 Mainboard connector (P3)
5 Status LEDs
