Pre-Installation

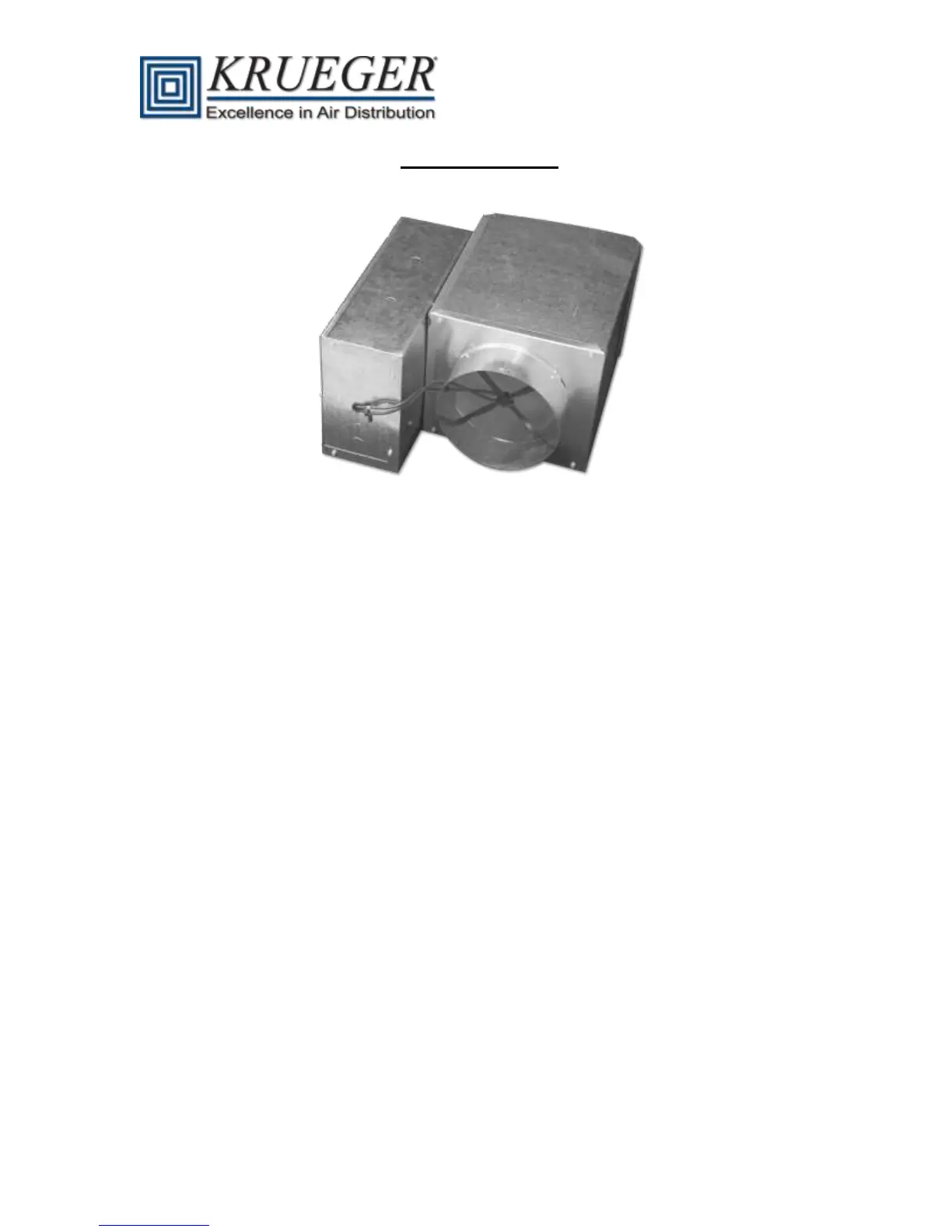

Figure 1 - Basic LMHS Unit
General
The LMHS, RVE, and SVE single duct terminals are available with factory installed Pneumatic,
Analog electronic, and DDC control options. Figure 1 shows a basic LMHS unit.
Shipping
Inspect for damage upon receipt. Shipping damage claims should be filed with shipper at time of
delivery. LMHS units with basic configuration or with hot water coils, RVE units, and SVE units are
packaged into boxes and are stacked onto pallets. LMHS units with attenuation or electric heat are
stacked directly onto pallets. In both instances, pallets should not be stacked on top of one another.
Storage and Handling
Store in a clean, dry, and covered location. Do not stack pallets. When unpacking units, care should
be taken that the inlet collars and externally mounted components do not become damaged. Do not
lift units using collars, inlet flow sensors, or externally mounted components as handles. Do not lay
uncrated units on end or sides. Do not stack uncrated units over 6 ft. high. Do not handle control
boxes by tubing connections or other external attachments.
Unit Weights
Please see Table 5 in Appendix A for unit weights.
Initial Inspection
Once items have been removed from the carton, check carefully for damage to duct connections,
inlet probes or controls. File any damage claims immediately with the transportation agency and
notify the factory.
