Krüger & Matz KM2008 User Manual

ENEN
Owner’s manualOwner’s manual
18 19
ANT
GPS
1
2
3
4
15
13
11
9
7
5
3
1
16
14
12
10
8
6
4
2

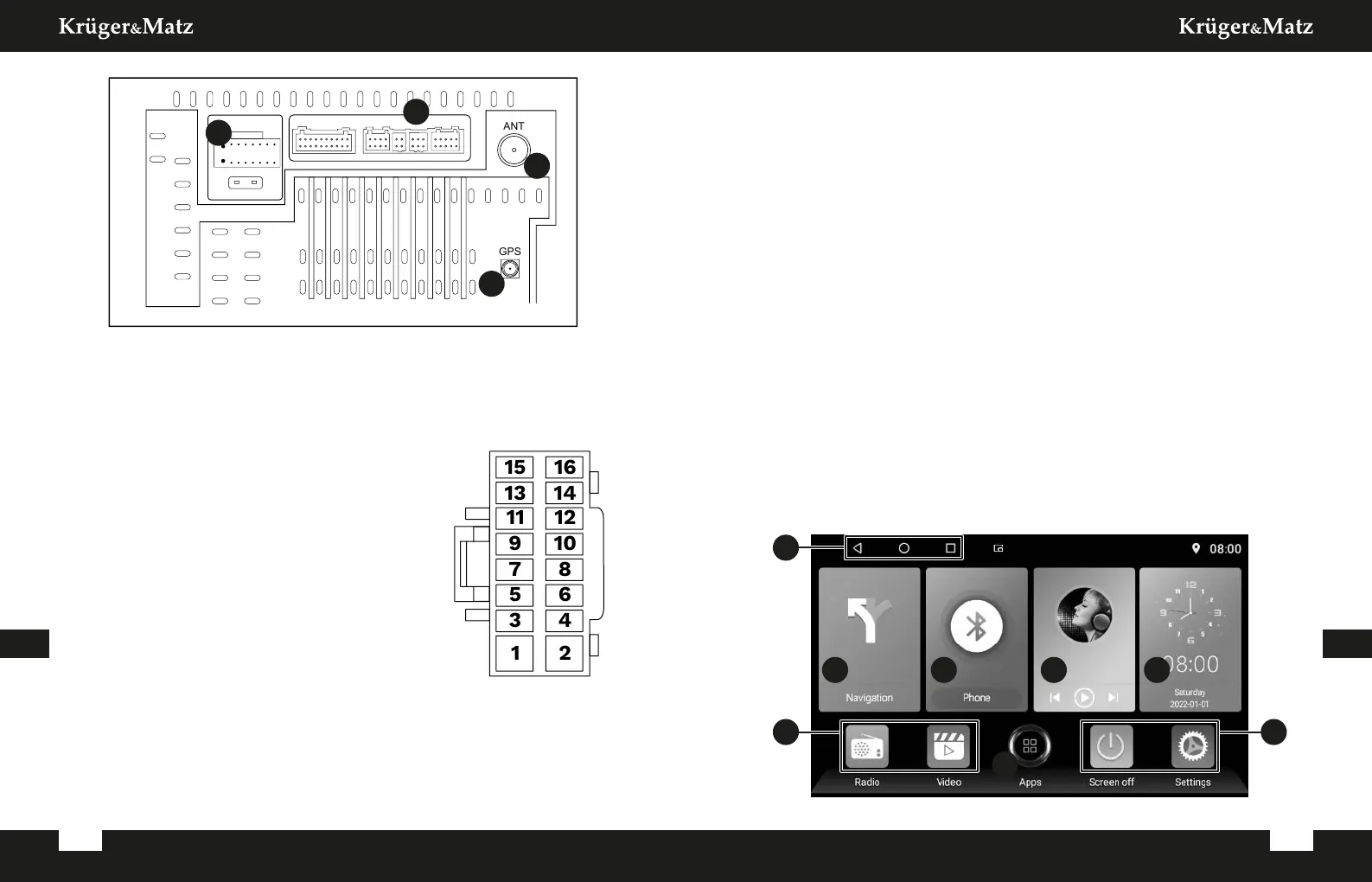

Accessories connector
• AUX IN R: right AUX input
• AUX IN L: left AUX input
• AUDIO OUT R: right audio output
• AUDIO OUT L: left audio output
• VIDEO OUT: video output
• CVBS-IN-1: video input 1
• CVBS-IN-2:video input 2
• SUB-OUT: subwoofer output
• MIC: microphone input
OPERATION
Main menu
1. Function buttons
2. Shortcut to navigation app
3. Phone pairing menu
4. Music player
5. Time settings shortcut
6. Shortcuts (to edit shortcuts, press and hold the shortcut
and move it, or move it to the trashcan to remove it)
7. Apps list
1
6 6
7
2 3 4 5
CONNECTION
Power connector
1. GND: grounding
2. B+: 12 V power supply
3. ACC: 12 V after ignition
4. ILL: backlight wire
5. Rear view camera (BACK)
6. KEY2: steering wheel control
7. KEY1: steering wheel control
8. ANT. POWER: antenna power
9. FR-: front right speaker -
10. RL-: rear left speaker -
11. FR+: front right speaker +
12. RL+: rear left speaker +
13. FL-: front left speaker -
14. RR+: rear right speaker +
15. FL+: front left speaker +
16. RR-: rear right speaker -

Krüger & Matz KM2008 Specifications

General

Brand	Krüger & Matz
Model	KM2008
Category	Car Receiver
Language	English
