KH2020F / KH2030F / KH2520F
INSTALLATION

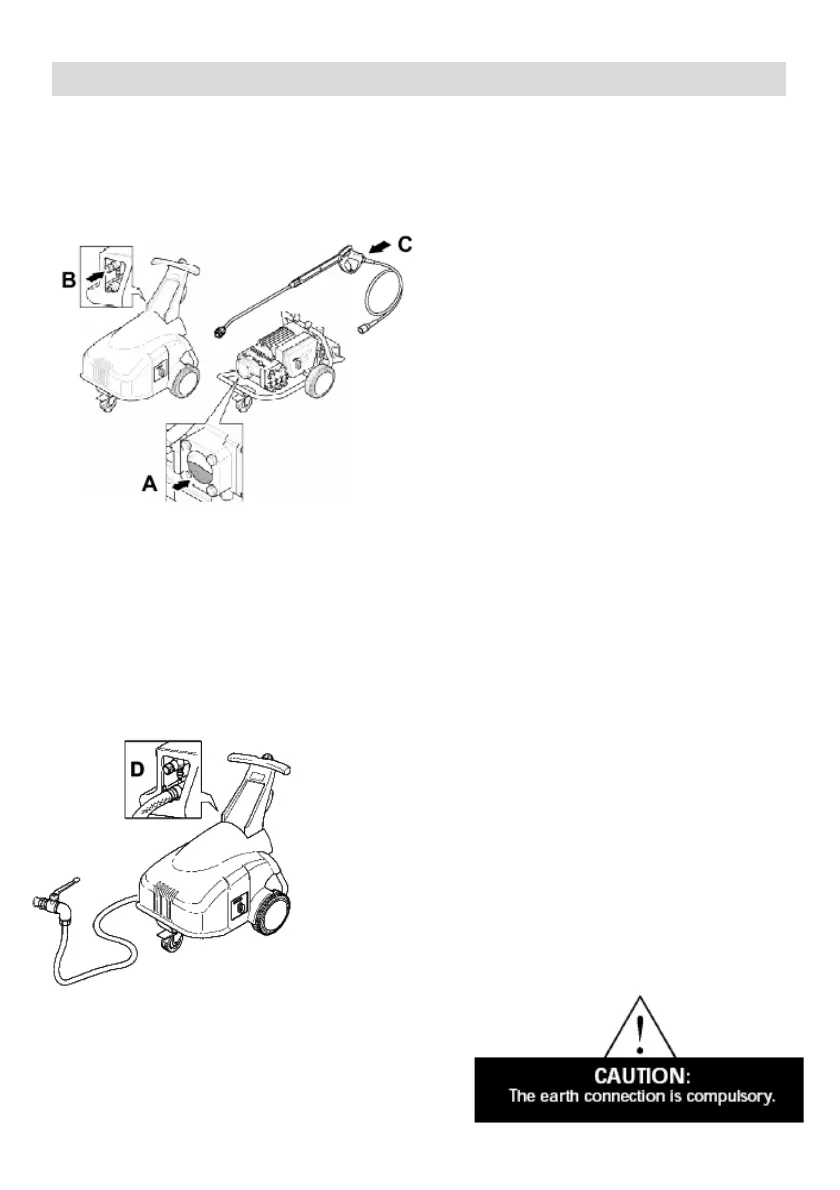

1) Check the oil level that must be always higher than the rod notch (A).
2) Connect the high pressure
hose to the outlet fitting (B),
tightening the ferrule completely
and the other end to the
automatic gun (C).
3) If the electric current characteristics (Volt/Hz) correspond to those
stated on the label fixed to the machine, you can insert the plug. The
use of extensions and loose plugs not to standards is prohibited. The
electrical system the machine is connected to must be made in
conformity with the laws in force in the Country of installation. It is
recommended to have a differential thermomagnetic switch with
sensitivity equal to 30 m A upstream from the power socket.
4) Connect the water supply hose (the
inner diameter must be not smaller than 14
mm) to the pump inlet fitting (D). Make
sure that the suction filter of the suction
fitting is always clean. The dirty filter
causes a bad water supply and
consequently a very bad pump operation
with the inevitable risk of a rapid wearing
out and breakage of the internal
mechanisms.
